220 Universal Mount Stainless Steel Weigh Module Kit

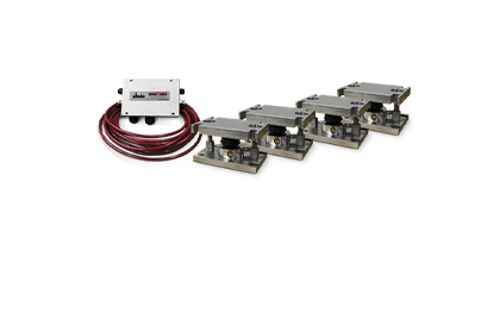

Complete Kit Includes
Three or four 220 stainless steel compression mounts with 220 stainless steel hermetically sealed compression disk load cells
One JB4SS NEMA Type 4X stainless steel signal trim junction box
25 ft of hostile environment EL147HE SURVIVOR® load cell cable
Standard Features
Capacities (per module): 5,000 to 30,000 kg
mV/V/ohm calibrated load cells eliminates the need for trimming
Stainless steel construction
Easy load cell replacement
Integral jacking/shipping bolts
Applications
Medium- to high-capacity tanks, bins and hoppers
Washdown or corrosive applications
Process control and batch weighing
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
Ideal for Hopper and Batch Weighing

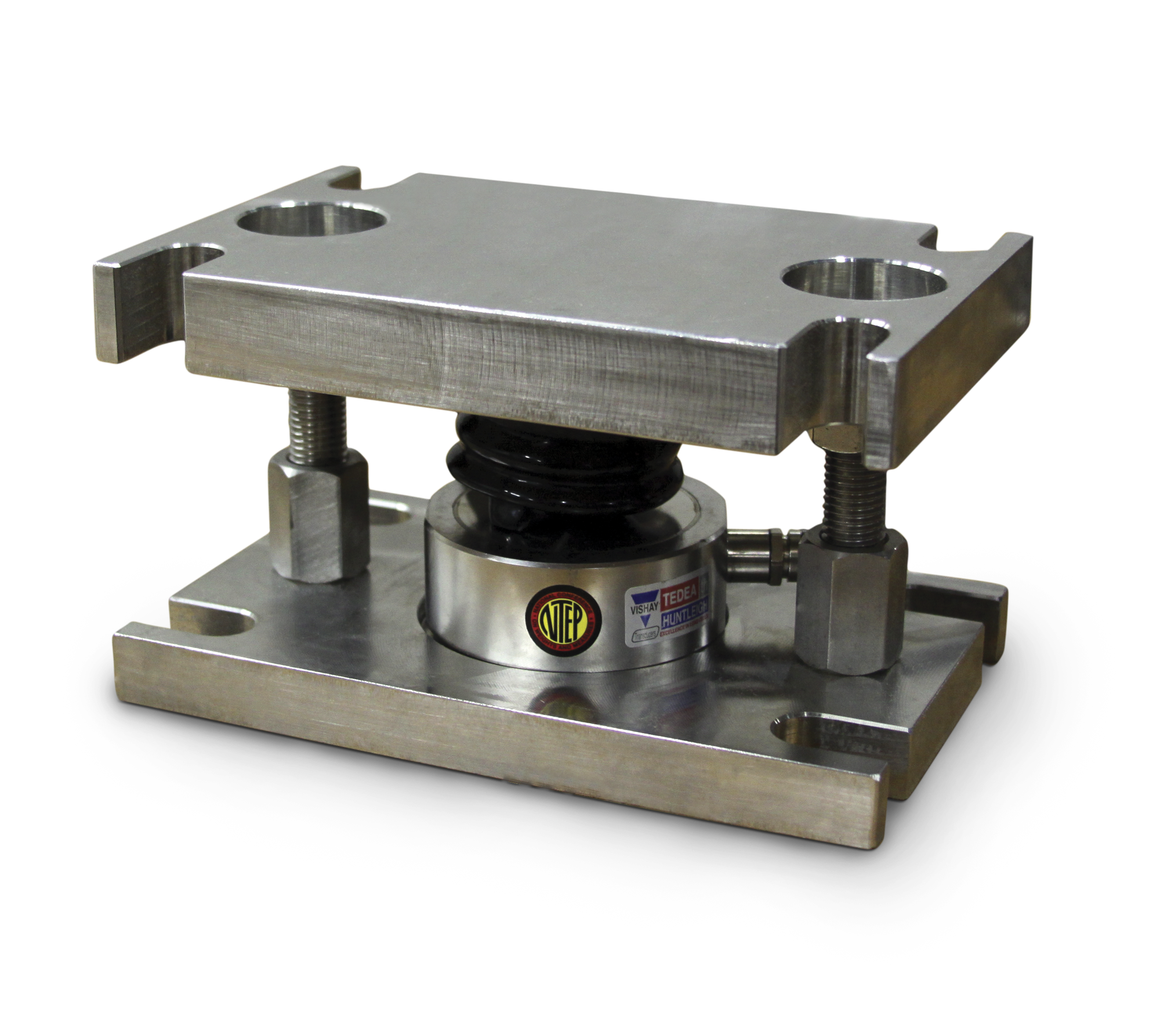

The 220 Universal Mount is designed to be used with the Vishay Tedea-Huntleigh Model 220 load cell. The mount incorporates built-in jacking bolts to prevent damage to the load cell during installation. Its stainless steel construction is designed to be used in the harshest of environments.

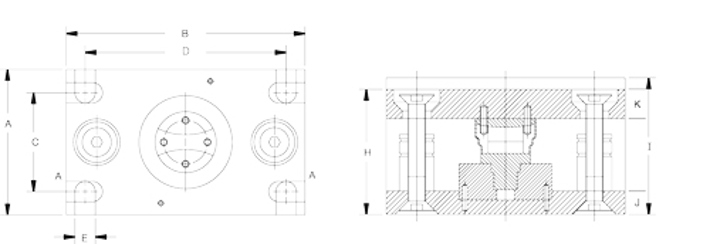

220 Universal Mount Dimensions
| Rated Capacity | A | B | C | D | E | H | I | J | K |
|---|---|---|---|---|---|---|---|---|---|
| kg/mm | |||||||||
| 5,000 to 10,000 | 127.0 | 203.0 | 90.0 | 170.0 | 18.0 | 107.0 |
Load cell replacement height: 118.0 |
19.1 | 25.4 |
| 20,000 to 30,000 | 152.0 | 245.0 | 115.0 | 208.0 | 24.0 | 148.0 | Load cell replacement height: 156.0 Operating height: 148.1 |
31.8 | 25.4 |
Resources/Downloads
Parts
3-Module Kit (Includes Load Cell)
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 66208 | Mount Kit,Universal 220 3ea 5000kg SST HS Compression Incl TH 220-5000kg and JB4SS and 25ft of EL147HE Cable |
List Price: $7,555.00 |
|
| 66209 | Mount Kit,Universal 220 3ea 10,000kg SST HS Compression Incl TH 220-10,000kg and JB4SS and 25ft of EL147HE Cable |
List Price: $7,555.00 |
|
| 66210 | Mount Kit,Universal 220 3ea 20,000kg SST HS Compression Incl TH 220-20,000kg and JB4SS and 25ft of EL147HE Cable |
List Price: $9,000.00 |
|
| 66211 | Mount Kit,Universal 220 3ea 30,000kg SST HS Compression Incl TH 220-30,000kg and JB4SS and 25ft of EL147HE Cable |
List Price: $9,000.00 |
