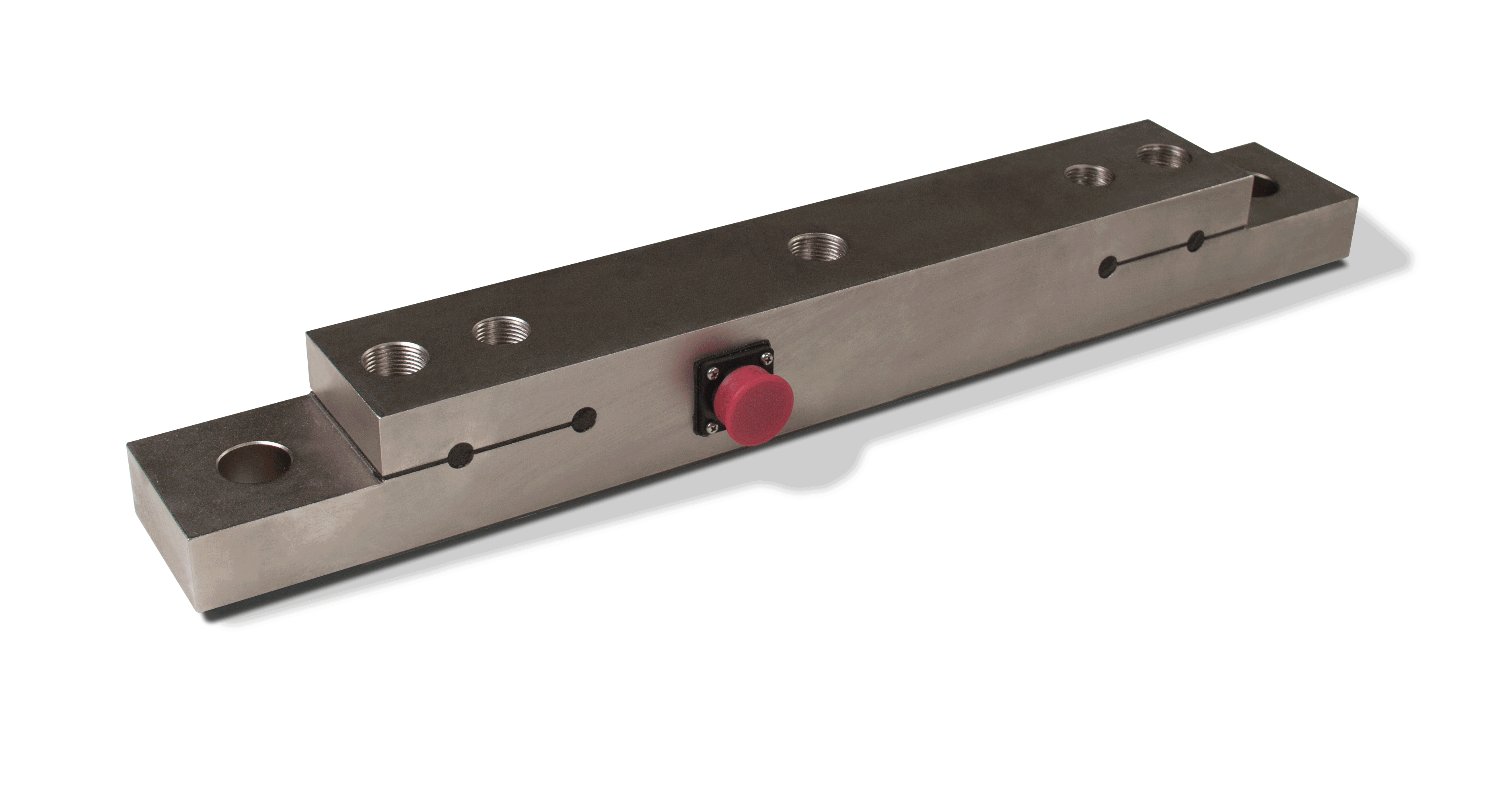

AX3040 Alloy Steel Load Cell

The AX3040 load cell is constructed of alloy steel, environmentally sealed and used in Rice Lake Weighing Systems' AX3040 axle scale.

WARNING: Cancer and Reproductive Harm California Proposition 65

Full Scale Output:
0.5 mV/V at 12,500 lb

Output Resistance:
350 ohm (nominal)

Input Resistance:
350 ohm (nominal)

Material/Finish:
Alloy steel

Temperature:
Operating:
14 to 104 °F (-10 to 40 °C)

Seal Type:
Environmentally sealed, IP66

Manufacturer Model Number:
8300420-10

Rated Excitation:
15 VDC

Nonlinearity:
±1.0% full scale

Insulation Resistance:
5,000 megohm at 50 VDC

Warranty:
One-year limited

Rated Capacity	A	B	C	D	E	F	G	H
lb/in
20,000	22.60	24.60	19.60	15.00	11.50	2.84	2.38	8.80

Resources/Downloads

Title	Download	Email
AX3040 Load Cell Catalog Page	Download	Email

Part #	Description	List Price	Cart/Quote
111766	Load Cell,PL9000-22 22.6 Inch Bolt On Alloy Steel Dynamic Capacity 20,000lb. IP66 Also used in AX3040 Axle Scale	List Price: $1,170.00	View

The AX3040 axle scale is easily portable, available in multiple lengths, and is ideal for monitoring vehicle weights in temporary sites.
