BenchMark® HD Heavy-duty Bench Scale
Heavy-duty mild steel base construction with 304 stainless steel cover
Polyurethane rubber leveling feet with stainless steel stems
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
Heavy-Duty Bench Scale
The BenchMark HD bench scale is ideal for heavy-duty industrial weighing. This NTEP Certified platform rises to the challenge of frequent heavy loads. The BenchMark HD scale base comes standard in 30 x 30 and 36 x 36 sizes with capacities of 250 to 500 pounds. Custom sizes and capacities are available.
BenchMark HD Specifications
|
Load Cell: Output Impedance: Maximum Overload: Overload Protection: |
Scale Frame: Scale Cover: Cable Length: |
Temperature: Warranty: Approvals: |

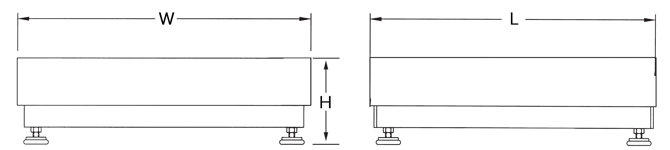

BenchMark HD Dimensions
| 30 × 30 in | |||
|---|---|---|---|
| H | 8.75 in | W | 30.00 in |
| L | 30.00 in | ||
| 36 × 36 in | |||
| H | 8.75 in | W | 36.00 in |
| L | 36.00 in | ||
| Note: 1 in = 25.4 mm | |||
Resources/Downloads
Articles
| Title | View | Category | Type | |
|---|---|---|---|---|
| Revolutionizing Precision Agriculture | View |  Email |
Indicators / Controllers|Floor Scales|Agriculture|Bench Scales | Application Story|Articles |
Parts
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 93414 | Scale,Benchmark HD 30x30 250lb Mild Steel with SST cover |
List Price: $2,230.00 |
|
| 93415 | Scale,Benchmark HD 30x30 500lb Mild Steel with SST cover |
List Price: $2,230.00 |
|
| 93416 | Scale,Benchmark HD 36x36 250lb Mild Steel with SST cover |
List Price: $2,700.00 |
|
| 93417 | Scale,Benchmark HD 36x36 500lb Mild Steel with SST cover |
List Price: $2,700.00 |
Options
| Part # | Description | List Price | Cart/Quote |
|---|
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
