EL146, 4-wire Load Cell Cable

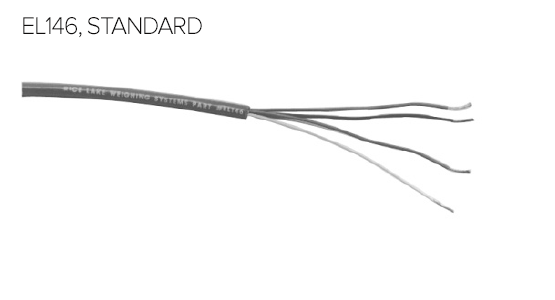

EL146 Standard Cable
4-wire load cell cable
20 AWG tinned copper wire stranded for flexibility
Braided shielding is encased in red PVC
All conductors are industry-standard color-coded
Diameter: 0.25 in
Use the four-wire cable for repairing or extending existing cable
Temperature rating: -22 to 126 °F (-30 to 80 °C)

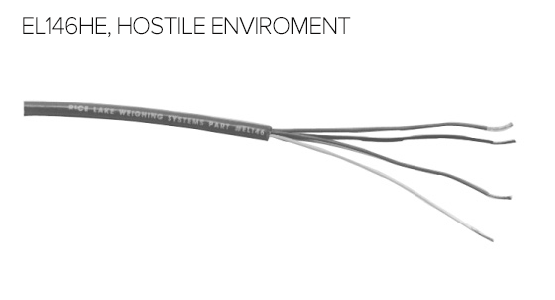

EL146HE Hostile Environment Cable
Designed for use in hostile environments
Polyurethane jacketing provides superior chemical and abrasion resistance
RFI and EMI protected with foil overbraid shield
Unmatched durability, yet extremely flexible
All conductors are industry-standard color-coded
Diameter: 0.32 in
Temperature rating: -22 to 176 °F (-30 to 80 °C)
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65

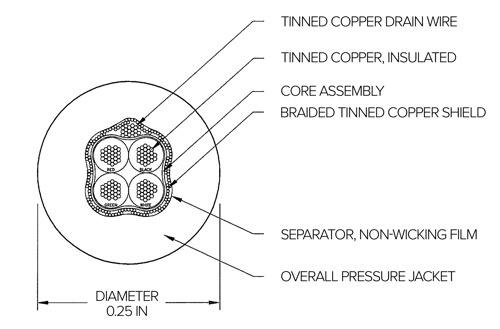

EL146 Standard Cable Dimensions
| Part# | Continuous Roll | Description |
|---|---|---|
| 15505 | 100 ft | Four-conductor cable |
| 15506 | 250 ft | Four-conductor cable |
| 15507 | 500 ft | Four-conductor cable |
| 15508 | 1,000 ft | Four-conductor cable |
| 15493 | Custom Length | Four-conductor cable |

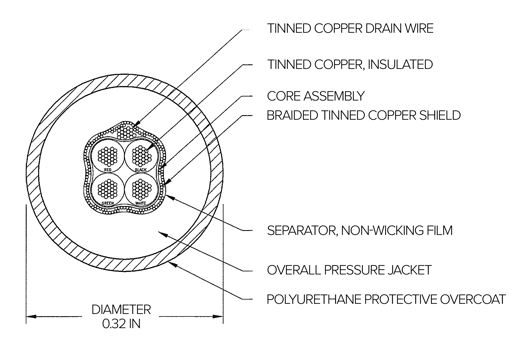

EL146 Hostile Environment Cable Dimensions
| Part# | Continuous Roll | Description |
|---|---|---|
| 15510 | 100 ft | Four-conductor hostile environment cable |
| 15511 | 250 ft | Four-conductor hostile environment cable |
| 15512 | 500 ft | Four-conductor hostile environment cable |
| 15513 | 1,000 ft | Four-conductor hostile environment cable |
| 15494 | Custom Length | Four-conductor hostile environment cable |
Resources/Downloads
Parts
EL146 Standard Cable
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 15505 | Cable,Load Cell 100ft EL146 4-Conductor UL, CSA, c UL approved |
List Price: $155.00 |
|
| 15506 | Cable,Load Cell 250ft EL146 4-Conductor UL, CSA, c UL approved |
List Price: $375.00 |
|
| 15507 | Cable,Load Cell 500ft EL146 4-Conductor UL, CSA, c UL approved |
List Price: $725.00 |
|
| 15508 | Cable,Load Cell 1000ft EL146 4-Conductor UL, CSA, c UL approved |
List Price: $1,150.00 |
|
| 15493 | Cable,Load Cell Custom EL146 4-Conductor per foot UL, CSA c UL approved |
List Price: $1.65 |
