Product PDF

EL147, 6-wire Load Cell Cable

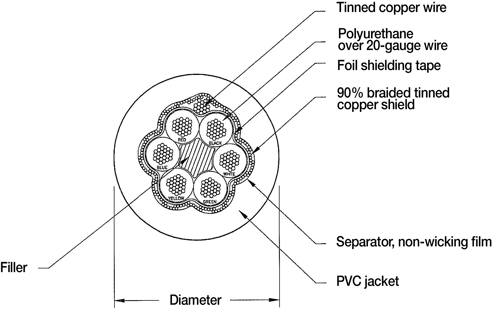

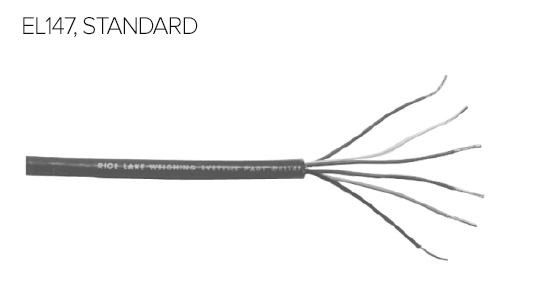

EL147 Standard Cable

  • 20 AWG tinned copper wire stranded for flexibility

  • Braided shielding is encased in red PVC

  • All conductors are industry-standard color-coded

  • Diameter: 0.29 in

  • Best suited for longer runs where remote sense lines can be used

  • Temperature rating: -22 to 126 °F (-30 to 80 °C)

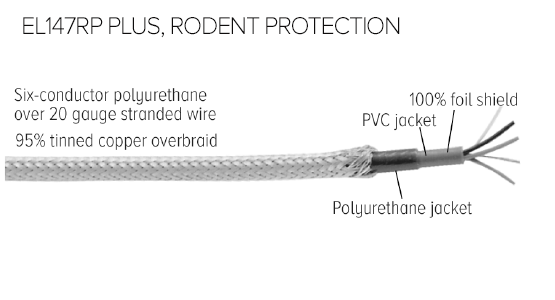

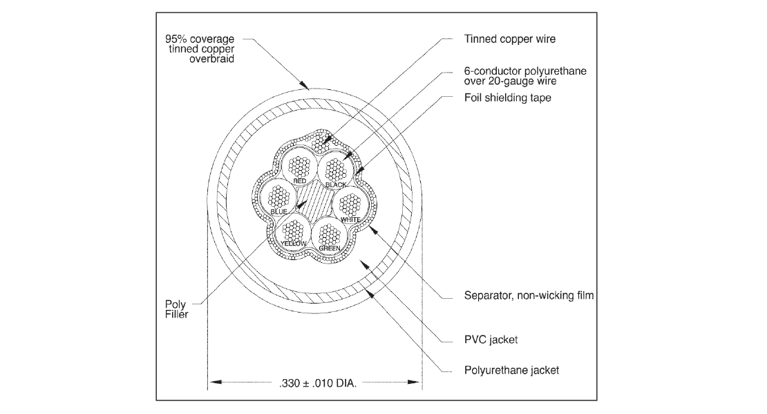

EL147RP Rodent Protection Cable

  • Tinned copper overbraid provides a superior rodent and abrasion deterrent

  • Enhanced EMI/RFI protection

  • Six-conductor industry-standard color-coded

  • Ideal for truck and railroad scales

  • Diameter: 0.33 in

  • Jacket coating enhanced with a chemical coating “NAW” that is distasteful to rodents

  • Temperature rating: -22 to 176 °F (-30 to 80 °C)

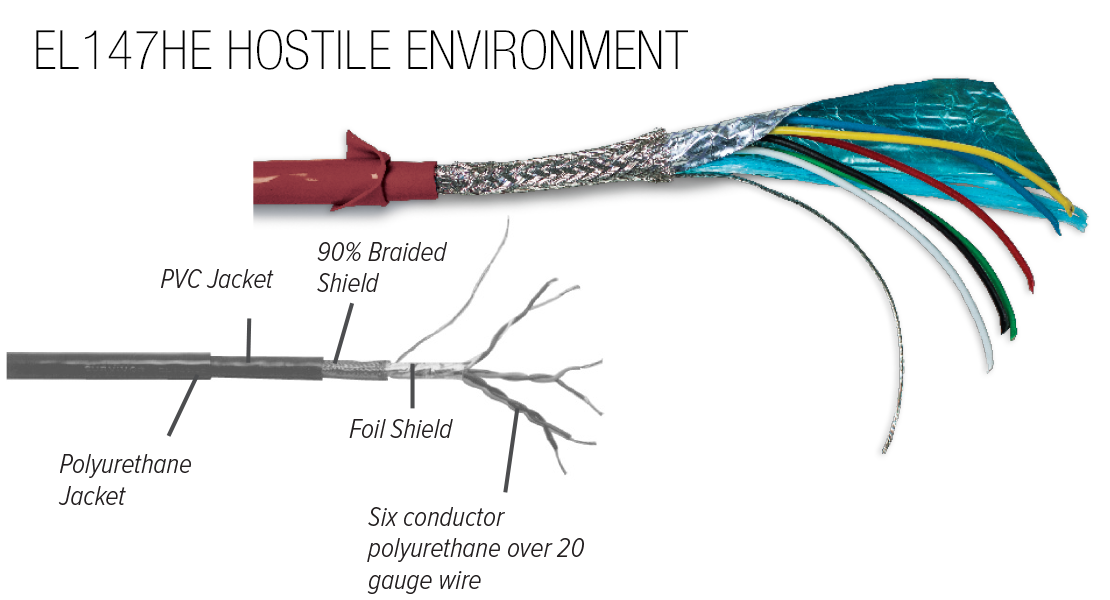

EL147HE Hostile Environment Cable (Not UL Approved)

  • Designed for use in hostile environments

  • Polyurethane jacketing provides superior chemical and abrasion resistance

  • RFI and EMI protected with foil overbraid shield

  • Unmatched durability, yet extremely flexible

  • All conductors are industry-standard color-coded

  • Diameter: 0.32 in

  • Temperature rating: -22 to 176 °F (-30 to 80 °C)

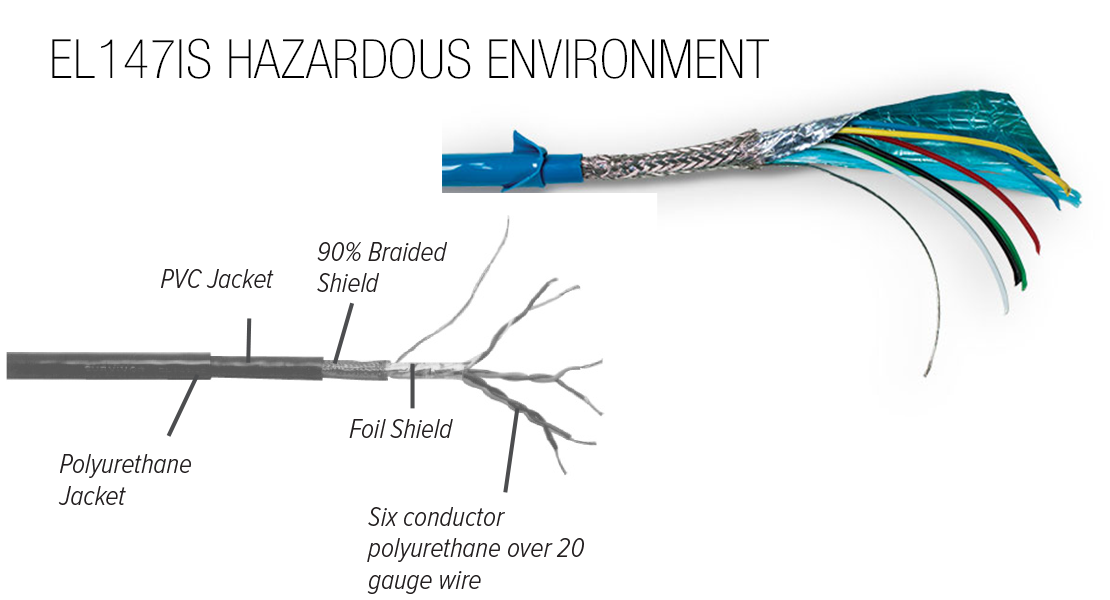

EL147IS Hazardous Environment Blue Jacket Cable

  • Designed for intrinsically safe applications (must be wired according to Factory Mutual System-approved diagram)

  • Polyurethane over PVC double jacketing provides superior chemical and abrasion resistance

  • Includes foil and braided wire shields for added RFI and EMI protection

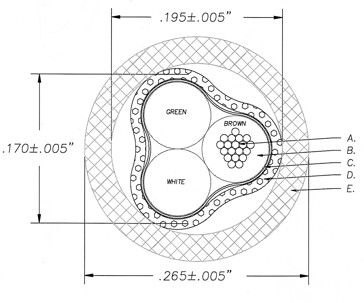

  • Six-conductor is industry-standard color-coded (Also available three-conductor)

  • Suited for longer runs where remote sense lines can be used

  • Diameter: 0.32 in

  • Temperature rating: -22 to 176 °F (-30 to 80 °C)

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

UL-Recognized_C-US CSA

WARNING: Cancer and Reproductive Harm California Proposition 65
EL147 Standard (1)

Part# Continuous Roll Description
15515 100 ft 30.5 m Six-conductor cable
15516 250 ft 76.2 m Six-conductor cable
15517 500 ft 152.4 m Six-conductor cable
15518 1,000 ft 304.8 m Six-conductor cable
15495 Custom Length Six-conductor cable





Part# Continuous Roll Description
131964 100 ft Six-conductor hostile environment cable
131965 250 ft Six-conductor hostile environment cable
131966 500 ft Six-conductor hostile environment cable
131967 1,000 ft Six-conductor hostile environment cable
31475 Custom Length Six-conductor hostile environment cable





Part# Continuous Roll Description
15520 100 ft Six-conductor hostile environment cable
15521 250 ft Six-conductor hostile environment cable
15522 500 ft Six-conductor hostile environment cable
15523 1,000 ft Six-conductor hostile environment cable
15496 Custom Length Six-conductor hostile environment cable







Part#
32817 Available per foot
72241 Available per foot





Resources/Downloads

Title Download Email
EL147 Standard Load Cell Cable Catalog Page Download Email
EL147RP Plus Rodent Protection Load Cell Cable Catalog Page Download Email
EL147HE Hostile Environment Load Cell Cable Catalog Page Download Email
EL147IS Hazardous Environment Blue Jacket Load Cell Cable Catalog Page Download Email

Parts

EL147 Standard Cable

Part # Description List Price Cart/Quote
15515 Cable,Load Cell 100ft EL147 6-Conductor UL, CSA, c UL approved

List Price: $245.00
15516 Cable,Load Cell 250ft EL147 6-Conductor UL, CSA, c UL approved

List Price: $535.00
15517 Cable,Load Cell 500ft EL147 6-Conductor UL, CSA, c UL approved

List Price: $950.00
15518 Cable,Load Cell 1000ft EL147 6-Conductor UL, CSA, c UL approved

List Price: $1,875.00
15495 Cable,Load Cell Custom EL147 6-Conductor per foot UL, CSA, c UL approved

List Price: $2.45

EL147RP Rodent Protection Cable

EL147HE Hostile Environment Cable

EL147IS Hazardous Environment Blue Jacket Cable
