Explorer Plus™ Series, OHAUS High-capacity Balance

  • Touchless IR (infrared) sensors minimize keypad use
  • Program IR sensor to control operations including print, tare and other selectable functions
  • Color VGA, 7 in display with icons for simple menu navigation
  • Multiple application modes designed for versatility
  • AutoCal™ calibration
  • Robust IP54 die-cast metal bottom housing with stainless steel pan
  • ENERGY STAR qualified adapter
  • Underweigh hook
Request More Information

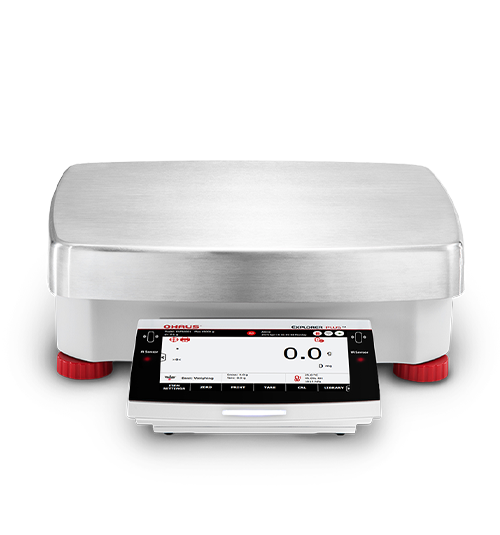

Explorer Plus High Capacity Front

High-capacity Precision Balance for Labs

The OHAUS Explorer Plus High Capacity balance is a compact weighing solution with advanced communication capabilities to integrate into Laboratory Information Management Systems (LIMS). This high-precision balance has an eco-friendly design made with recycled materials alongside a metal base and top housing.

Weighing Units:
Gram, kilogram, ounce, pound, carat, pennyweight, grain (see technical manual for complete listing)

Operating Modes:
Weighing, counting, animal/dynamic weighing, checkweighing, percent weighing, filling, parts counting, totalization, formulation, differential weighing, density determination, peak hold, ingredient costing, SQC

Power:
AC adapter input: 100 to 240 VAC 0.6 A 50/60 Hz

Stabilization Time:
Approx. 1 second

Calibration:
AutoCal™ at 1.5 °C temperature change, 11 hours, and external calibration

Temperature:
Operating:
14 °F to 140 °F (-10 °C to 60 °C)

Est. Weight:
25 lb (12.5 kg)

Warranty:
Two-year limited

Return Policy:
OHAUS standard policy - restock fee may apply

Model  Capacity Readability Repeatability Linearity Pan Size Dimensions Part #

Ex24001

24,000 g

0.1 g

±0.1 g

±2m g

14.84 × 12.24 in
(377 × 311 mm)

14.84 × 4.72 × 17.44 in
(377 × 120 × 443 mm)

233264

Ex35001

35,000 g

0.1 g

±0.1 g

±2m g

14.84 × 12.24 in
(377 × 311 mm)

14.84 × 4.72 × 17.44 in
(377 × 120 × 443 mm)

233265

Ex35001

35,000 g

0.1 g

±0.1 g

±2m g

14.84 × 12.24 in
(377 × 311 mm)

14.84 × 4.72 × 17.44 in
(377 × 120 × 443 mm)

233266



Resources/Downloads

Title Download Email
Explorer Series High-Capacity Catalog Page Download Email

Title Version Revision Download Email Category Archived
OHAUS Explorer Analytical, Precision and High Capacity Instruction Manual Download Email Precision Balances No

Parts

Part # Description List Price Cart/Quote
233264 Balance,Ohaus EXP24001 Explorer High Capacity, 24000 x 0.1g, 120-240V Adapter

List Price: $7,724.00
233265 Balance,Ohaus EXP35000 Explorer High Capacity, 35000 x 0.1g, 120-240V Adapter

List Price: $9,072.00
233266 Balance,Ohaus EXP65001 Explorer High Capacity, 65000 x 0.1g, 120-240V Adapter

List Price: $10,341.00

Options

Part # Description List Price Cart/Quote
77712 Balance OPT,Cable IBM-PC 25 Pin For Ohaus Adventurer Pro and Discovery

List Price: $370.00
233257 Balance OPT,Cable 9-Pin Serial Ext

List Price: $260.00
156234 Adapter,AC Ohaus 120-240V Universal 46001724 Navigator XT, PA, PX, EX Series Requires 156235 Plus SET or 166574 US Plug Only Sold Separately

List Price: $99.00
156236 Adapter,Univeral Ohaus 46001802 Valor 2000, Valor 5000, FD, Aviator, T31P, Defender 2000, Defender 3000, RA, RV Order PN 156235 Plug SET or 166574 US Plug Only Separately

List Price: $117.00
