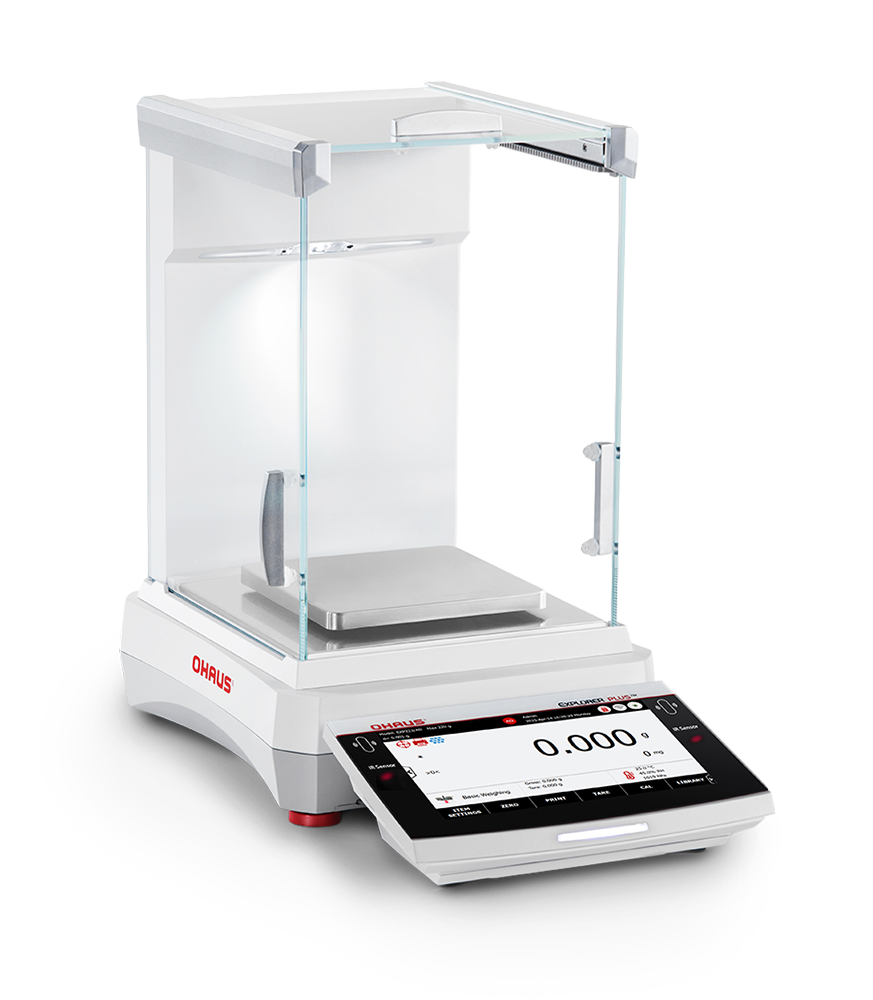

Explorer Plus™ Series, OHAUS Precision Balance

  • Large, 7-inch full-color touchscreen display with intuitive setup and application software
  • AutoCal™ automatic internal adjustment weight for optimized weighing performance
  • 14 application modes, 11 weighing units and five display languages for a wide variety of applications
  • Four programmable touchless sensors for hands-free operation
  • 001 g models feature frameless draftshield with anti-static glass, flip-top and large side entry doors on top-mounted bearings
  • USB Host (Type A) × 2, USB Device (Type B) × 1, USB Device (Type C) × 1
  • Ethernet (RJ45) × 1, RS232 × 1; Optional Wi-Fi/WPAN Dongle

Options

  • External calibration models
Request More Information

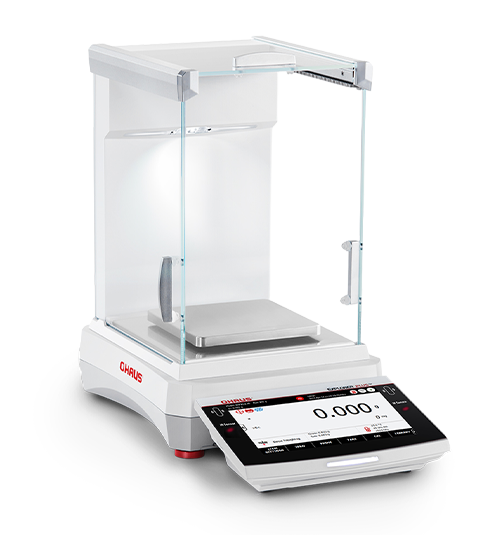

Explorer Plus Precision Right Draft Shield Light

Precision Balance for Laboratories and Pharmaceuticals

The OHAUS Explorer Plus Precision balance is a secure, reliable weighing solution. With a four-level user system, password protection and time synchronization to meet pharmaceutical regulations, it is suitable for a range of medical and laboratory environments.

Weighing Units:
Milligram, gram, kilogram, ounce, carat, pennyweight, troy ounce, grain, newton (see technical manual for complete listing)

Operating Modes:
Weighing, percent weighing, parts counting, checkweighing, dynamic/animal weighing, filling, totalization, formulation, Differential weighing, density determination, peak hold, ingredient costing, pipette adjustment, SQC

Power:
AC adapter input: 100 to 240 VAC 0.6A 50/60 Hz

Stabilization Time:
Approx. 1.5 second

Calibration:
AutoCal™ at 1.5 °C temperature change, 11 hours, and external calibration

Temperature:
Operating:
10 °C to 30 °C (50 °F to 86 °F)

Est. Weight:
21.1 lb (9.6 kg)

Warranty:
Two-year limited

Return Policy:
OHAUS standard policy - restock fee may apply

Model  Capacity Readability Repeatability Linearity Weighing Chamber Pan Size Dimensions Part #

EX223/AD

220 g

1mg

1mg

±2 mg

9.5 × 7.5 × 6.5 in
(241 × 191 × 165 mm)

Ø 5.1 in
(130 mm)

9.1 × 15.5 × 13.8 in
(230 × 393 × 350 mm)

233259

EX423/AD

420 g

1mg

1mg

±2 mg

9.5 × 7.5 × 6.5 in
(241 × 191 × 165 mm)

Ø 5.1 in
(130 mm)

9.1 × 15.5 × 13.8 in
(230 × 393 × 350 mm)

233260

EX623/AD

620 g

1mg

1mg

±2 mg

9.5 × 7.5 × 6.5 in
(241 × 191 × 165 mm)

Ø 5.1 in
(130 mm)

9.1 × 15.5 × 13.8 in
(230 × 393 × 350 mm)

233261

EX1203/AD

1,200 g

1mg

1mg

±2 mg

9.5 × 7.5 × 6.5 in
(241 × 191 × 165 mm)

Ø 5.1 in
(130 mm)

9.1 × 15.5 × 13.8 in
(230 × 393 × 350 mm)

233262



Resources/Downloads

Title Version Revision Download Email Category Archived
OHAUS Explorer Analytical, Precision and High Capacity Instruction Manual Download Email Precision Balances No

Parts

Part # Description List Price Cart/Quote
233259 Balance,Ohaus EXP223/AD Toploader, Explorer 220 g x 1mg, 120-240 VAC AC Adapter US Power Cord

List Price: $4,846.00
233260 Balance,Ohaus EXP423/AD Toploader, Explorer 420 g x 1mg, 120-240 VAC AC Adapter US Power Cord

List Price: $5,665.00
233261 Balance,Ohaus EXP623/AD Toploader, Explorer 620 g x 1mg, 120-240 VAC AC Adapter US Power Cord

List Price: $6,930.00
233262 Balance,Ohaus EXP1203/AD Toploader, Explorer 1200 g x 1mg, 120-240 VAC AC Adapter US Power Cord

List Price: $8,113.00

Options

Part # Description List Price Cart/Quote
77712 Balance OPT,Cable IBM-PC 25 Pin For Ohaus Adventurer Pro and Discovery

List Price: $370.00
156234 Adapter,AC Ohaus 120-240V Universal 46001724 Navigator XT, PA, PX, EX Series Requires 156235 Plus SET or 166574 US Plug Only Sold Separately

List Price: $99.00
156235 Plug Set,Intl Ohaus Kit PN 46001780 Includes 46001766 US Plug - Valor 2000, PA, PX, EX, Defender Series (Kit includes plugs for EU, AU, UK) Add ASAP for US plug

List Price: $50.00
