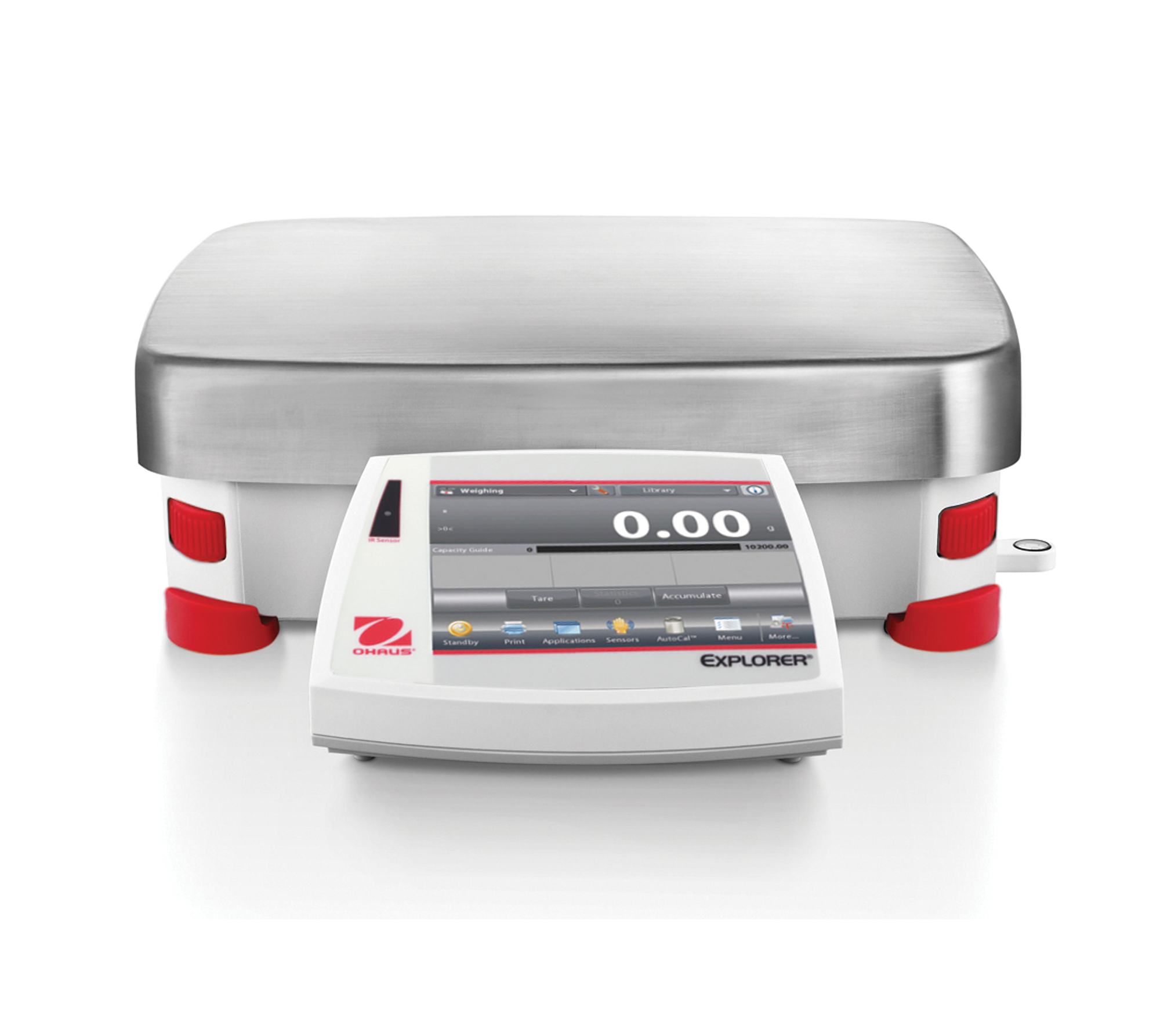

Explorer® Series, Ohaus High Capacity Balance

  • Touchless IR (infrared) sensors minimize keypad use

  • Program IR sensor to control operations including print, tare and other selectable functions

  • Color VGA, 5.7 in display with icons for simple menu navigation

  • Multiple application modes designed for versatility

  • AutoCal™ calibration

  • Robust IP54 die-cast metal bottom housing with stainless steel pan

  • ENERGY STAR qualified adapter

  • Below balance weighing with underhook

Request More Information
Explorer High Capacity Series

Innovative Industrial Balance

The Ohaus Explorer High Capacity Series features an innovative, easy-to-use interface. One-step operation guides you through Explorer Pro’s application modes with a single button press. The high-resolution, backlit, LCD display is easy to view, while programmable touchless sensors can control a diverse range of popular applications including tare, print and power.

Weighing Units:
Gram, kilogram, ounce, pound, carat, pennyweight, grain (see technical manual for complete listing)

Operating Modes:
Weighing, counting, animal/dynamic weighing, checkweighing, percent weighing, filling, parts counting, totalization, formulation, differential weighing, density determination, peak hold,
ingredient costing, SQC

Power:
AC adapter input: 100 to 240 VAC 0.6 A 50/60 Hz

Stabilization Time:
Approx. 1 second

Calibration:
AutoCal™ at 1.5 °C temperature change, 11 hours and external calibration

Temperature:
Operating:
14 to 140 °F (-10 to 60 °C)

Est. Weight:
25 lb (12.5 kg)

Warranty:
Two-year limited

Return Policy:
OHAUS standard policy - restock fee may apply

Model  Capacity Readability Repeatability Linearity Pan Size Dimensions Part #

Ex12001

12,000 g

0.1 g

±0.1 g

±0.2 g

14.84 × 12.24 in
(377 × 311 mm)

14.84 × 4.72 × 17.44 in
(377 × 120 × 443 mm)

157235

Ex24001

24,000 g

0.1 g

±0.1 g

±0.2 g

14.84 × 12.24 in
(377 × 311 mm)

14.84 × 4.72 × 17.44 in
(377 × 120 × 443 mm)

157236

Ex35001

35,000 g

0.1 g

±0.1 g

±0.2 g

14.84 × 12.24 in
(377 × 311 mm)

14.84 × 4.72 × 17.44 in
(377 × 120 × 443 mm)

157237



Resources/Downloads

Title Download Email
Explorer Series High-Capacity Catalog Page Download Email

Title Version Revision Download Email Category Archived
OHAUS Explorer Analytical, Precision and High Capacity Instruction Manual Download Email Precision Balances No

Parts

Part # Description List Price Cart/Quote
157235 Balance,Ohaus EX12001 Explorer High Capacity, 12000 x 0.1g, 120-240V Adapter

Consult
157236 Balance,Ohaus EX24001 Explorer High Capacity, 24000 x 0.1g, 120-240V Adapter

Consult
157237 Balance,Ohaus EX35001 Explorer High Capacity, 35000 x 0.1g, 120-240V Adapter

Consult

Options

Part # Description List Price Cart/Quote
157238 Column,Tower Display Ohaus High Capacity 30078082

List Price: $290.00
77712 Balance OPT,Cable IBM-PC 25 Pin For Ohaus Adventurer Pro and Discovery

List Price: $370.00
70406 Balance OPT,Cable 9-Pin Serial Ext

List Price: $389.00
156234 Adapter,AC Ohaus 120-240V Universal 46001724 Navigator XT, PA, PX, EX Series Requires 156235 Plus SET or 166574 US Plug Only Sold Separately

List Price: $99.00
156235 Plug Set,Intl Ohaus Kit PN 46001780 Includes 46001766 US Plug - Valor 2000, PA, PX, EX, Defender Series (Kit includes plugs for EU, AU, UK) Add ASAP for US plug

List Price: $50.00
