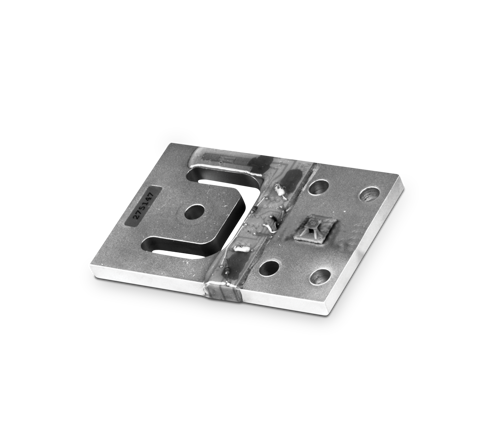

Flintec® PB Aluminum, Planar Beam Load Cell

The PB load cell is an inexpensive, alternative planar beam, which can be used in low-profile, light-capacity applications. It has a capacity range from 15 to 150 kilograms and includes 1.5 meters of load cell cable.

Request More Information
rl-flintec-PB-planar-beam-load-cell

Full Scale Output:
1 mV/V
mV/V/ohm calibration

Output Resistance:
1,000 (± 10) ohm

Input Resistance:
1,180 (± 50) ohm

Material/Finish:
Aluminum

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP65

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.060% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
1.5 m

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow shield

Warranty:
One-year limited

Rated Capacity L1 L2 L3 L4 L5 W1 W2 H1 D1 D2 Deflection (mm) at E max
kg/mm
15 70.0 4.9 14.0 28.0 23.7 39.0 27.8 4.1 7.6 5.1 0.3
37.5 76.2 6.0 15.0 29.3 27.0 44.5 30.0 4.8 7.6 6.6 0.4
75 84.4 6.4 15.0 34.0 27.7 54.8 30.0 6.4 7.6 6.6 0.4
150 107.3 7.8 22.9 45.9 38.4 69.9 44.5 7.9 9.1 8.1 0.6





Resources/Downloads

Title Download Email
Flintec PB Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook F Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart/Quote
96361 Load Cell,Planar Beam PB 15kg 1M 1.0mV/v 1000 OHM AL IP65 Matched Output OIML C3 Without AMP Connector With Threaded Hole (1/4-20). Planar beam

List Price: $85.00
96362 Load Cell,Planar Beam PB 37.5kg 1.5M 1.0mV/v 1000 OHM AL IP65 Matched Output OIML C3 Without AMP Connector With Threaded Hole (1/4-20). Planar beam

List Price: $90.00
96363 Load Cell,Planar Beam PB 75kg 1.5M 1.0mV/v 1000 OHM AL IP65 Matched Output OIML C3 Without AMP Connector With Threaded Hole (1/4-20). Planar beam

List Price: $96.00
96364 Load Cell,Planar Beam PB 150kg 1.5M 1.0 mV/v 1000 OHM AL IP65 Matched Output OIML C3 Without AMP Connector With Threaded Hole (1/4-20). Planar beam

List Price: $108.00

Related Products

rl-RLBLP-load-cell

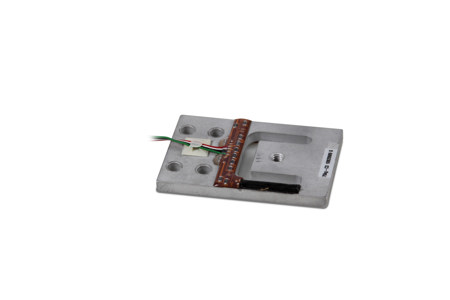

Rice Lake RLBLP Aluminum, Planar Beam Load Cell
