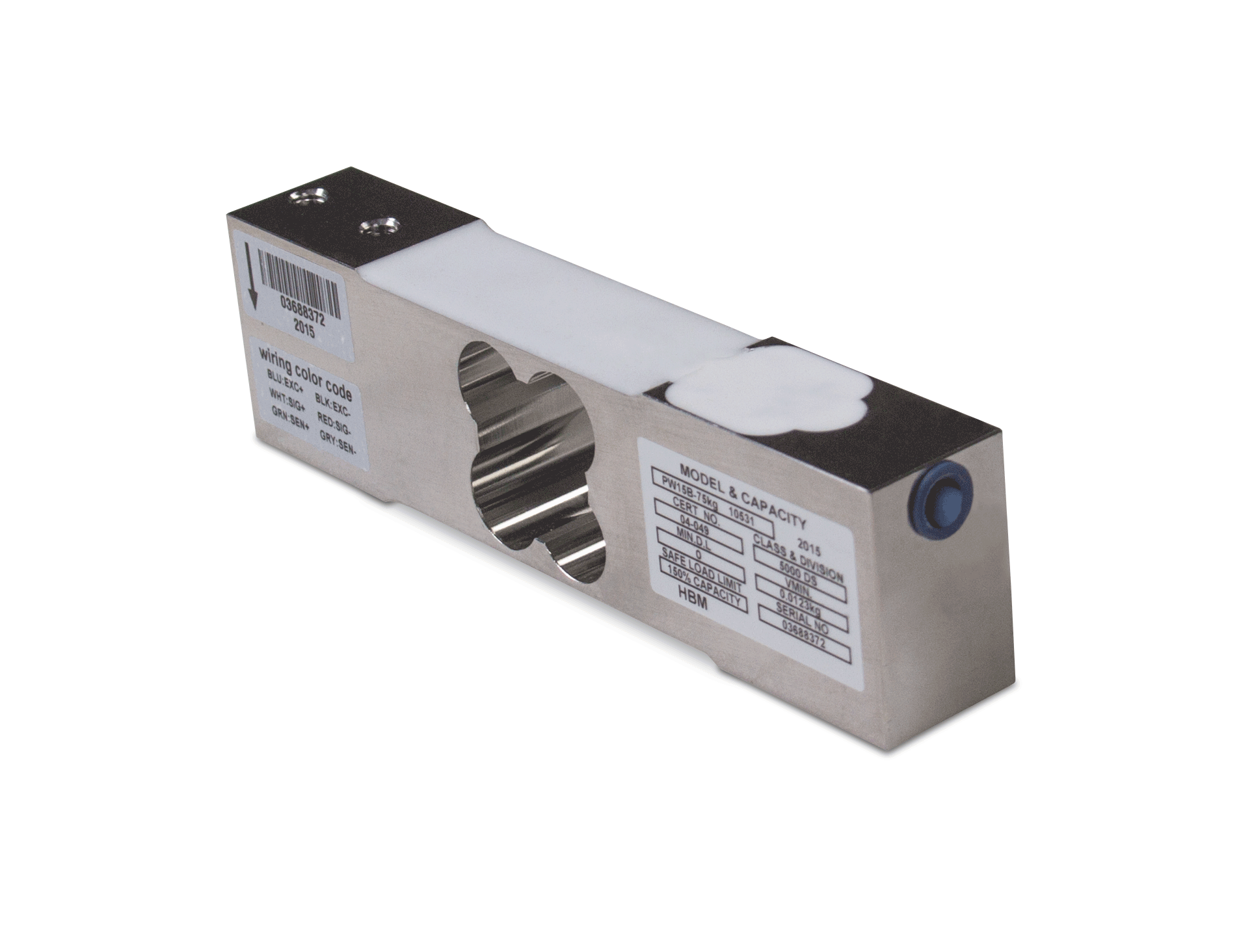

HBK® PW15 Stainless Steel, Single Point Load Cell

Full Scale Output:
2.0 mV/V

Output Resistance:
359 (±5) ohm

Input Resistance:
380 (±15) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated: 14 to 104 °F (-10 to 40 °C)
Operating: 0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 15 VDC

Total Error:
0.02% full scale

Insulation Resistance:
1,000 megohm

Deflection at Capacity:
0.2 mm

Cable Length:
10 ft

Cable Diameter:
0.190 in PVC jacket

Cable Color Code:
Blue +Excitation
Black -Excitation
White +Signal
Red -Signal
Green +Sense
Gray -Sense

Warranty:
One-year limited

Approvals:
NTEP
FM
