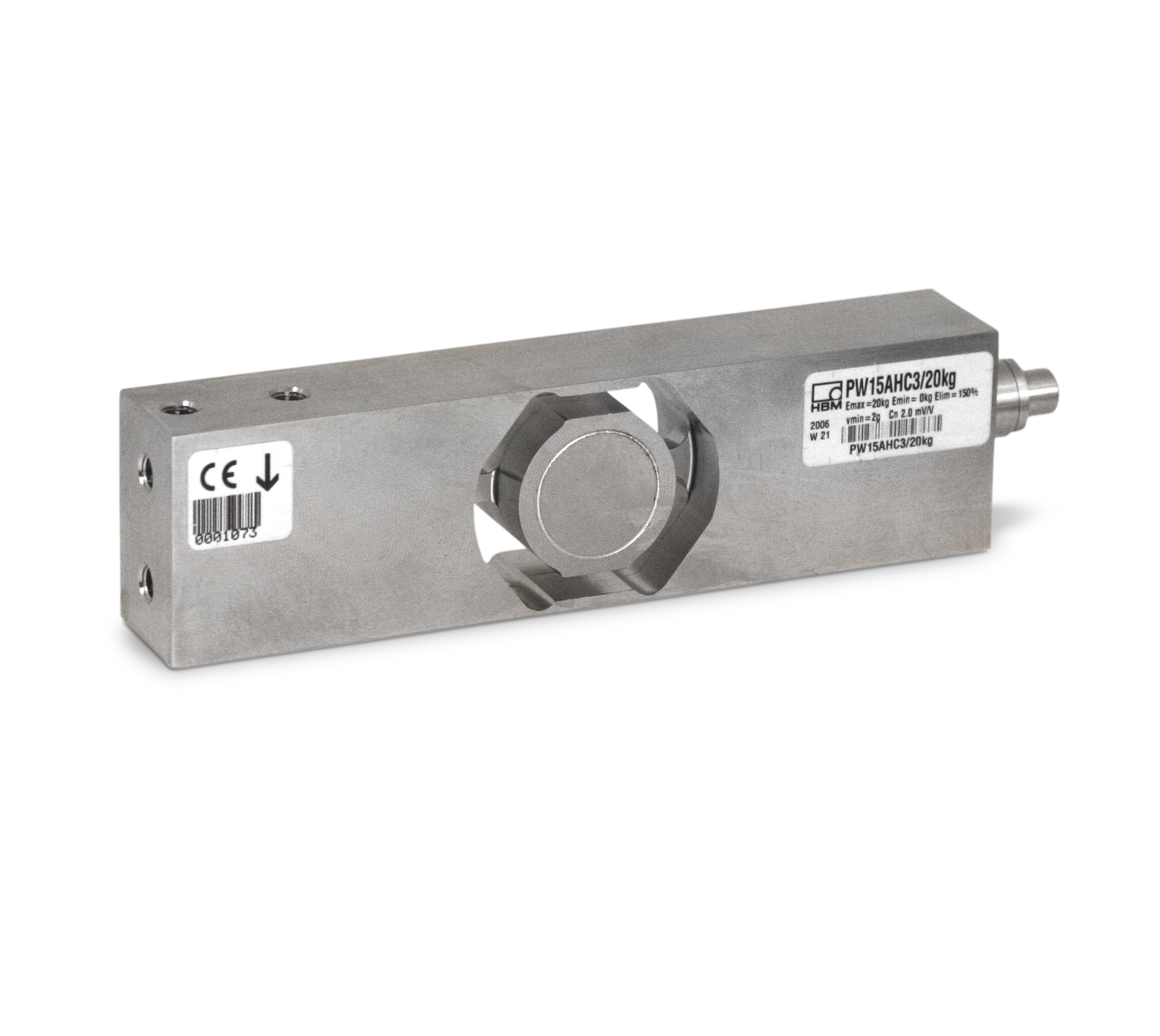

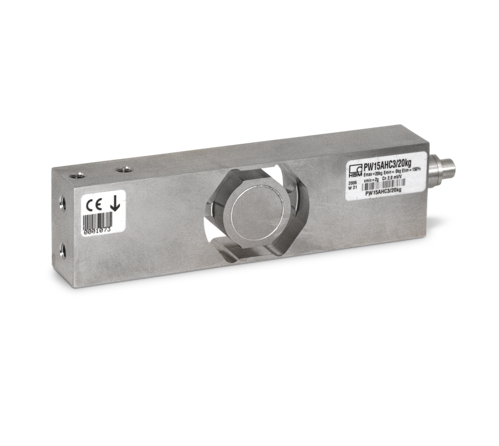

HBK® PW15AH Stainless Steel, Single Point Load Cell
This is a hermetically sealed single point load cell that features a unique sealing process to prevent moisture from high-pressure jets. It's IP69K rated available in 10- to 100-kilogram capacities. It's complete with 3 meters of cable.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
PW15AH Load Cell Specifications
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: | Seal Type: Safe Overload: Rated Excitation: Combined Error: Insulation Resistance: Cable Length: | Cable Diameter: Cable Color Code: Warranty: Approvals: |

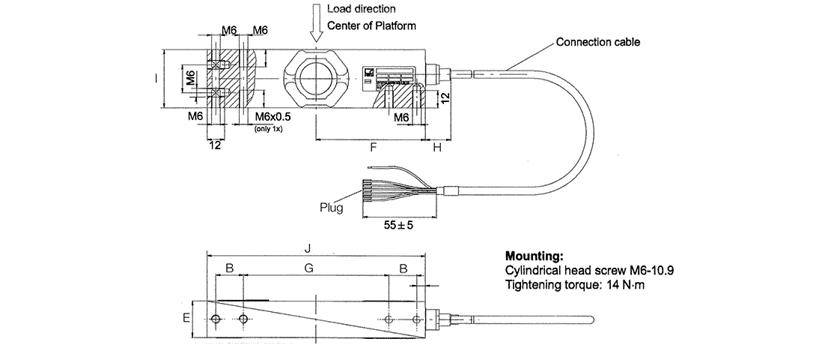

PW15AH Load Cell Dimensions
| Rated Capacity | B | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|
| kg/mm | |||||||
| 10 to 100 | 19.0 | 25.0 | 75.0 | 100.0 | 17.5 | 40.0 | 150.0 |
Resources/Downloads
Parts
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 101915 | Load Cell,SPT PW15AH-10kg 10ft 2mv/v 350 Ohm NTEP III 5S/OIML C3 IP69K SST HBM |
List Price: $825.00 |
|
| 101916 | Load Cell,SPT PW15AH-20kg 10ft 2mv/v 350 Ohm NTEP III 5S/OIML C3 IP69K SST HBM |
List Price: $825.00 |
|
| 101917 | Load Cell,SPT PW15AH-50kg 10ft 2mv/v 350 Ohm NTEP III 5S/OIML C3 IP69K SST HBM |
List Price: $825.00 |
|
| 101918 | Load Cell,SPT PW15AH- 100kg 10ft 2mv/v 350 Ohm SST NTEP III 5S/OIML C3 IP69K SST HBM |
List Price: $825.00 |
Related Products
Rice Lake RLPWM15 Stainless Steel, Single Point Load Cell
The environmentally sealed Rice Lake RLPWM15 single point load cell replaces HBM®’s PW15 for many bench scale types.

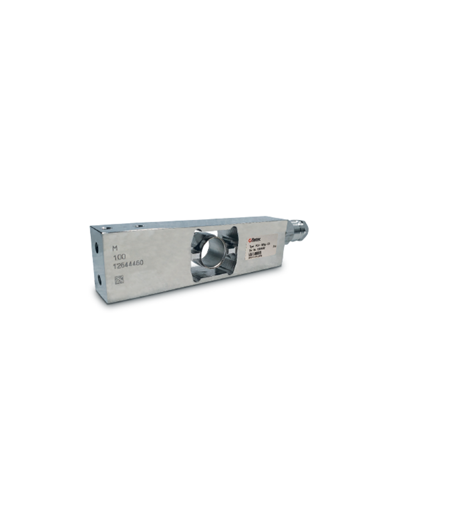

Flintec® PC4 Stainless Steel, Single Point Load Cell
