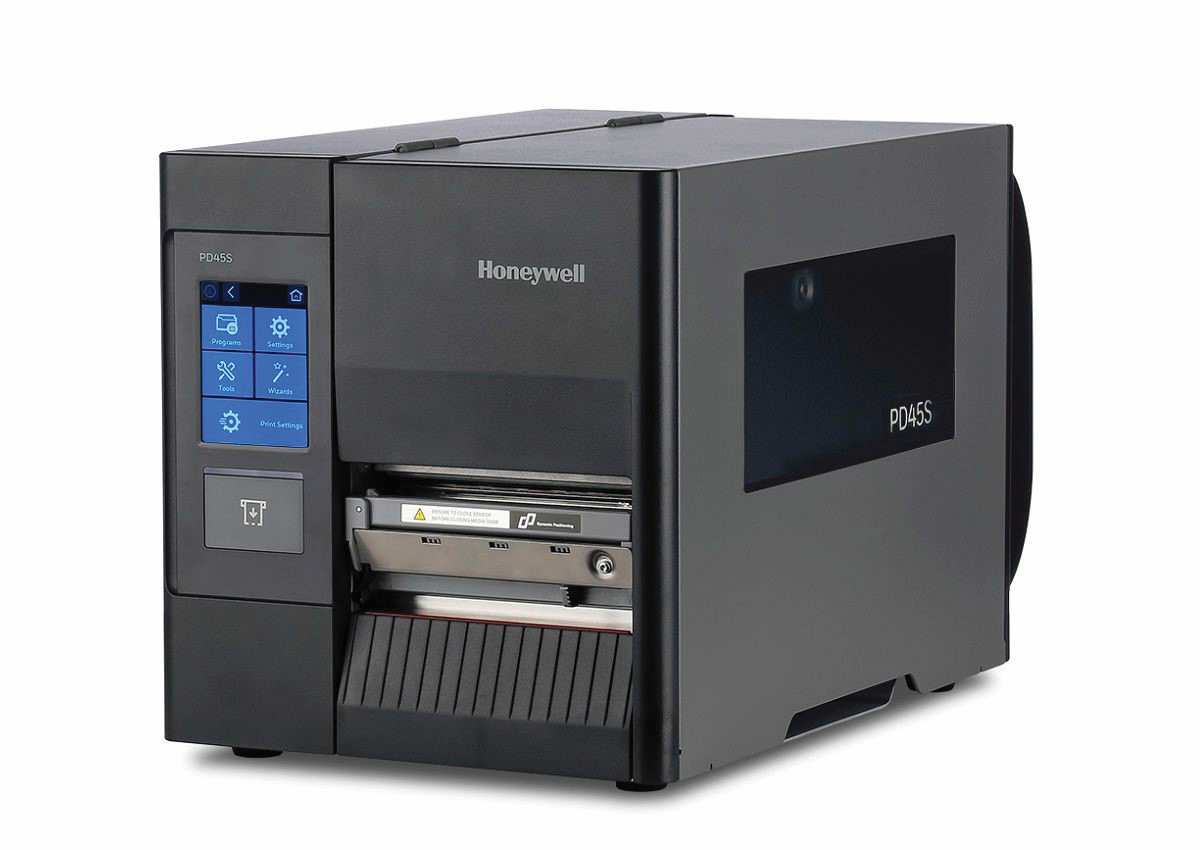

Honeywell® PD45S Direct Thermal/Thermal Transfer Label Printer

Print Speed:
203 dpi: 2 to 10 ips
300 dpi: 2 to 8 ips

Print Length:
0.25 to 99 in (6 to 2,475 mm)

Supply Roll Capacity:
8 in (203 mm) OD on 1.5 to 3.0 in (38 to 76.2 mm) cores
Fanfold stock accepted from rear and bottom of printer

Bar Code Modulus:
5 to 55 mil “X” dimension in picket fence or ladder orientations

Media Width:
0.75 to 4.5 in (17 to 114 mm)

Media Type:
Roll fed or fan-fold materials, die-cut or continuous labels; perforated or continuous tag/ticket stock

Media Thickness:
0.0025 to .01 in (0.0635 to 0.254 mm)

Ribbons:
Industry standard ribbon widths: 1 in (25 mm)
Ribbon core: 1,476 ft (450 m) in length

Bar Codes:
Code 3 of 9, UPC-A, UPC-E, Interleaved
2 of 5, Code 128, EAN-8, EAN-13, HIBC,
Codabar, Plessey, UPC 2 and 5 digit
addendums, Code 93, Postnet, UCC/EAN Code 128, Telepen, UPS MaxiCode, FIM, PDF417, USD-8, Datamatrix, QR Code, Aztec,
TLC 39, Micro PDF417, RSS

Graphics Support:
.PCX, .BMP and .IMG files

Memory:
128 MB RAM

Power Source:
Auto-sensing 90 to 132 VAC/180 to 264 VAC
47/63 Hz

Temperature:
Operating:
40 to 95 °F (4 to 35 °C)

Dimensions:
(L x H x W)
17.24 × 10.63 × 9.80 in
(438 × 270 × 249 mm)

Warranty:
One-year limited
Printhead (original): One-year or 1 million linear inches
Printhead (replacement): 90 days

Approvals:
CE Listed
FCC
UL Listed
CSA
