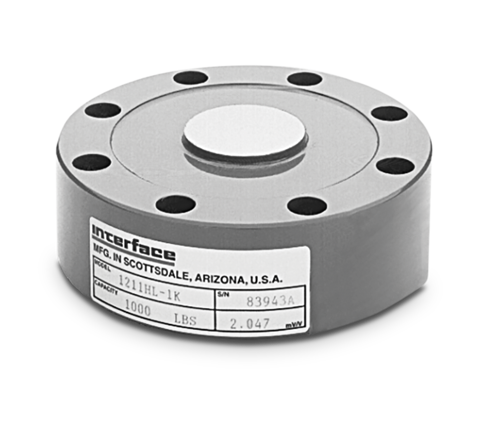

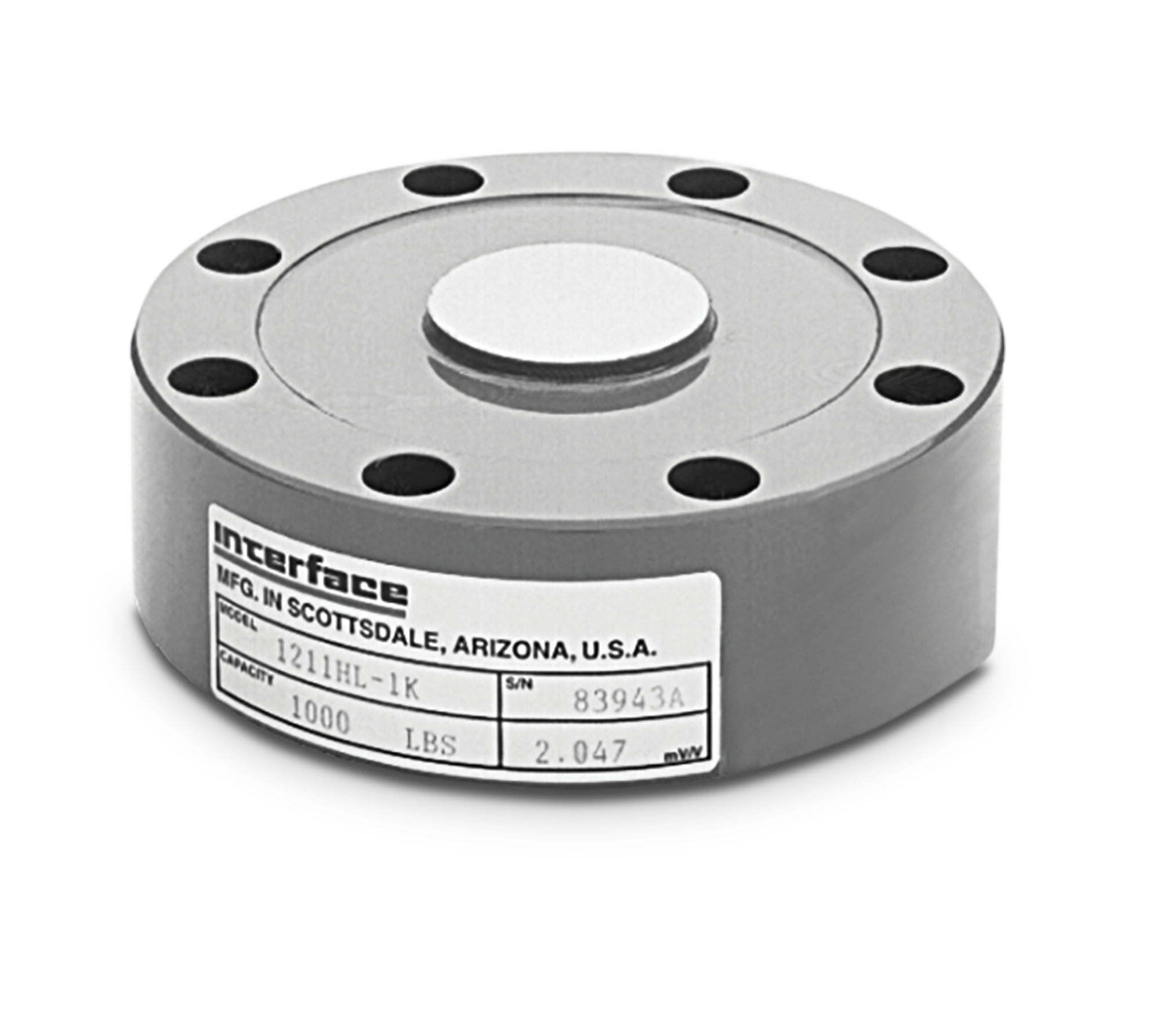

Interface® 1200 Series Alloy Steel/Aluminum Compression Canister Load Cell

This alloy steel load cell features resistance to extraneous forces, which allows for high fatigue life, less stringent mounting alignment and a lower possibility of reading errors. This design also permits smaller, portable and compact testing machines. It's available in 1,000- to 100,000-pound capacities and comes with 10 feet of load cell cable.

Request More Information
Portals 0 Products 170D16a5bfed4f4ab1c34186cd63edbb Orig

Full Scale Output:
1,000 to 2,000 lb: 2.0 mV/V
5,000 to 100,000 lb: 4.0 mV/V

Bridge Resistance:
350 ohm nominal

Material/Finish:
1,000 to 2,000 lb: Aluminum
5,000 to 100,000 lb: Alloy steel

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (20 V maximum)

Nonlinearity:
0.05% full scale

Hysteresis:
0.02 to 0.04% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
Two-year limited

Rated Capacity C D D1 D2 H H1
lb/in
1,000 to 10,000 0.28 dia 8 Holes 4.12 2.63 1.34 1.37 0.12
25,000 to 50,000 0.34 dia 4 Holes 4.75 2.95 1.57 1.75 0.12
100,000 0.47 dia 12 Holes 7.50 4.32 3.12 2.25 0.25





Resources/Downloads

Title Download Email
Interface 1200 Series Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook F Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Model 1211

Part # Description List Price Cart/Quote
36132 Load Cell,CDK 1211EX-1k Low Profile Aluminum 1000lb 10ft Interface 2mV/V 350 OHM

List Price: $1,495.00
36133 Load Cell,CDK 1211EX-2k Low Profile Aluminum 2000lb 10ft Interface 2mV/V 350 OHM

List Price: $1,495.00
36134 Load Cell,CDK 1211EX-5k Low Profile Alloy Steel 5000lb 10ft Interface 4mV/V 350 OHM

List Price: $1,995.00
36135 Load Cell,CDK 1211EX-10k Low Profile Alloy Steel 10,000lb 10ft Interface 4mV/V 350 OHM.

List Price: $1,995.00
