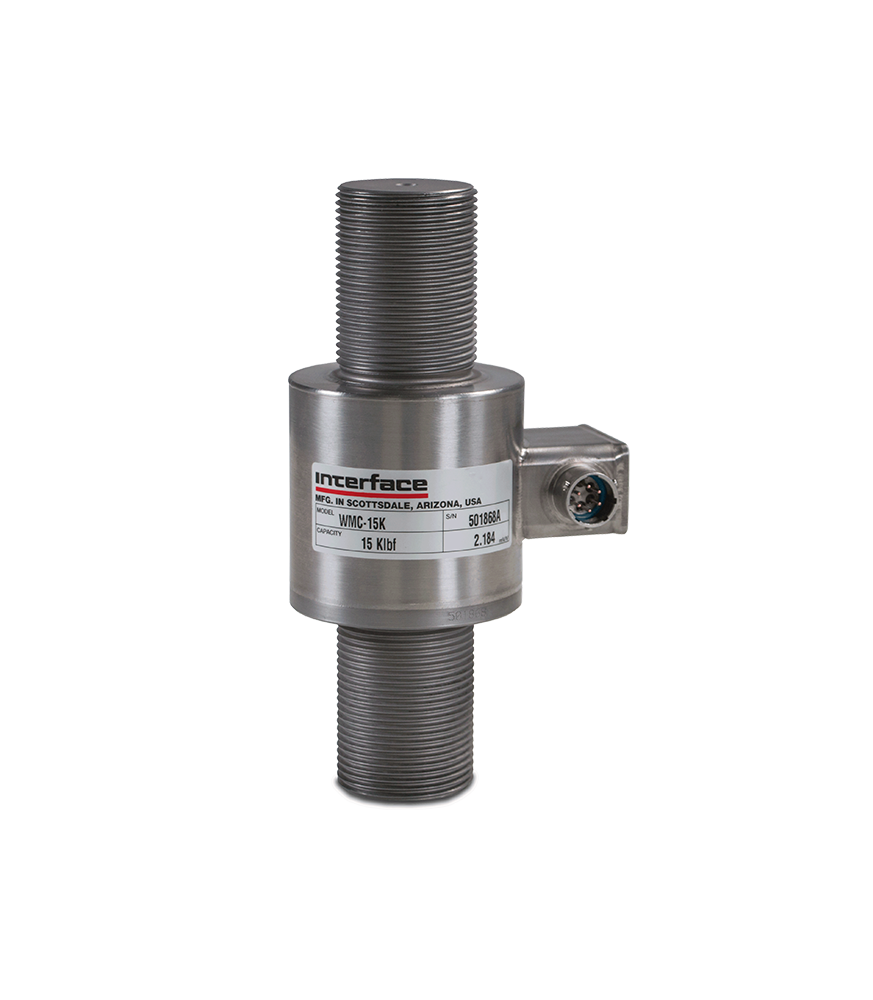

Interface® WMC Tension/Compression Rod-end Load Cell

The WMC load cell is environmentally sealed, constructed of stainless steel and designed for tension or compression applications. It comes in capacities of 15,000 to 200,000 pounds.

Request More Information
rl-interface-WMC-tension-compression-rod-end-load-cell

Full Scale Output:
2.0 mV/V

Bridge Resistance:
350 ohm nominal

Material/Finish:
Stainless steel

Temperature:
Operating: -65 to 250 °F (-54 to 121 °C)

Safe Overload:
150% full scale

Rated Excitation:
15 VDC Max

Nonlinearity:
15 to 30,000 lb: ±0.10% full scale
100,000: ±0.15% full scale
200,000: ±0.20% full scale

Hysteresis:
±0.15% full scale

Insulation Resistance:
>5,000 megohm

Connector Pin Out:
A +Excitation
B +Sense
C -Excitation
D -Sense
E -Signal
F +Signal

Warranty:
One-year limited

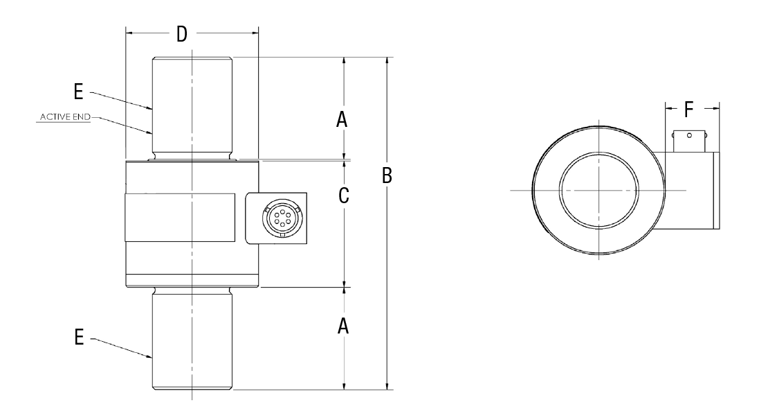

Rated Capacity A B C D E F
lb/in
15,000 to 50,000 2.00 6.50 2.47 2.50 1.5-12 UNF 1.01
100,000 3.00 10.00 3.97 3.50 2.50-12 UNF 1.28
200,000 4.00 13.00 4.97 4.47 3.50-8 UNF 1.36





Resources/Downloads

Title Download Email
Interface WMC Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook F Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart/Quote
185079 Load Cell,Rod End WMC-15K Interface 15,000lb Stainless Steel 2mv/v 350 Ohm T/C

List Price: $2,995.00
185080 Load Cell,Rod End WMC-20K Interface 20,000lb Stainless Steel 2mv/v 350 Ohm T/C

List Price: $2,995.00
185081 Load Cell,Rod End WMC-30K Interface 30,000lb Stainless Steel 2mv/v 350 Ohm T/C

List Price: $2,995.00
185583 Load Cell,Rod End WMC-50K 50,000lb Stainless Steel 2mv/v 350 Ohm T/C

List Price: $2,995.00
185082 Load Cell,Rod End WMC- 100K Interface 100,000lb Stainless Steel 2mv/v 350 Ohm T/C

List Price: $6,295.00
185083 Load Cell,Rod End WMC- 200K Interface 200,000lb Stainless Steel 2mv/v 350 Ohm T/C

List Price: $8,495.00

Options

Load Cell Cable Option

Part # Description List Price Cart/Quote
185459 Cable, Interface WMC Rod End Load Cell 10ft with PT06A-10-6S (SR) connector. 15k-200k

List Price: $250.00
