Product PDF

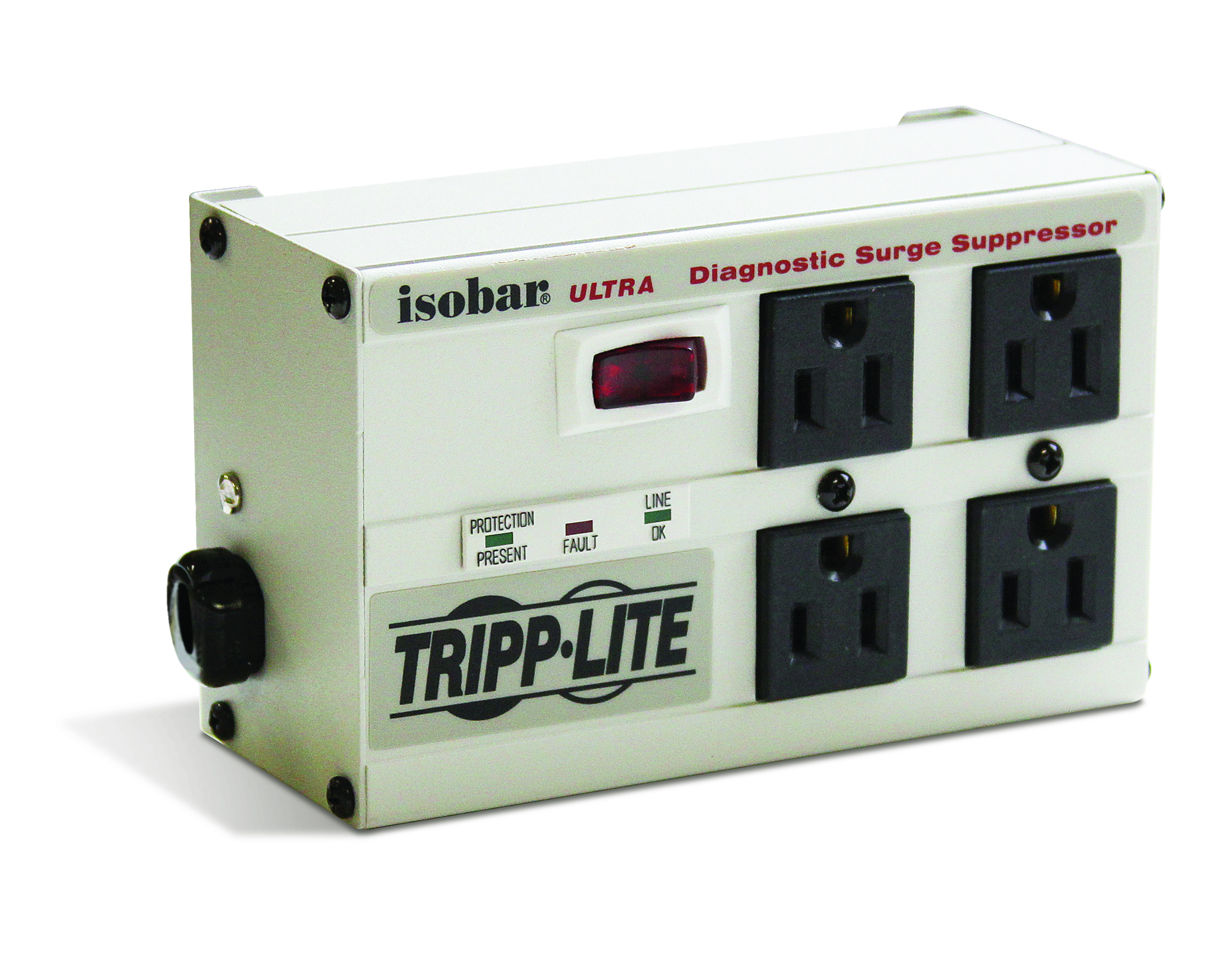

ISOBAR® AC Transient Protector

  • Four outlets

  • 6 ft cord with grounded three-prong plug

  • Lighted on/off switch

  • Circuit breaker protected

  • Multiple filter design prevents the different components of your system from interfering with each other

  • UL1449 listed at 330 volts

  • Exclusive isolated filter banks prevent equipment interaction

  • ISOBAR cascade circuitry allows you to choose more protection for your most sensitive equipment and a lesser degree of protection for equipment with more tolerance

Request More Information
Portals 0 Products 0C24c868d6f24e6aa6bbeda64b19a2cf Orig

The ISOBAR AC Transient Protector features four outlets for two isolated filter banks to prevent equipment interaction, and two outlets for basic or maximum level equipment protection. This cascade circuitry feature allows you to customize your security level based on equipment sensitivity.

Input Voltage:
120 VAC

Maximum Current:
15 A

Maximum Power:
1,875 watts

Noise Suppression:
Frequency Attenuation
50 KHz > 20 db
150 KHz > 40 db
1 MHz > 80 db
>6 MHz > 30 db

Dimensions:
(L × W × H)
6.15 × 3.56 × 2.48 in

Resources/Downloads

Title Download Email
ISOBAR Catalog Page Download Email

Parts

Part # Description List Price Cart/Quote
21146 AC Protection,Isobar ISO-4 4 Outlet 115 VAC

List Price: $220.00
36663 AC Protection,Isobar 220VAC Euro-4 4 Outlet 6 ft Cord

List Price: $195.00
