Product PDF

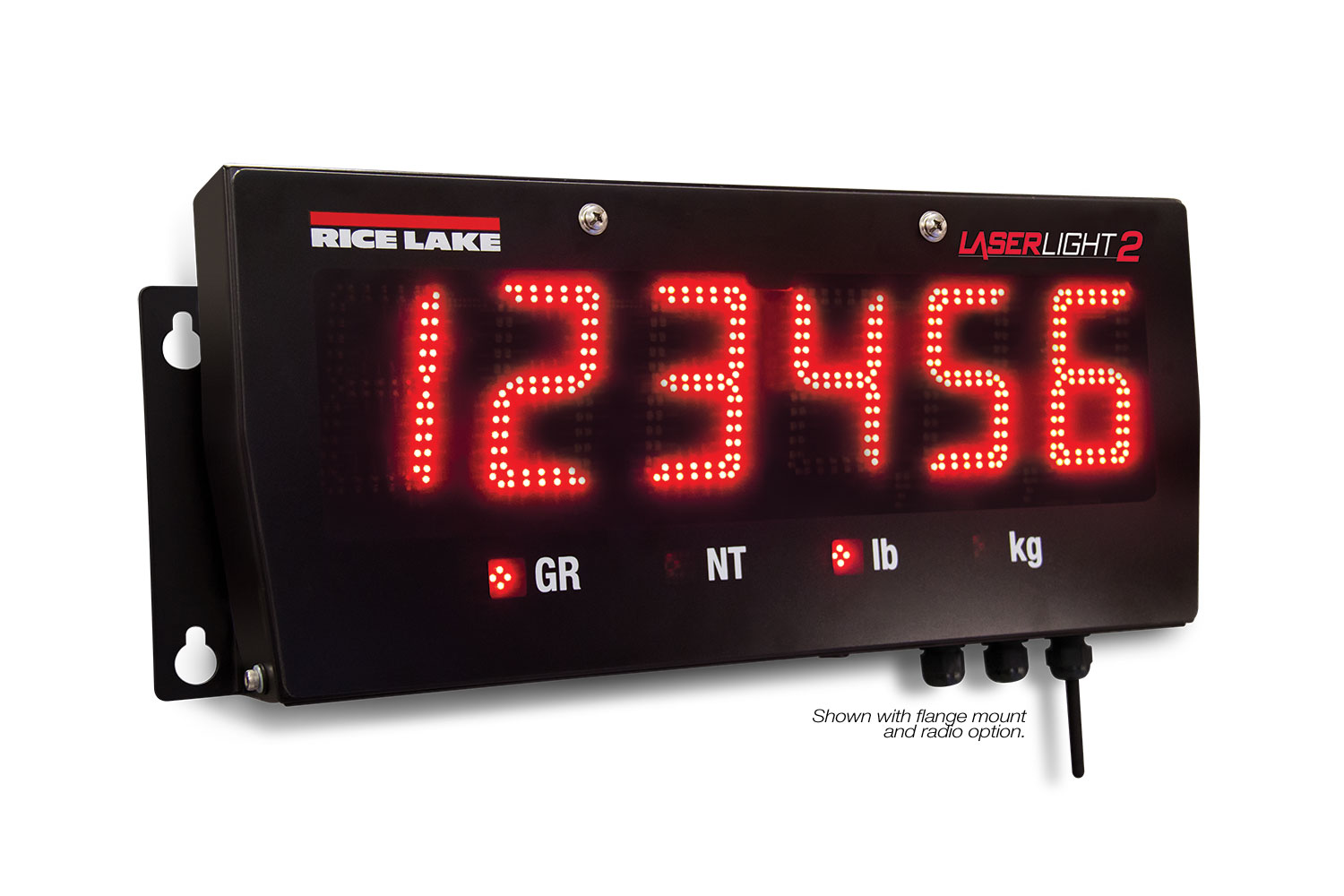

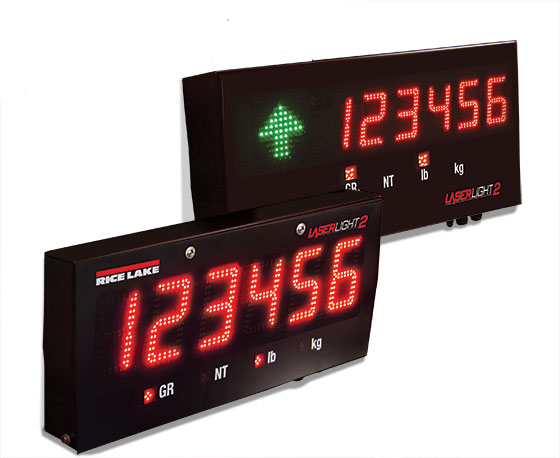

LaserLight2™ Remote Display

  • Available with a 4 in (100 mm) or 6 in (150 mm) digit display

  • Six high-intensity red digits (double-row discrete LED)

  • Time and date displayed when scale is empty

  • Auto Learn mode of communication protocols

  • Hold displayed weight (demand input)

  • Software selectable standstill mode for no updates while in motion

  • Setting for 10 levels, daylight/night intensity

  • Non-glare contrast filtered lens

  • Mirror (reverse image) function

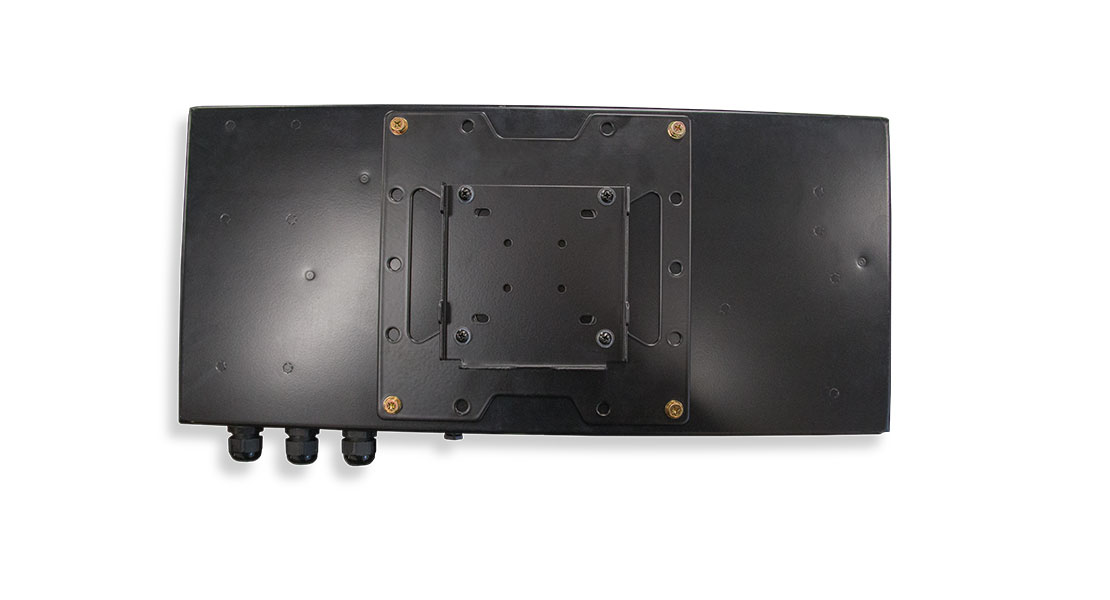

  • Wall mounted with side flanges or with VESA mount

  • Gore-Tex® breather vent inhibits internal moisture buildup

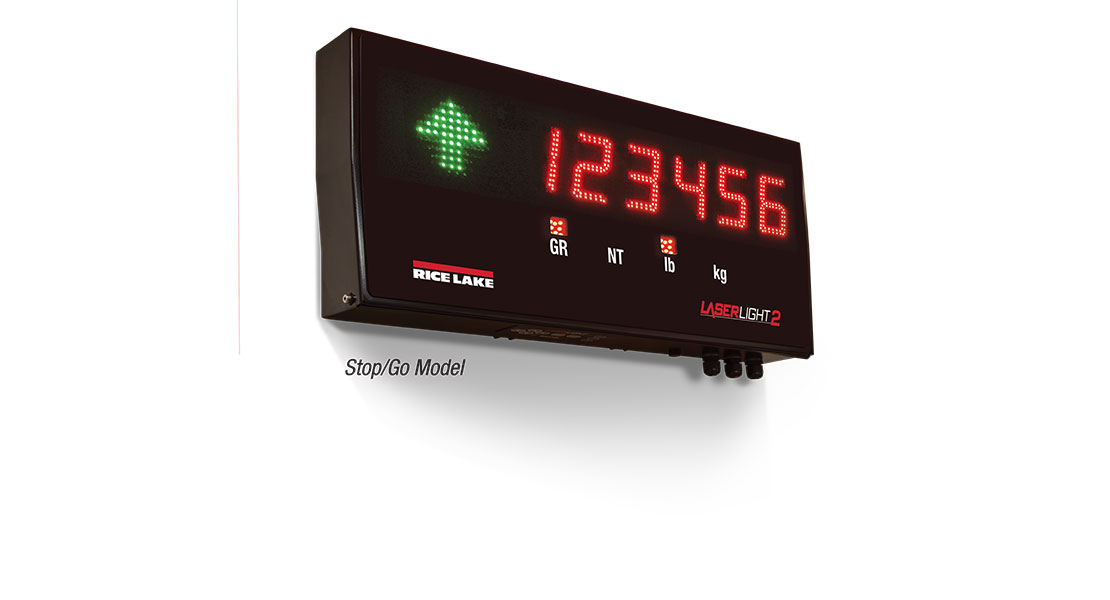

  • Red, green and arrow lights in stop/go version, set with either digital input or serial command

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

UL Listed

WARNING: Cancer and Reproductive Harm California Proposition 65

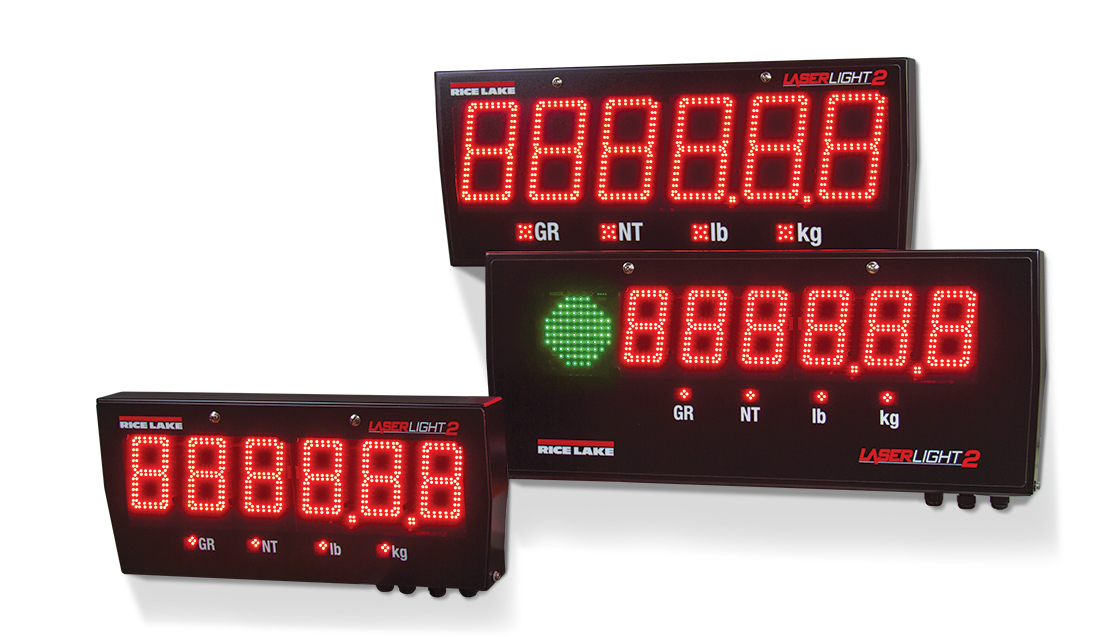

1 US Laserlight2 4In 6In Stopgo Leftface

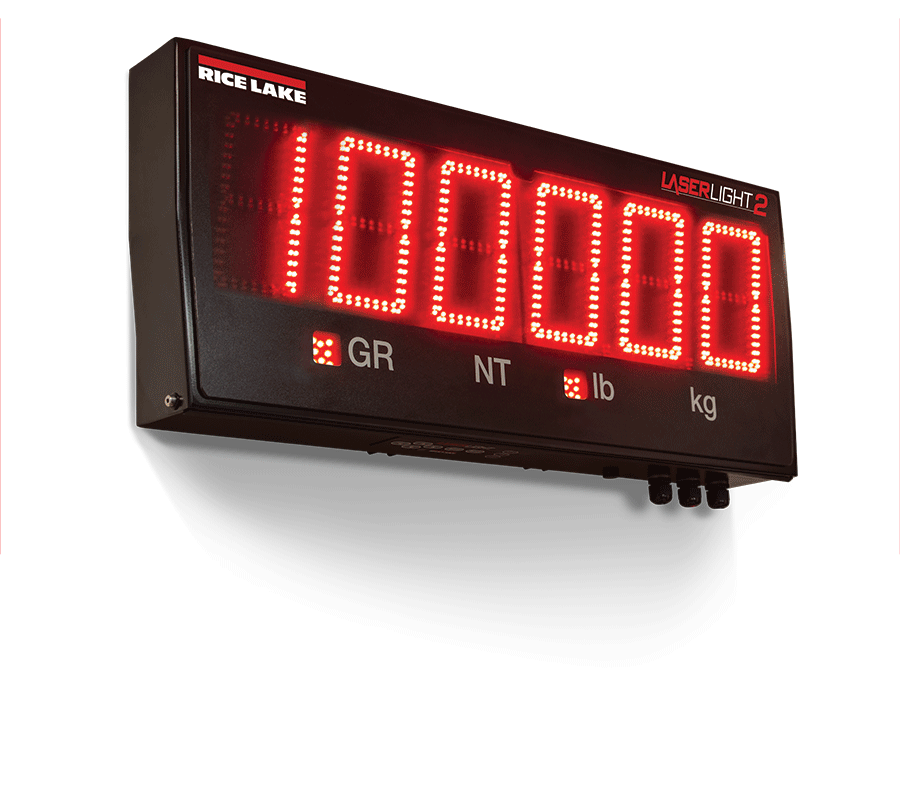

Rice Lake’s LaserLight2 Provides Unbeatable Visibility

Prominently display weight, numeric data and messages with the LaserLight2 LED remote display. The display features a nonglare lens that provides easy-to-read seven-segment, six-digit characters. The LaserLight2 ensures visibility in dark conditions and reduces washout in direct sunlight. Built with a sturdy enclosure, internal components are safe in harsh conditions, providing peak performance for any application.

Display:
6-digit, 7-segment discrete red LED lamps
Contrast enhanced optical filtering lens
1 or 2 place decimal or comma indication
Four annunciators for GR, NT, lb, kg
4 in red, green ball/arrow in stop/go model

Maximum Viewing Distance:
4 in: 100 ft (30 m)
6 in: 150 ft (46 m)

Input Interface:
RS-232, RS-485, 20 mA current loop (active or passive, switch selectable)

Output Interface:
Configurable echo out port or RS-232

Input Data Format:
Baud Rate: 1200, 2400, 4800, 9600 and 19200
Self-learning or software selectable

Character Format:
7 or 8 data bits; even, odd, or no parity; 1 or 2 stop bits, self-learning or software selectable

Update:
Continuous or out-of-motion only; software selectable

Power Consumption:
AC voltages: 100/240 VAC,  50/60 Hz
4 in: 21 watt
6 in: 27 watt

Time:
12- or 24-hour format

Date:
US or ISO format

Rating/Material:
IP66 weathertight, mild steel, powder coated

Temperature:
Operating:
-40 to 120 °F (-40 to 49 °C)

Warranty:
Two-year limited

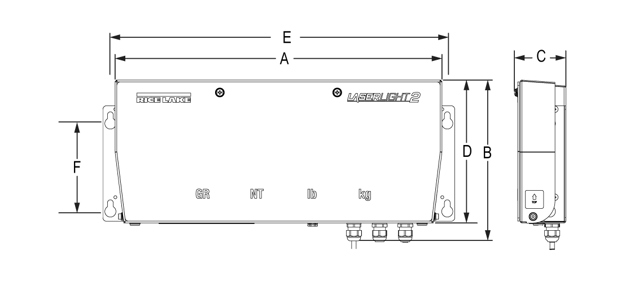

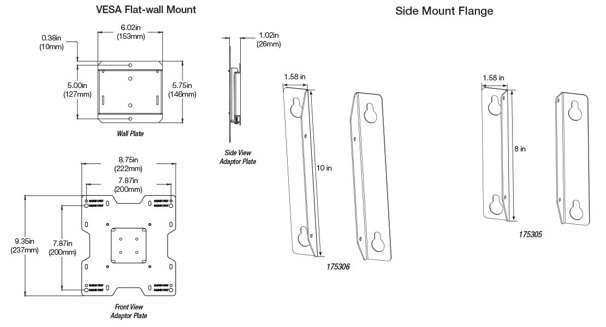

Dimensions
22-inch Enclosure (Four-inch Model)
A 22.28 in (565 mm) D 9.80 in (250 mm)
B 10.96 in (280 mm) E 23.00 in (584 mm)
C 3.28 in (85 mm) F 6.00 in (152 mm) 3/8 inch bolt
31-inch Enclosure (Six-inch and Stop/Go Models)
A 30.63 in (780 mm) D 12.77 in (325 mm)
B 13.94 in (355 mm) E 31.00 in (787 mm)
C 3.73 in (95 mm) F 7.75 in (197 mm) 3/8 inch bolt
Flanges add 2.00 in width



Resources/Downloads

Title View Email Category Type
1280 in Full Control View Email Indicators / Controllers Application Story
Birchwood's Bluegills View Email Bench Scales Application Story
Fair Weight View Email Agriculture|Livestock Scales Application Story
RoughDeck® Sets World Record View Email Floor Scales|Remote Displays / Scoreboards Application Story
Time for Bourbon at O.Z. Tyler View Email Floor Scales Application Story

Title Download Email
LaserLight2 Remote Display Catalog Page Download Email

Title Version Revision Download Email Category Archived
LaserLight2 Series Technical Manual I Download Email Remote Displays / Scoreboards No
LaserLight Series Pole Mount Kit Installation Addendum D Download Email Remote Displays / Scoreboards No
ConnexLink Wireless Radio 900 MHZ Installation for LaserLight2 B Download Email Remote Displays / Scoreboards No

Title Download Email
LaserLight 2 Replacement Parts Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
LaserLight2 Series Download Email Remote Displays / Scoreboards

Title Version Size Release Date Download Email
LaserLight2 Firmware 3.04 115 KB 02/08/2018 Download Email

Title View Download Email Category
Connecting a Stop and Go LaserLight to a 920i with iRev View Email Software|Indicators / Controllers|Remote Displays / Scoreboards

Parts

(includes flange-mount hardware)

Part # Description List Price Cart/Quote
167091 Display,LaserLight2 4-IN 4 inch LED, 115/230VAC, Painted Steel Enclosure with Flange Mount

List Price: $2,015.00
167092 Display,LaserLight2 6-IN 6 inch LED, 115/230VAC, Painted Steel Enclosure with Flange Mount

List Price: $2,550.00
167093 Display,LaserLight2 S/G 4 inch LED with Stop and Go Light, 115/230VAC, Painted Steel Enclosure with Flange Mount

List Price: $2,550.00
175286 Display,LaserLight2 SST 4 4 Inch LED, 115/230VAC, Stainless Steel Enclosure with Flange Mount

List Price: $2,400.00
187120 Display,LaserLight2 S/G 4 inch LED with Stop and Go Light, 115/230VAC, Stainless Steel Enclosure Enclosure with Flange Mount

List Price: $2,975.00

(includes VESA-mount hardware)

UL Approved

Options

Part # Description List Price Cart/Quote
175052 RF Kit,LaserLight2 ConnexLink Transceiver Kit

List Price: $835.00
214644 RF Kit,LaserLight2 ConnexLink Client Kit

List Price: $495.00
175213 VESA Mount,Low Profile Flat Wall Mount 200mm Hole Pattern 22-40 Inch Displays

List Price: $95.00
175305 Opt Kit,LaserLight2,4 IN. Mounting Bracket

List Price: $29.00
175306 Opt Kit,LaserLight2,6 IN. Mounting Bracket

List Price: $29.00
179910 Opt Kit,LL2,4 IN. SST Mounting Bracket

List Price: $32.00
187124 Opt Kit,LL2,6 IN. SST Mounting Bracket

List Price: $42.00
75856 Pole,Mount Kit LaserLight2 4 inch Remote Display & LaserLight3 , Summit Gray

List Price: $280.00
77775 Pole,Mount Kit LaserLight 6 inch Remote Display

List Price: $280.00
177865 Pole Mount,LaserLight2 Displays 2-Inch To 6-Inch Poles

List Price: $90.00
178790 Offset Mounting Plt Kit LaserLight2 Displays

List Price: $82.00
181224 Visor Kit,LaserLight2 4 inch Model, 22 inch Enclosure

List Price: $190.00
181801 Visor Kit,LaserLight2 6-In or 4-In Stop/Go Model, 31 inch Enclosure

List Price: $205.00

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.

Related Products

Msi 3460 Chall3

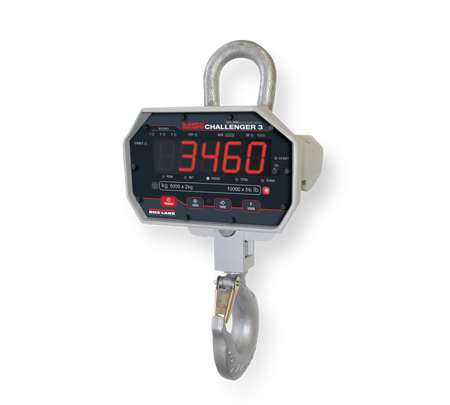

MSI-3460 Challenger 3 Crane Scale

MSI-3460's latest instrumentation technology is the central enhancement of the Challenger 3, bringing industry-leading weighing features of previous Challenger designs to a whole new level.

WEB SC MSI 4260 Portaweight

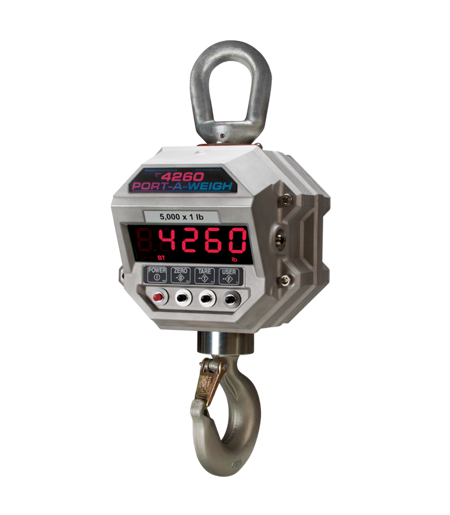

MSI-4260 Port-A-Weigh Industrial Crane Scale

For medium- to heavy-capacity and duty-cycle needs, the MSI-4260 Port-A-Weigh & MSI-4260 IS Intrinsically Safe Crane Scale have an established reputation as the industry standard in overhead weighing.

rl-msi-8004hd-remote-display

MSI-8004HD Indicator/RF LED Remote Display

The MSI-8004HD Indicator and RF Remote Display has all of the heavy-duty versatility of the MSI-8000HD with the added benefit of extremely high visibility in indoor and outdoor applications.

rl-msi-8000-remote-display

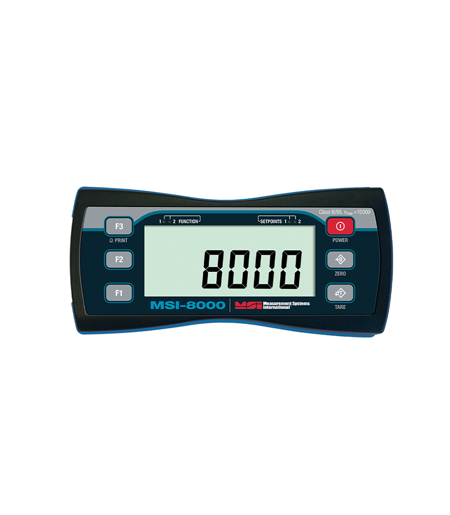

MSI-8000 RF Remote Display

The MSI-8000 RF Remote Display is a full-featured remote display enabling operators to operate weighing systems from a distance not offering harm's way.

rl-msi-8000HD-remote-display

MSI-8000HD Digital Weight Indicator/Remote Display

The MSI-8000HD weight indicator/RF remote display is the heavy-duty version of the reputable handheld MSI-8000 RF remote display.

WEB SC Laserlight M

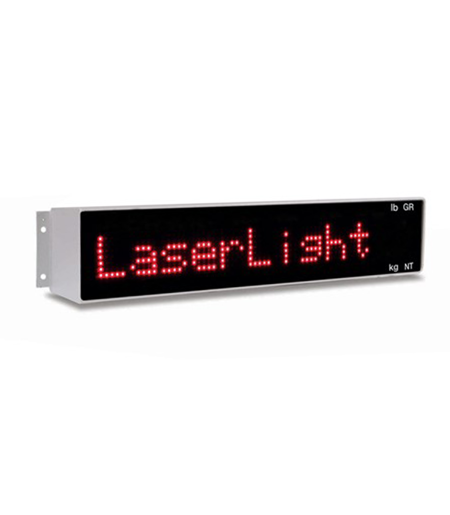

LaserLight® M-Series Messaging Remote Display [DISCONTINUED]
