Load Pin - 2 Inch, 20K Alloy Steel, Environmentally Sealed

This 2-inch load pin is used in Rice Lake's Loadrunner kits and semi-trailer landing gear. This load pin can be paired with load and support collars for applications that have pivot or rotation requirements.

Request More Information

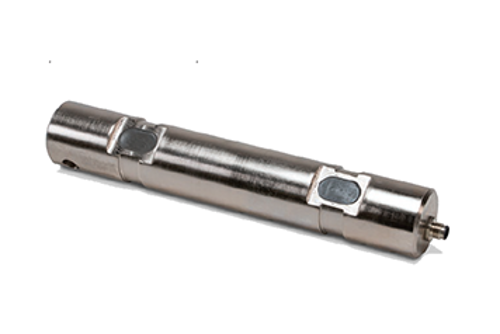

Loadpin 2In

Full Scale Output:
1.3 mV/V

Material/Finish:
Alloy steel

Temperature:
14 °F to 104 °F (-10 °C to 40 °C)

Rated Excitation:
15 VDC (5 to 10 V recommended)

Insulation Resistance:
500 megohms at 50 VDC

Seal Type:
Environmentally sealed

Connector Type:
Turck, M12 4-pin male

Connection Pin Out:
Pin 1 - Excitation +
Pin 2 - Signal +
Pin 3 - Excitation -
Pin 4 - Signal -

Warranty:
One-year limited

Resources/Downloads

Title Download Email
Load Pin - 2 Inch, 20K Catalog Page Download Email
PL Series Load Cells Catalog Page Download Email

Parts

Part # Description List Price Cart/Quote
181895 Load Pin, Load Runner OB Onboard 20K Rated Output: 1.3mV/V, Pin1: EX+ PIN2: SIG+, PIN3: EX-, PIN4: SIG-, SAME AS 131207 LOAD RUNNER KIT

List Price: $1,050.00
