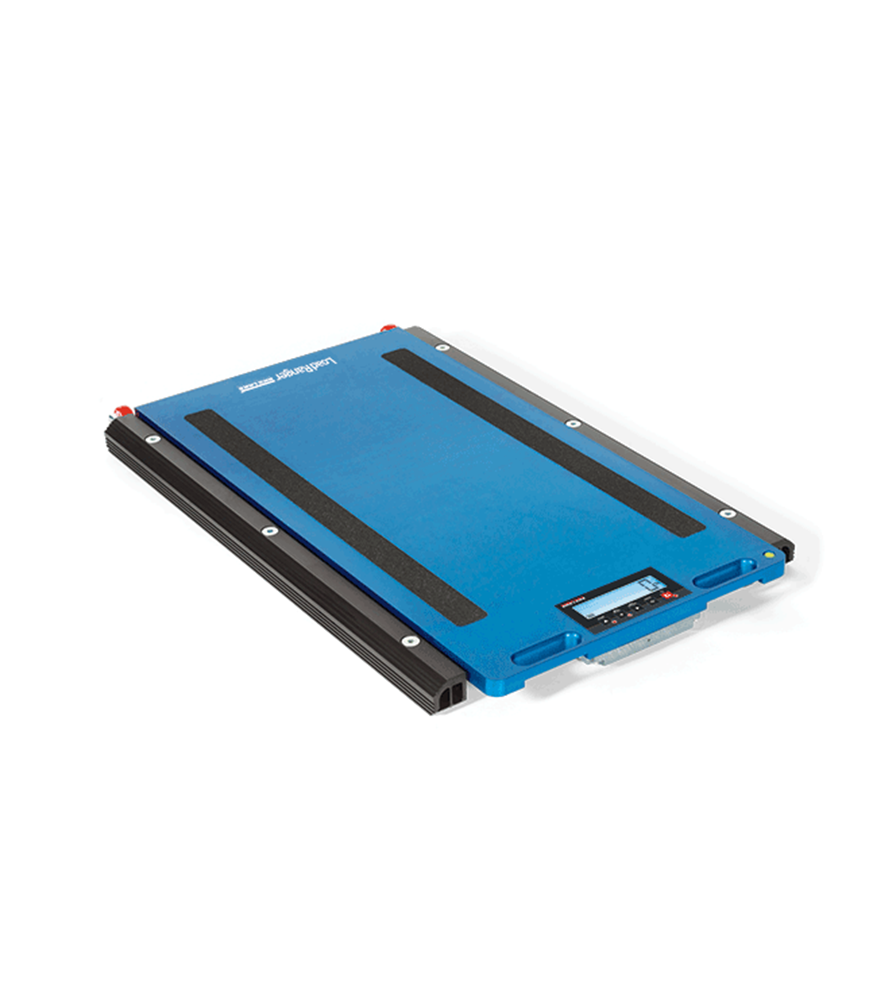

Load Ranger Wireless Wheel Pad Scale
Up to 16 individual pads communicate wirelessly to the indicator
Industrial RF radio module to communicate with optional indicator
Integrated wheels and nonslip rubber under platform
Internal rechargeable battery with 40 hours of battery life

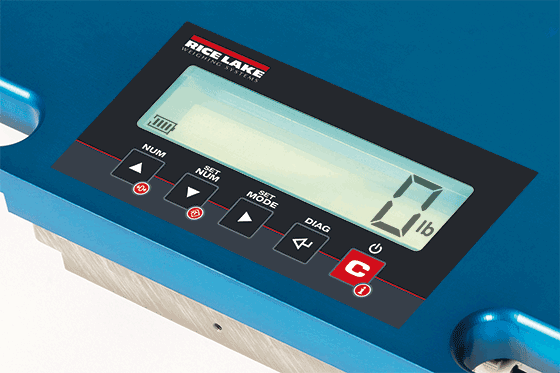

Built-in indicator on each scale with 1 in character display
IP67 rating
Cover plate protects built-in indicator

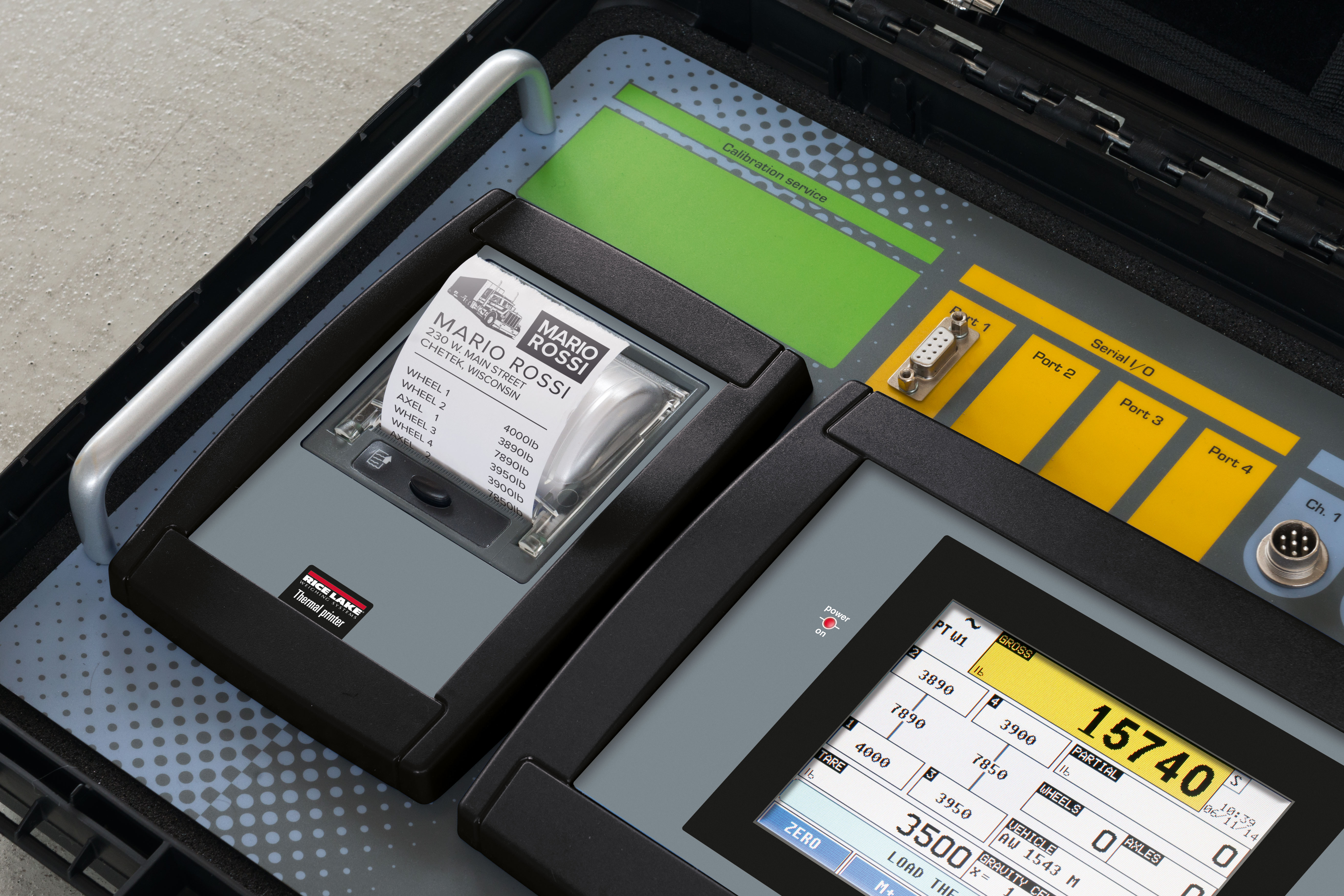

Optional Remote Indicator with Integrated Printer in Carrying Case
ABS carrying case: 1 ft × 1 ft 6 in × 7 in
Backlit graphic display with touchscreen technology
Internal battery with 10 hours of battery life
Real-time clock
Permanent data storage
Direct thermal receipt printer
Wheel Weighing Software
Multi-scale function mode weighs with up to 16 individual pads (eight sets)
Static axle weighing function, up to two channels
Calculation of center of gravity
Semi-automatic and preset tare
Selection of displayed data on LCD touchscreen
1,000 field database
Print and display list of last 3,500 vehicles
Options/Accessories
Leveling modules
Aluminum ramps
NTEP Class IIII (Select sizes and capacities only, consult factory for more information)
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65

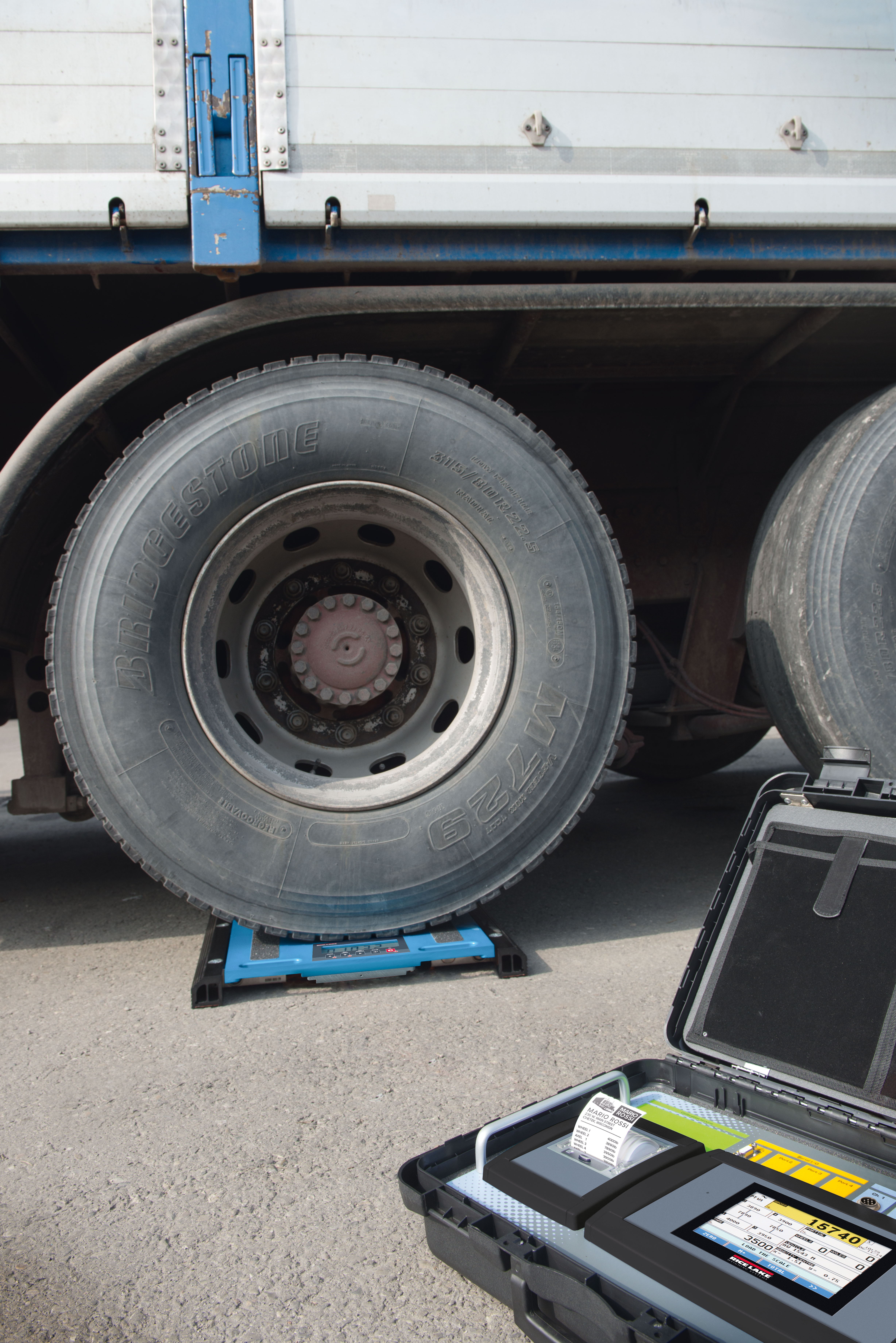

Vehicle Weighing Where You Need It
Load Ranger weigh pads are portable vehicle weighing scales ideal for mobile and temporary applications. They offer an adaptable solution for vehicle weighing. With unmatched accuracy, Load Ranger weigh pads capture wheel or axle weights, either individually or in sets of up to 14 pads.
To simplify operation, Load Ranger weigh pads can be paired with an optional touchscreen digital weight indicator and thermal printer fitted in an ABS plastic transport case. This all-in-one solution allows remote weighing from integrated wheel pad sets and ticket printing.
Load Ranger Specifications
Power: Display: System Accuracy: | Communication: Construction: Temperature: | Effective Wireless Communication Range: Warranty: Approvals: |
Load Ranger Dimensions
| Platform Dimensions | |||
|---|---|---|---|
| RF-MD | RF-WD | RF-XWD | |
| A | 1 ft 8 in (511 mm) | 1 ft 10 in (564 mm) | 2 ft (611 mm) |
| B | 2 ft (611 mm) | 2 ft 8 in (813 mm) | 3 ft 3 in (991 mm) |
| C | 2.28 in (58 mm) | 2.28 in (58 mm) | 2.28 in (58 mm) |
| D | 1 ft 4 in (406 mm) | 1 ft 6 in (457 mm) | 1 ft 8 in (511 mm) |
| E | 1 ft 10 in (564 mm) | 2 ft 6 in (750 mm) | 3 ft 1 in (950 mm) |
| Loading Surface Dimensions | |||
|---|---|---|---|
| RF-MD | RF-WD | RF-XWD | |
| F | 1 ft 3 in (381 mm) | 1 ft 11 in (584 mm) | 2 ft 5 in (737 mm) |
| G | 1 ft 4 in (406 mm) | 1 ft 6 in (457 mm) | 1 ft 8 in (511 mm) |
Resources/Downloads
Manuals
| Title | Version | Revision | Download | Category | Archived | |
|---|---|---|---|---|---|---|
| Load Ranger WPAN Communication Wheel Weigh Pad System Technical Manual | E | Download |  Email |
Portable Vehicle Scales|Vehicle Scale System | No | |
| Load Ranger Wheel Weigh Pads Quick Start Guide | C | Download | Email |
Portable Vehicle Scales|Vehicle Scale System | No | |
| Load Ranger 2.4 GHz RF Wheel Weigh Pad System Technical Manual | C | Download | Email |
Portable Vehicle Scales|Vehicle Scale System | No | |
| Load Ranger 2.4 GHz RF Module Retrofit Quick Start Guide | B | Download | Email |
Portable Vehicle Scales|Vehicle Scale System | No | |
| Load Ranger 2.4 GHz RF Quick Start Guide | B | Download | Email |
Portable Vehicle Scales|Vehicle Scale Accessories | No |
Parts
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 227314 | Indicator,Load Ranger-2G4 Load Ranger indicator with 2.4Ghz,w/AF08,includes RF1TR-1&BLTH-1 installed, Touch Screen, Includes US & EU Adapters (Replacement for 212108) |
List Price: $2,200.00 |
Load Ranger RF-MD 2.4 GHz
Load Ranger RF-WD 2.4 GHz
Load Ranger RF-WD 2.4 GHz NTEP
Load Ranger RF-XWD 2.4 GHz
Options
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 181881 | Ramp, LoadRanger-S Ramp for S-Series Load Ranger scale, AL |
List Price: $280.00 |
|
| 181882 | Ramp, Load Ranger-W Ramp for Load Ranger W-Series scale, AL |
List Price: $310.00 |
|
| 181883 | Ramp, Load Ranger-EW Ramp for Load Ranger EW Series, AL |
List Price: $340.00 |
|
| 182053 | Paper Roll,57mm x30m AI-1 12mm Core 51mm OD, RPT57C, for Load Ranger printer, RL-HPJ Pallet Jack Scale Sold by the Roll |
List Price: $3.00 |
|
| 185064 | Power Supply, 0.35A 100-240VAC input, 5.0-14.4VDC, Max 1.0A Output Load Ranger Wireless Wheel Pads, Battery Charger for NiMH/NiCd Batteries, UL Approved |
List Price: $130.00 |
|
| 192591 | Power Adapter,Load Ranger Indicator External 110-230 VAC IN, 12 VDC Out |
List Price: $95.00 |
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
Related Products

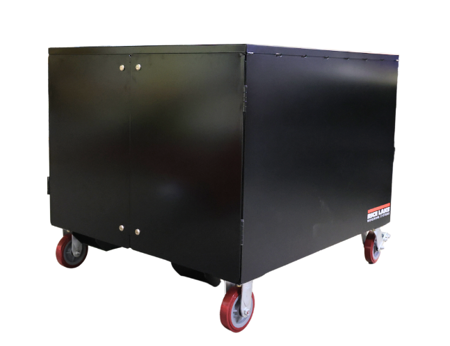

Load Ranger Transport Cart
The Load Ranger Cart can hold up to six Load Ranger wheel pads and one Load Ranger remote indicator case.
