MS202 Permanent Monorail Scale

  • 8 in live-rail designed to weigh one trolley at a time

  • 750 lb × 0.5 lb (3/8 in rail)

  • 1500 lb × 0.5 lb (1/2 in rail)

  • Available for rail sizes 3/8 × 2-1/2 in or 1/2 × 2-1/2 in

  • Requires less than 41 in of straight rail to install (14 in between rail hangers)

  • Nickel-plated mild steel and stainless steel construction available

  • High accuracy, stainless steel load cell

  • 20 ft of cable

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO Measurementcanada Approved BW

WARNING: Cancer and Reproductive Harm California Proposition 65

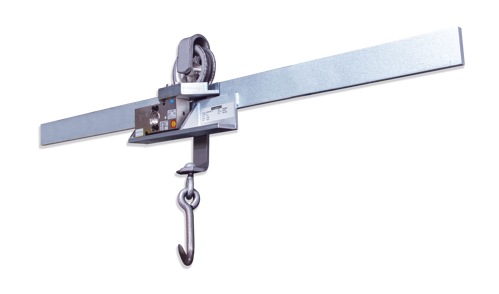

1 US Monorailscale

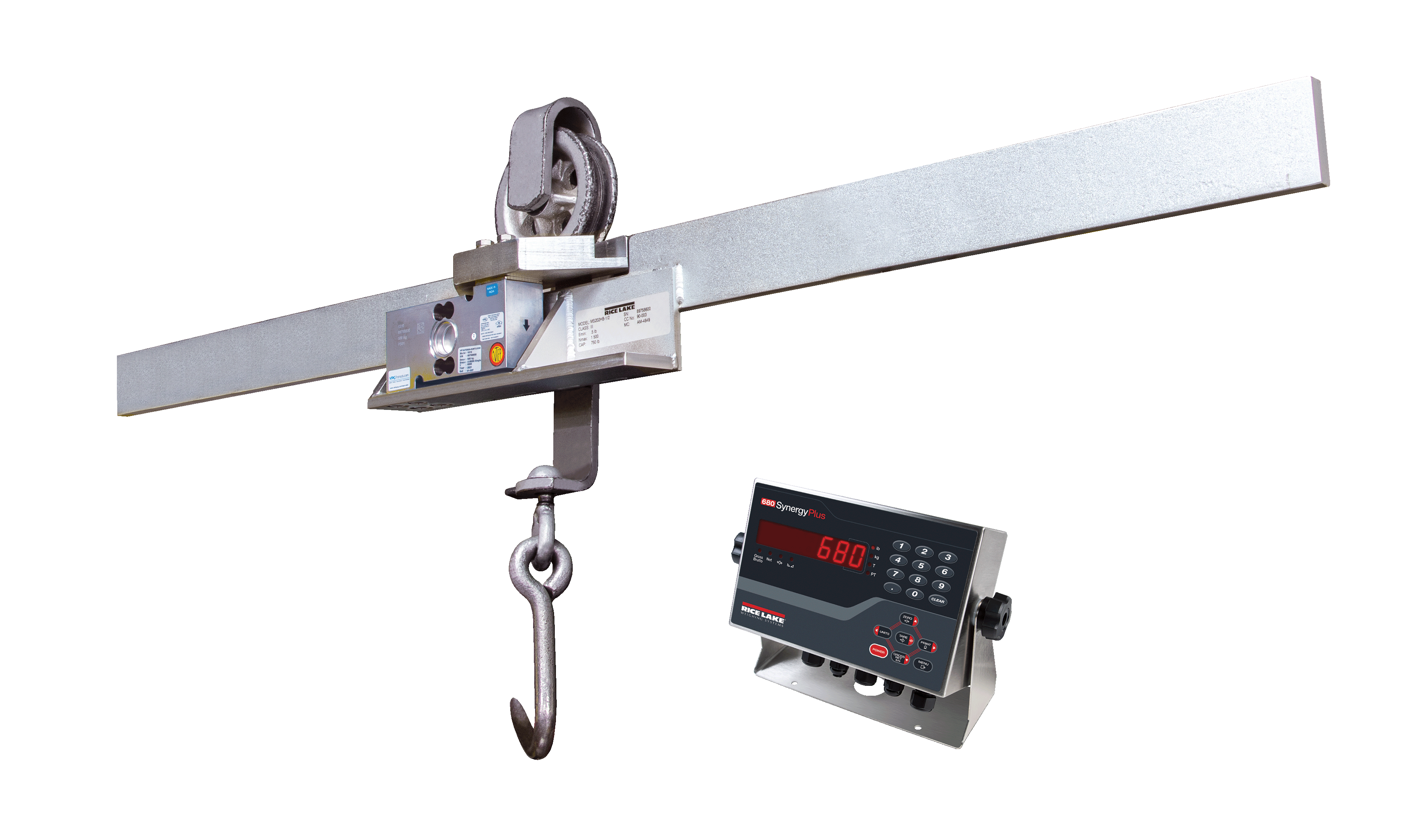

The MS202 permanent monorail scale has an eight-inch live rail with a 750 pound capacity. The MS202 permanent monorail scale comes with 52 inches of either 3/8-inch or 1/2-inch rail and is best suited for static placement. To install this scale, simply replace a straight section of rail with the MS202 rail. This creates a more permanent scale for your application.

Construction:
A36 mild steel construction with electroless nickel (EN) plating or
304 series stainless steel construction
304 series stainless steel hardware

Load Cell Construction:
Stainless steel

Bridge Resistance:
750 lb: 350 ohm
1,500 lb: 1,000 ohm

Rated Output:
2 mV/V

Nonlinearity:
0.03% full scale

Warranty:
One-year limited

Approvals:
NTEP 90-003 Class III, 3,400 d (Max)
Measurement Canada AM-4849 (750 lb/375 kg) stainless steel only
Measurement Canada AM-6244 (1,500 lb/680 kg)

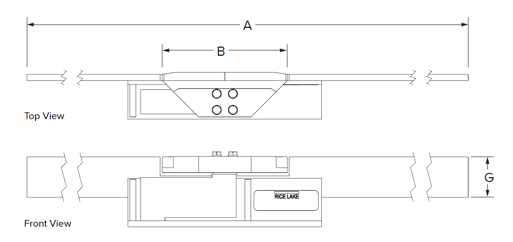

Dimensions MS202 750 lb Capacity
A 52.00 in ±0.03 in (1,321 mm ±0.76 mm)
B 8.00 in (203 mm)
G 2.50 in (63.5 mm)

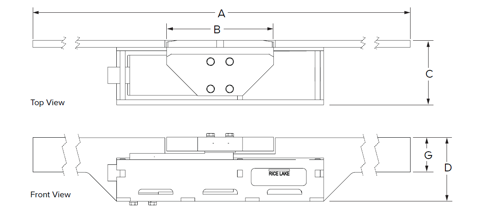

Dimensions MS202 1,500 lb Capacity
A 52.00 in ±0.03 in (1,321 mm ±0.76 mm)
B 8.00 in (203 mm)
C 4.66 in (118mm)
D 4.59 in (117 mm)
E 2.50 in (63.5 mm)

Resources/Downloads

Title Download Email
MS202 Monorail Catalog Page Download Email

Title Version Revision Download Email Category Archived
MS200 and MS202 Monorail Scale Installation Manual G Download Email Monorail Scales No

Title Collateral Wizard Request Download Email Category
Monorail Scale Solutions Download Email Monorail Scales
Washdown Solutions Request Download Email Washdown Scales

Title View Download Email Category
Monorail Scale for Overhead Trolley Lines View Download Email Overhead Weighing Systems|Monorail Scales

Parts

MS202HB for 3/8-inch Rails

Part # Description List Price Cart/Quote
19744
Scale,Monorail MS202HB- 3/8 750x.5 lb NTEP III 1.5 USDA, Electroless Nickel Plated

List Price: $2,730.00
196885
Scale,Monorail MS202HB-SS 3/8in 750LB Cap. x .50LB NTEP III 1.5

List Price: $3,045.00

MS202HB for 1/2-inch Rails

Options

Part # Description List Price Cart/Quote
16984 LIT,Installation Manual MS200 and MS202 Monorail Scale (English)

List Price: $5.00
167585 Load Cell,SPT 1510-500kg 20ft 2mv/v 350 Ohm TH SST WS NTEP III S Monorail

List Price: $850.00
227092 Load Cell, SPT RLPCBC-60 1000kg 2 mV/V 1000 ohm 20ft SST HS FM IP69K NTEP III 5 S

List Price: $1,025.00
216728 Monorail, Config and Cal Indicator Configuration and Monorail Calibration. Includes: Larger Crate Required for Indicator and Monorail Packaging.

List Price: $315.00
