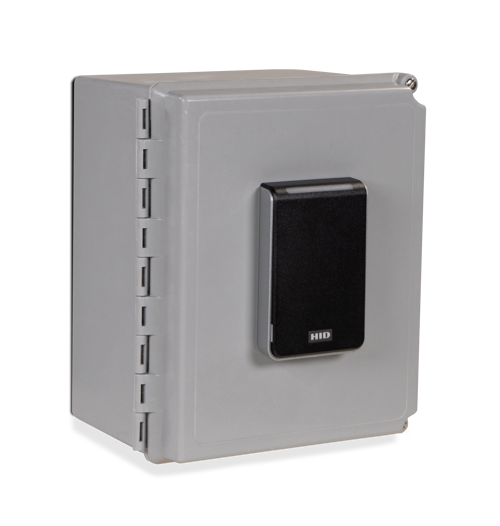

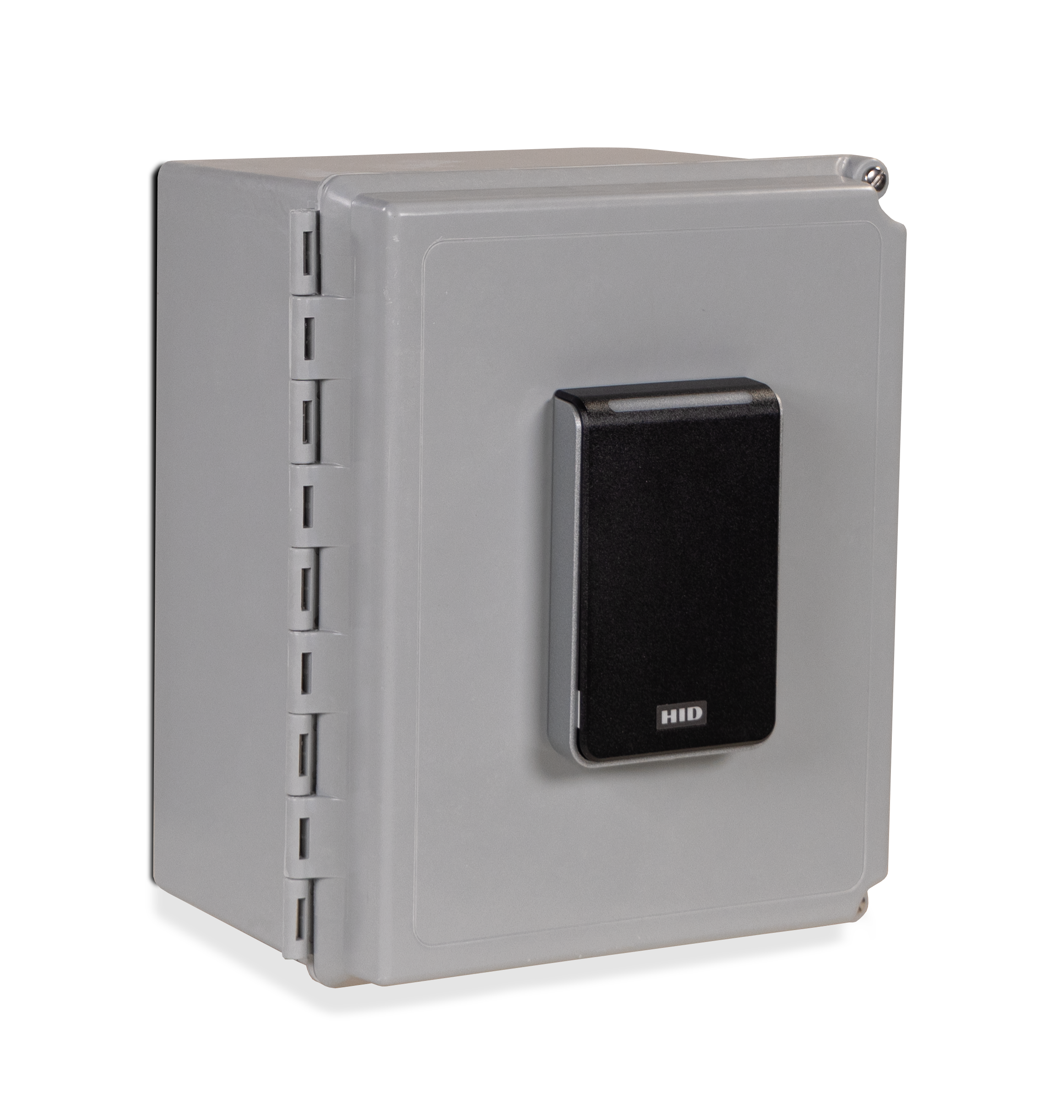

Remote HID Box

Power Supply:
120 VAC input at 10 W, 5 VDC Output 2 at amp

Read Range*:
2.5 to 4.5 in (6.3 to 11.4 cm) with HID iCLASS® card
1.0 in (2.5 cm) with HID iCLASS key
1.0 in (2.5 cm) with HID iCLASS tag
1.5 to 2.0 in (3.8 to 5.0 cm) with HID iCLASS prox
1 to 2 in (2.5 to 5.0 cm) with MIFARE® card (serial number only)

*Using ISO 15693 mode (except MIFARE®). Dependent upon installation conditions. Please note that all iCLASS credentials are available in either a 2 K bits (256 Bytes) or 16Kbits (2 KBytes) configuration.

Transmit Frequency:
13.56 MHz

Cable Distance:
RS-232-C 50 ft

Current Requirements (Avg/Peak):
80/260 mA at 12 VDC

Material:
FRP

Dimensions:
(L × W × H)
10.50 × 8.91 × 6.25 in
(267 × 226 × 159 mm)

Temperature:
Operating: -31 to 150 °F (-35 to 65 °C)

Humidity:
5 to 95% RH (non-condensing)

Weight:
8.8 oz (249.5 g)

Pending Certifications:
Taiwan, Singapore, Germany VdS

Approvals Power Supply:
CE Marked
TUV
UL61010/cUL
CSA C22.2 o. 107.1
UL1604: Class I Div 2
EN 50175
LVD: EN662368
EMC: Directive EN61204-3
EMI: Class B, EMS Industrial

Pending Approvals HID:
Taiwan, Singapore, Germany VdS

Approvals HID:
cULus 294
FCC Certification
Canada Certification
CE Mark (Europe)
New Zealand
Australia c-Tick
