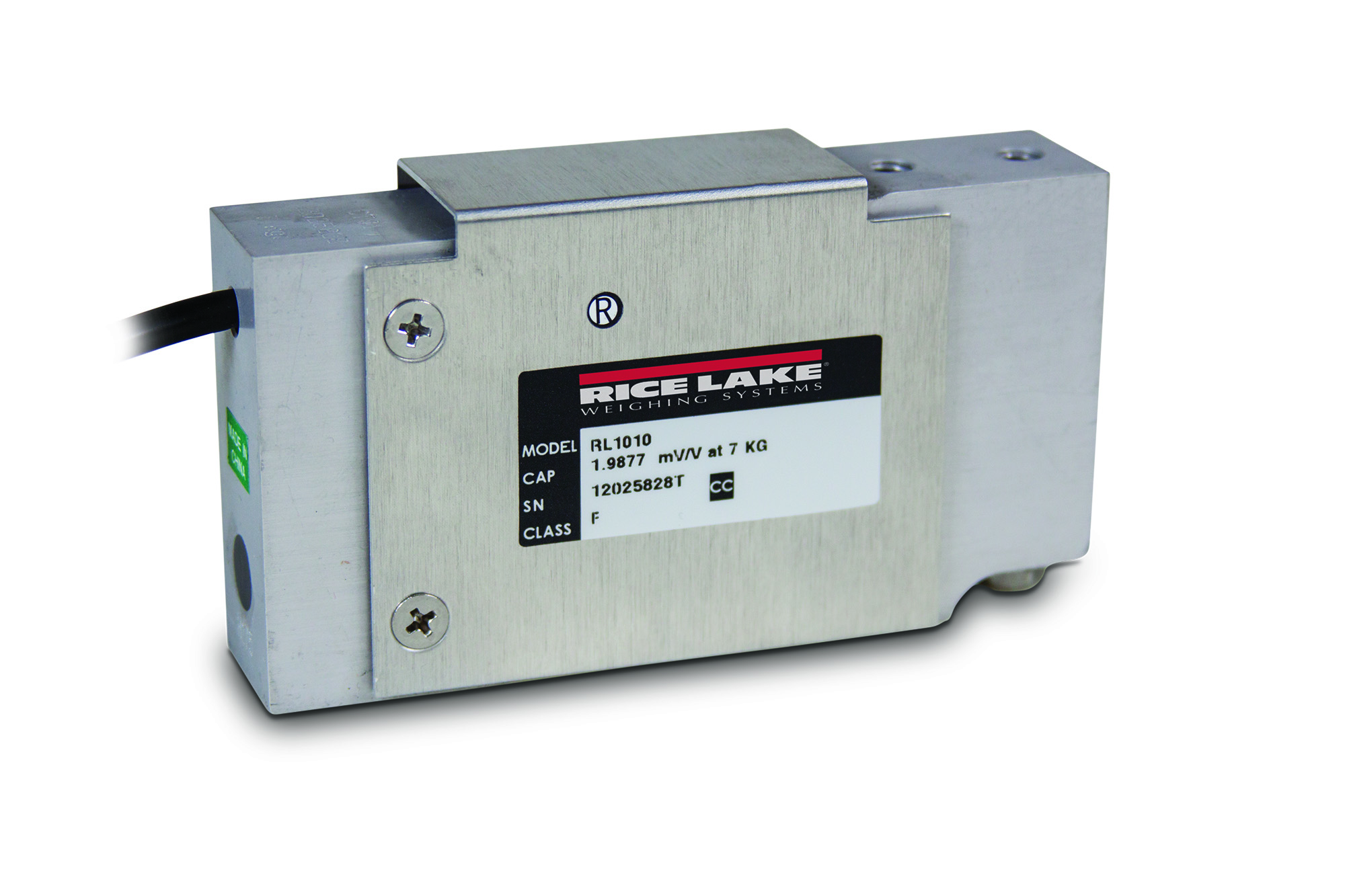

Rice Lake RL1010 Aluminum, Single Point Load Cell

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (±3) ohm, nominal

Input Resistance:
415 (±15) ohm

Material/Finish:
Anodized aluminum

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Potted: IP67
Unpotted: IP65

Safe Overload:
150% at center of loading point, full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
0.3 to 0.5 mm full scale

Cable Length:
Potted: 10ft
Unpotted: 3 ft

Cable Diameter:
0.200 in PVC jacket

Cable Color Code:
Green +Excitation
Black -Excitation
Red +Signal
White -Signal
Blue +Sense
Brown -Sense

Max Platform Size:
15.75 × 15.75 in

Warranty:
Two-year limited

Approvals:
NTEP 00-062
cFMus
