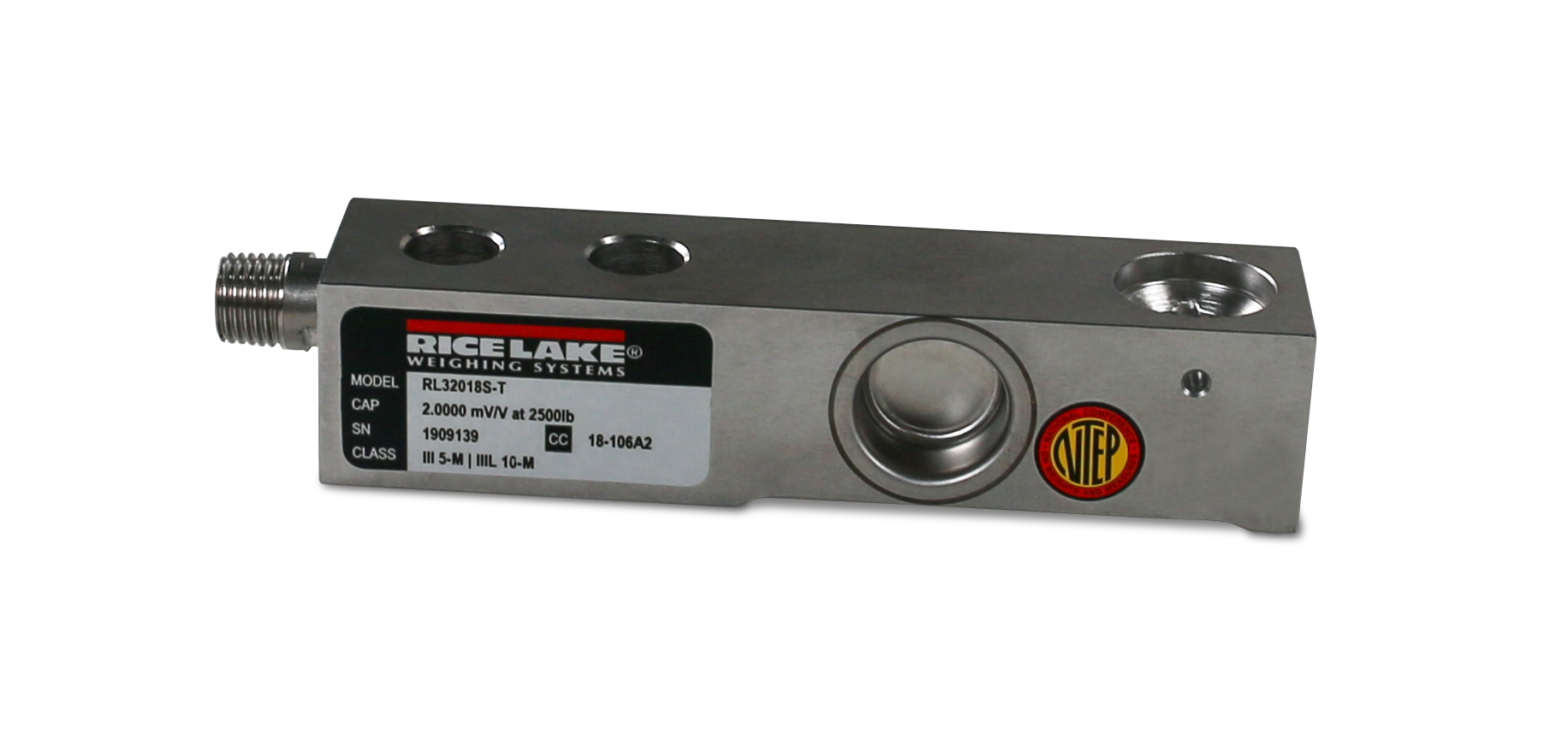

Rice Lake RL32018S-T Stainless Steel, Single-ended Beam Load Cell

This module is a replacement for the RL30745 load cell used in RLTM weigh modules and for the Mettler Toledo® 745 load cell. The RL32018S-T is complete with 15 or 30 feet of cable and has capacities of 500 to 10,000 pounds. It's NTEP Certified and FM approved.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65
Portals 0 Products 055C58a275ee4c14acee510c83487b05 Orig

Full Scale Output:
2.0 mV/V ±0.05%
mV/V/ohm calibration

Output Resistance:
350 (±3) ohm

Input Resistance:
400 (±20) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.017% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
15 ft
30 ft

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Shield is attached to element

Warranty:
Two-year limited

Approvals:
NTEP 18-106
cFMus

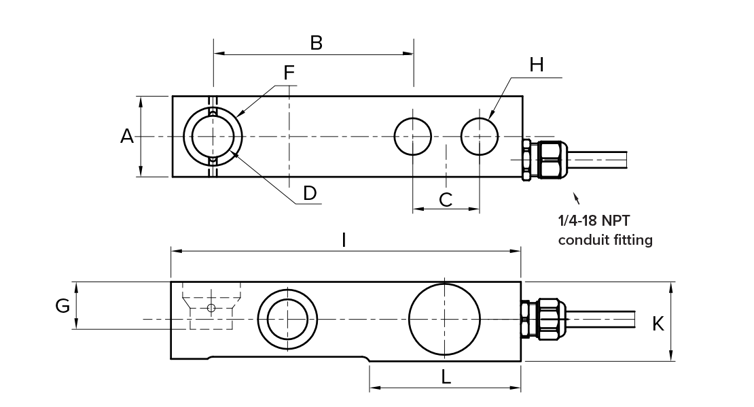

Rated Capacity A B C D F G H I K L
lb/in
500 to 1,250 1.21 3.00 1.00 0.62 0.88 0.68 0.51 5.25 1.19 2.27
2,500 1.21 3.00 1.00 0.62 0.88 0.68 0.51 5.25 1.19 2.27
5,000 1.44 3.00 1.00 0.62 0.88 0.90 0.51 5.38 1.44 2.28
10,000 1.69 3.75 1.50 0.88 1.38 1.15 0.76 6.75 1.69 2.91





Resources/Downloads

Title Download Email
RL32018S-T Load Cell Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Load Cell Wiring Guide Request Download Email Load Cells
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Rice Lake's Load Cell Service, Selection and Speed View Download Email Load Cells

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

15ft Cable

Part # Description List Price Cart/Quote
189189 Load Cell,SEB RL32018S-T 500lb 15ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69K

List Price: $475.00
189190 Load Cell,SEB RL32018S-T 1250lb 15ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69K

List Price: $475.00
189191 Load Cell,SEB RL32018S-T 2500lb 15ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69K

List Price: $475.00
189192 Load Cell,SEB RL32018S-T 5000lb 15ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69K

List Price: $630.00
189193 Load Cell,SEB RL32018S-T 10000lb 15ft 2mv/v 350 Ohm NTEP III 5M EW SST IP69K

List Price: $760.00

30ft Cable

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
