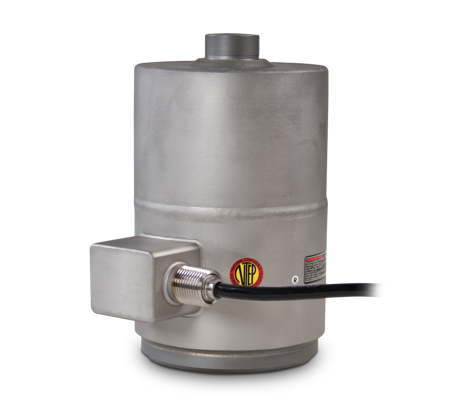

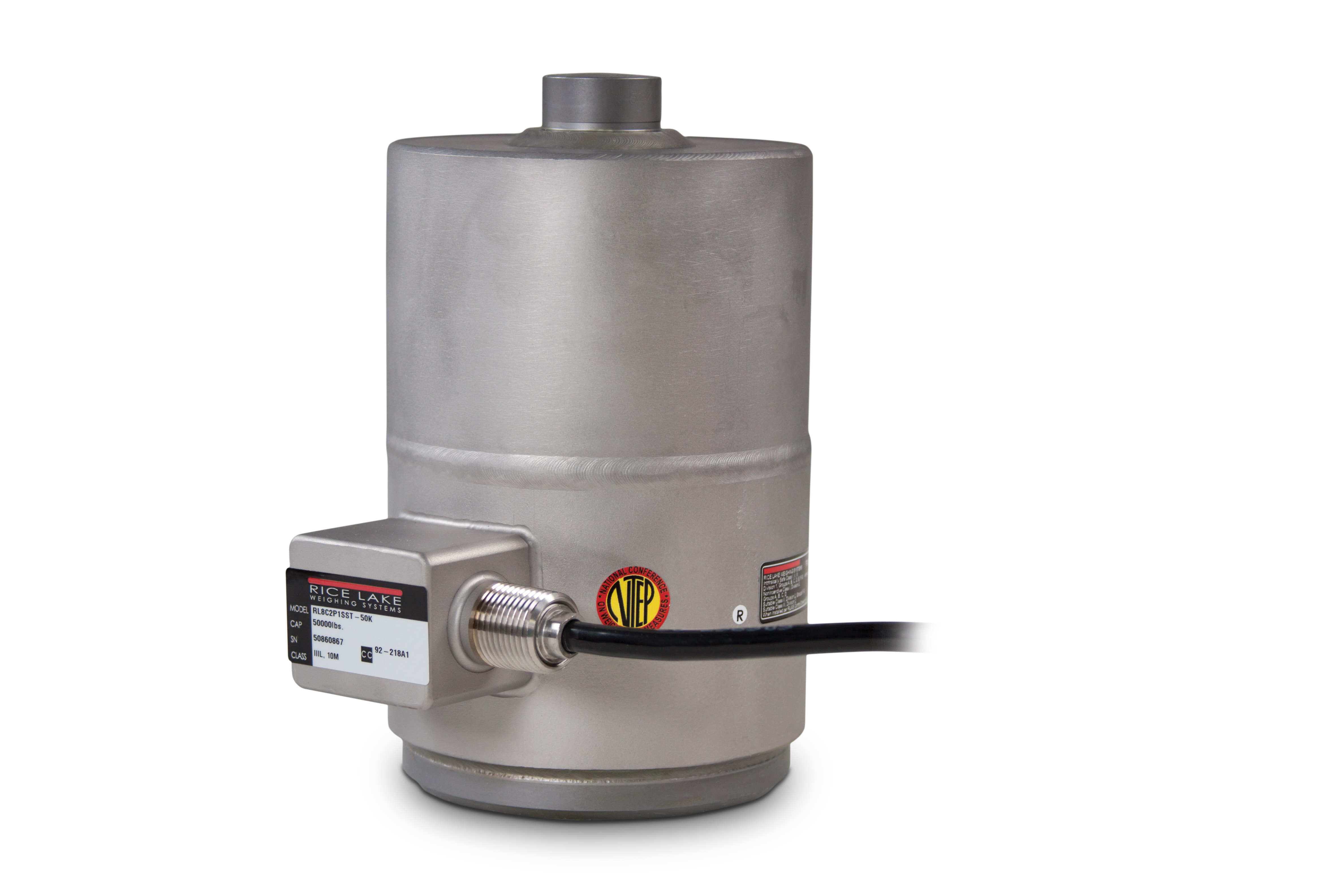

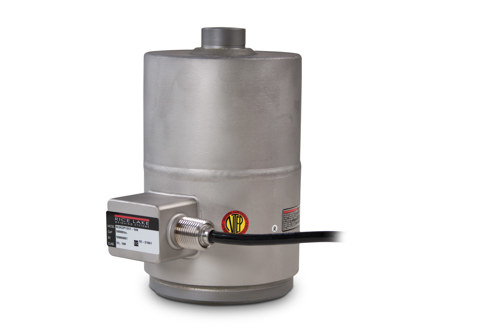

Rice Lake RL8C2P1SST Stainless Steel, Compression Canister Load Cell

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (±3.5) ohm

Input Resistance:
350 (±3.5) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
150% full scale

Rated Excitation:
10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
>1,000 megohm

Deflection at Capacity:
50,000 lb: 0.004 in
100,000 lb: 0.006 in
200,000 lb: 0.009 in

Cable Length:
35 ft

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Orange Shield

Warranty:
Two-year limited

Approvals:
NTEP 92-218
cFMus
