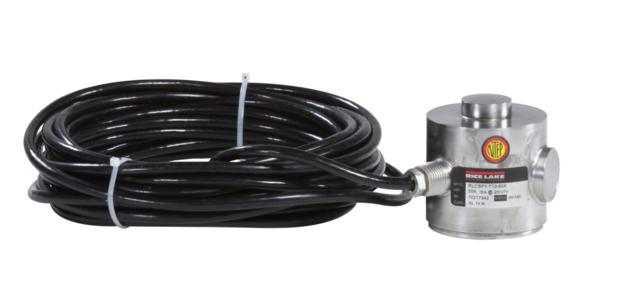

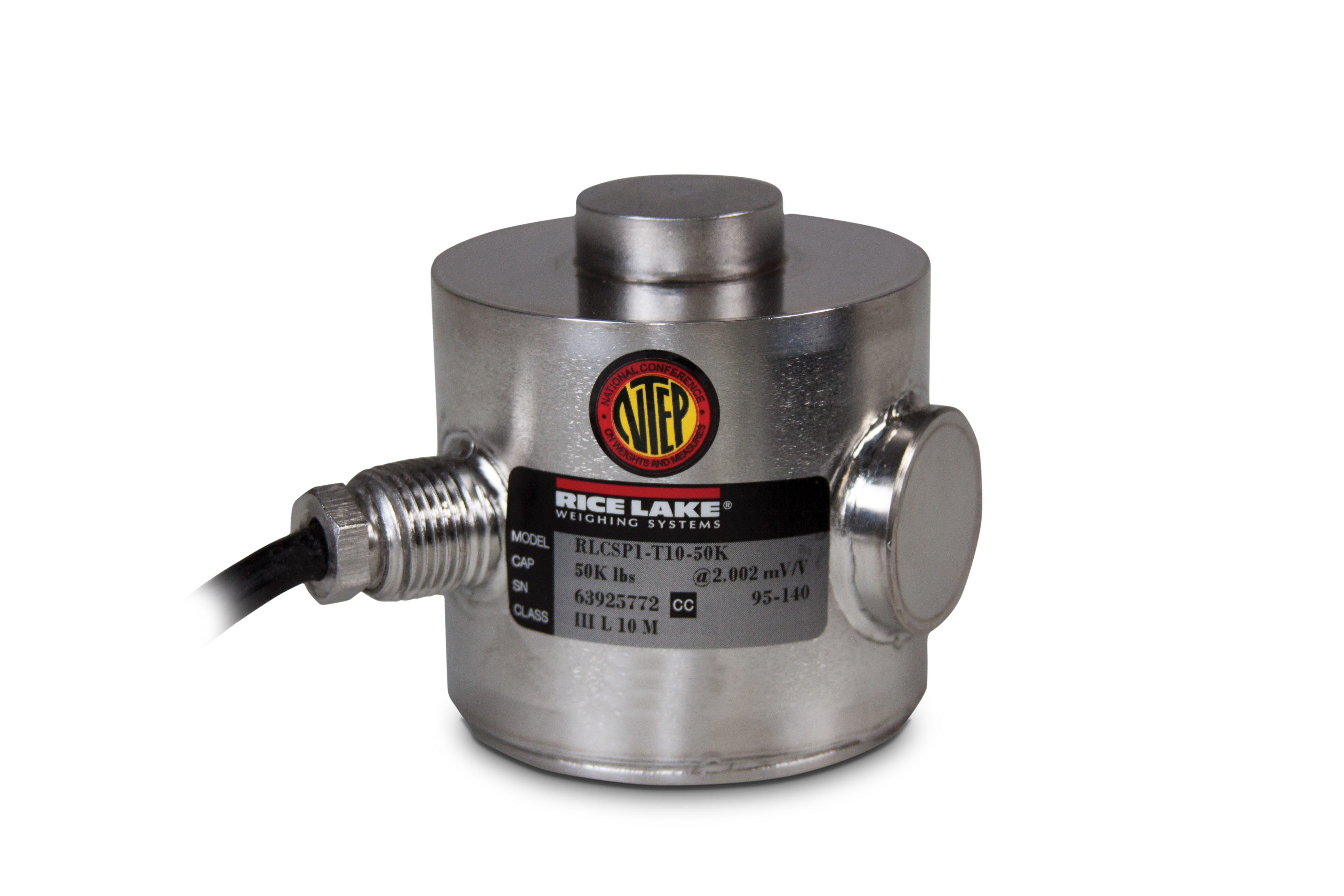

Rice Lake RLCSP1 Stainless Steel, Compression Canister Load Cell

Full Scale Output:
2.0 mV/V

Output Resistance:
475.2 to 484.8 ohm

Input Resistance:
445.5 to 454.5 ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Welded seal, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.03% full scale

Non-repeatability:
0.01% full scale

Insulation Resistance:
1,000 megohm

Deflection at Capacity:
25,000 to 50,000 lb: 0.003 in
100,000 to 125,000 lb: 0.006 in

Cable Length:
35 ft
80 ft

Cable Diameter:
0.305 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Orange Shield

Warranty:
Two-year limited

Approvals:
NTEP 95-140
