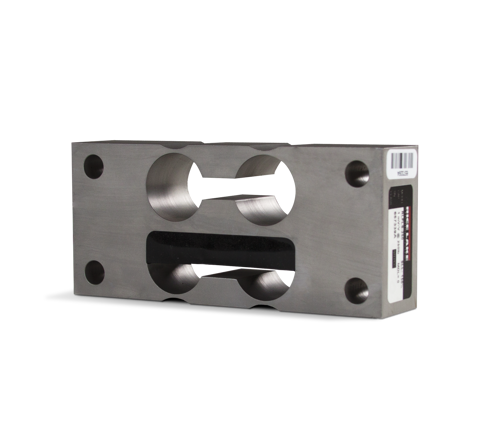

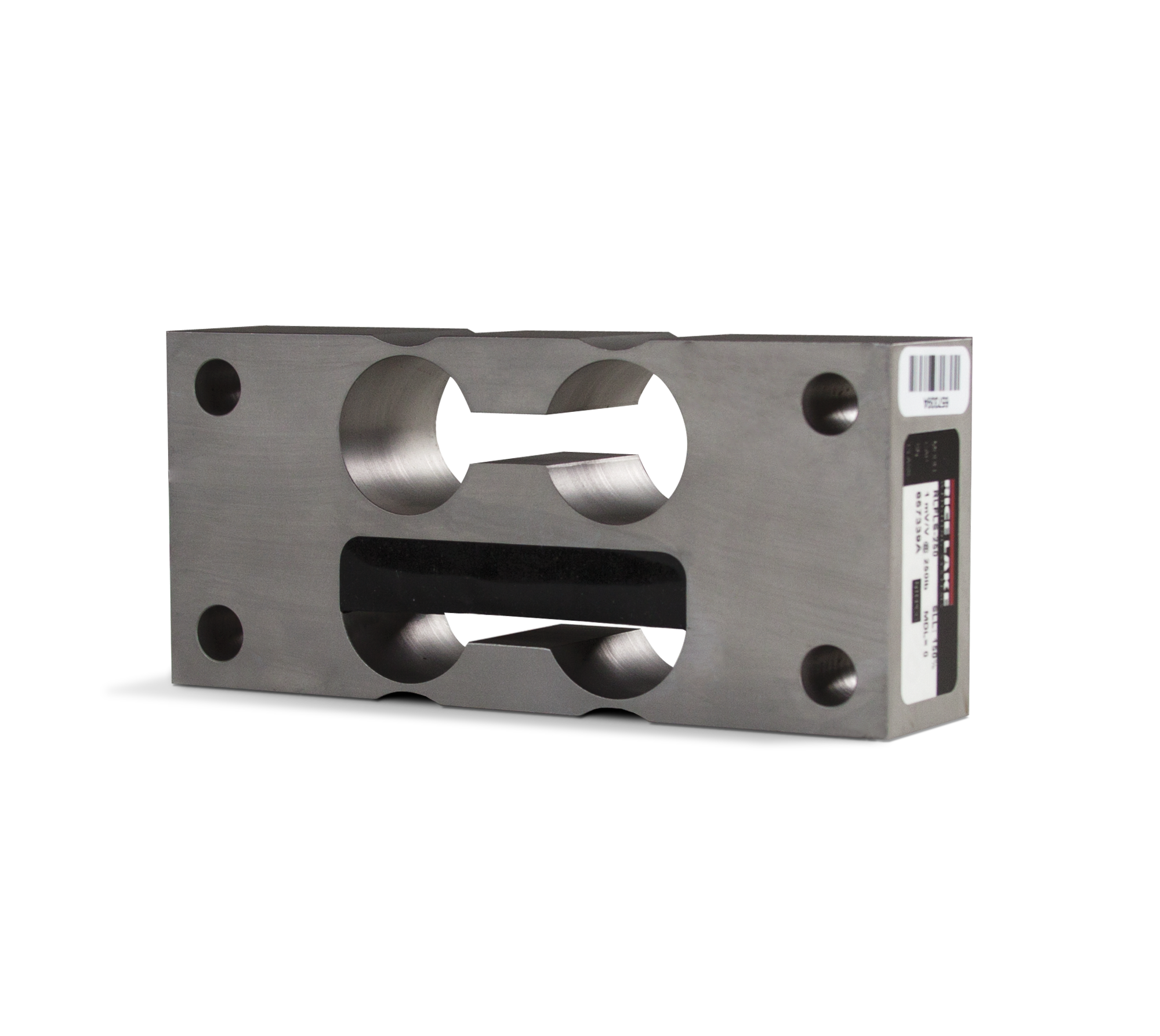

Rice Lake RLFLS Stainless Steel, Potted Single Point Load Cell

The RLFLS is interchangeable with the Avery Weigh-Tronix® FLS and is ideal for bench scales. This load cell features potted cavities, stainless steel and an IP67 rating. It's available in a 50-pound capacity with 10 feet of cable.

Request More Information
Portals 0 Products C6e16e6947484fdea74077edef47f463 Orig

Full Scale Output:
1.0 (±10%) mV/V

Output Resistance:
350 (±3) ohm

Input Resistance:
385 (±10) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 15 VDC

Nonlinearity:
0.02% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft

Cable Color Code:
Green +Excitation
Black -Excitation
Red +Signal
White -Signal

Warranty:
Two-year limited

Rated Capacity A B C D E F H J T
lb/in
50 5.50 2.90 0.74 6.50 2.00 0.50 0.50 0.45 5/16-18 UNC × 0.50





Resources/Downloads

Title Download Email
RLFLS Load Cell Catalog Page Download Email

Parts

Part # Description List Price Cart/Quote
125612 Load Cell,SPT RLFLS-50 50lb 10ft 1mv/v 350 Ohm SST IP67

List Price: $650.00
