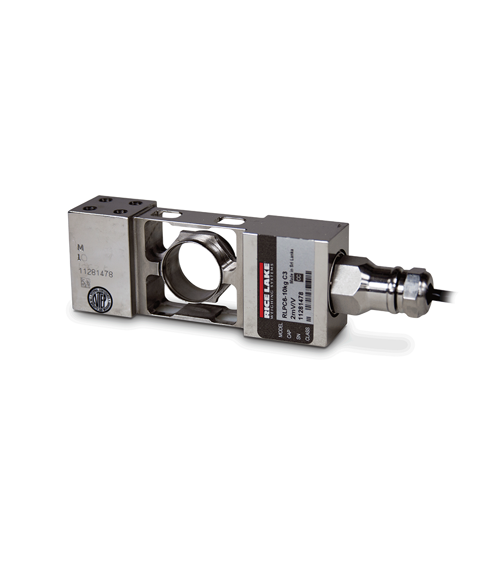

Rice Lake RLPC6 Stainless Steel, Single Point Load Cell

Full Scale Output:
2.0 mV/V

Output Resistance:
960 (±50) ohm, nominal

Input Resistance:
1,100 (±50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
3 m

Cable Diameter:
5 mm
Polyurethane jacket

Deflection at Capacity:
0.15 to 0.25 mm

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow Shield

Max Platform Size:
610 × 610 mm

Warranty:
Two-year limited

Approvals:
NTEP 06-011
FM
