Rice Lake RLPCBC-60 Stainless Steel, Single Point Load Cell

This stainless steel single point load cell is hermetically sealed and can be used in wet environments. It's NTEP Certified, has a capacity range from 50 to 1,000 kilograms and comes complete with 10 feet of load cell cable.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65

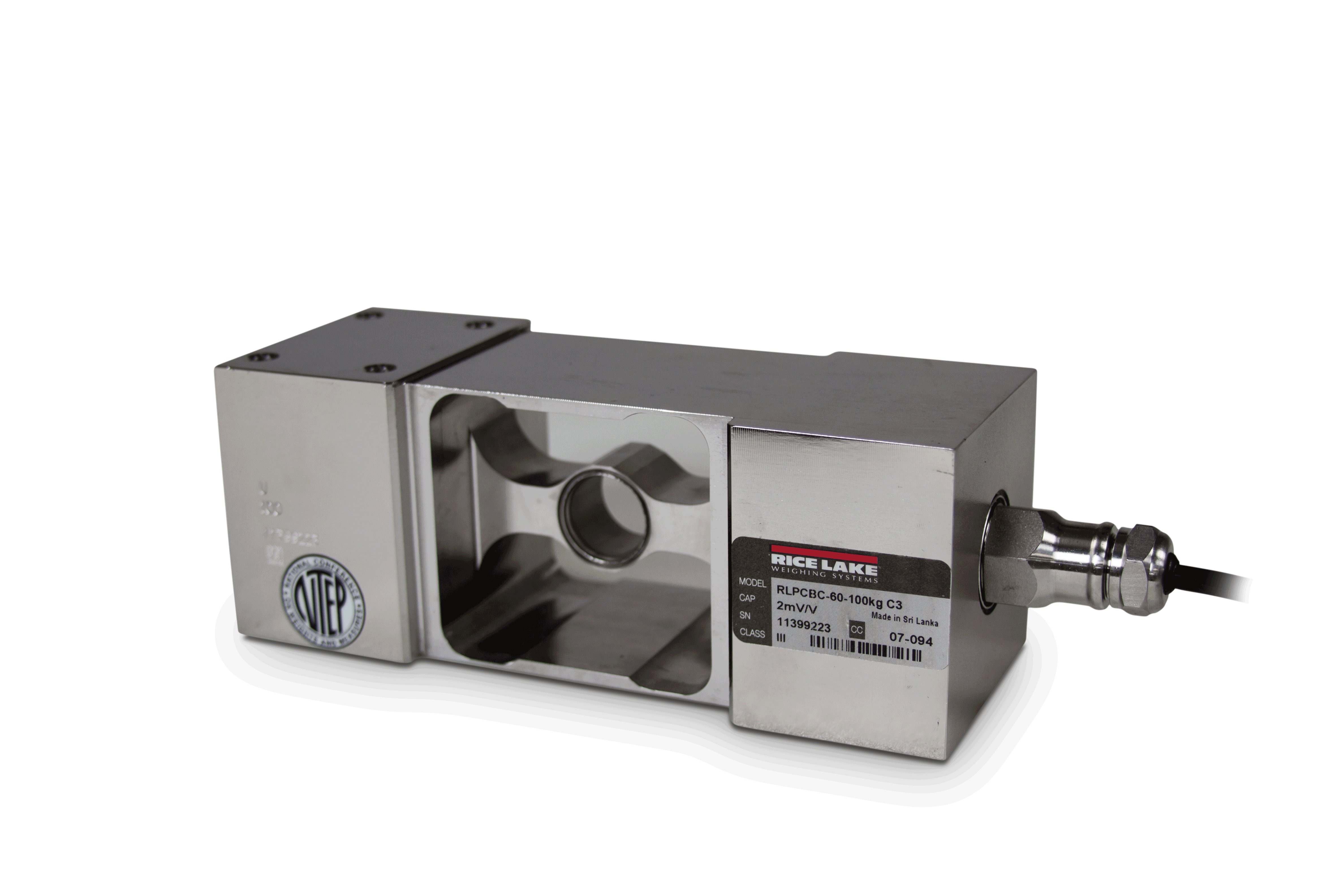

RL-RLPCBC-60-load-cell

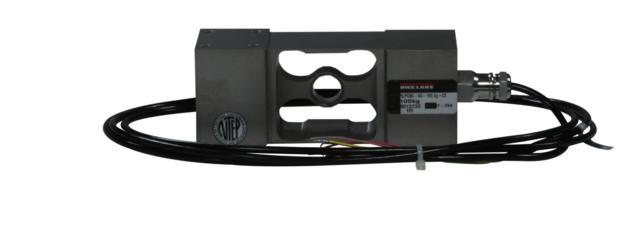

360 Image

Full Scale Output:
2 mV/V

Output Resistance:
960 (±50) ohm

Input Resistance:
1,100 (±50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Hermetically sealed, IP69K

Safe Overload:
200% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.020% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
10 ft
PN 227092: 20 ft

Cable Diameter:
0.196 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Blue +Sense
Brown -Sense
Yellow shield, connected to element

Max Platform Size:
24 × 24 in

Warranty:
Two-year limited

Approvals:
NTEP 07-094
FM

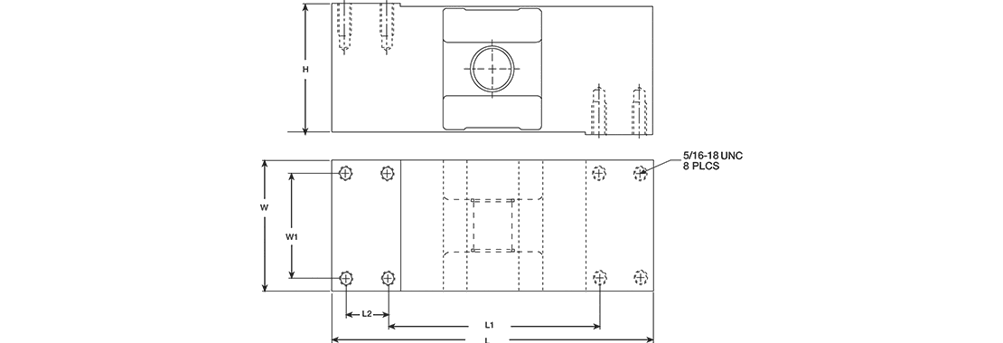

Rated Capacity L L1 L2 W W1 H
kg/mm
50 to 1,000 190.5 107.0 35.0 73.7 50.0 73.7





Resources/Downloads

Title Download Email
RLPCBC-60 Load Cell Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
Load Cell Wiring Guide Request Download Email Load Cells
Load Cell Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules
Load Cell and Weigh Module Handbook Request Download Email Load Cells|Weigh Modules

Title View Download Email Category
Rice Lake's Load Cell Service, Selection and Speed View Download Email Load Cells

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells
Properly Welding on Structures with Load Cells Download Email Load Cells

Parts

10 ft Cable

Part # Description List Price Cart/Quote
87022 Load Cell, SPT RLPCBC-60 50kg 2 mv/v 1000 ohm 10 ft SS HS FM IP69K NTEP III 5 S

List Price: $980.00
87023 Load Cell, SPT RLPCBC-60 100kg 2 mv/v 1000 ohm 10 ft SS HS FM IP69K NTEP III 5 S

List Price: $980.00
87024 Load Cell, SPT RLPCBC-60 250kg 2 mv/v 1000 ohm 10 ft SS HS FM IP69K NTEP III 5 S

List Price: $980.00
87025 Load Cell, SPT RLPCBC-60 500kg 2 mv/v 1000 ohm 10 ft SS HS FM IP69K NTEP III 5 S

List Price: $980.00
87026 Load Cell, SPT RLPCBC-60 1000kg 2 mv/v 1000 ohm 10 ft SS HS FM IP69K NTEP III 5 S

List Price: $980.00

20 ft Cable
