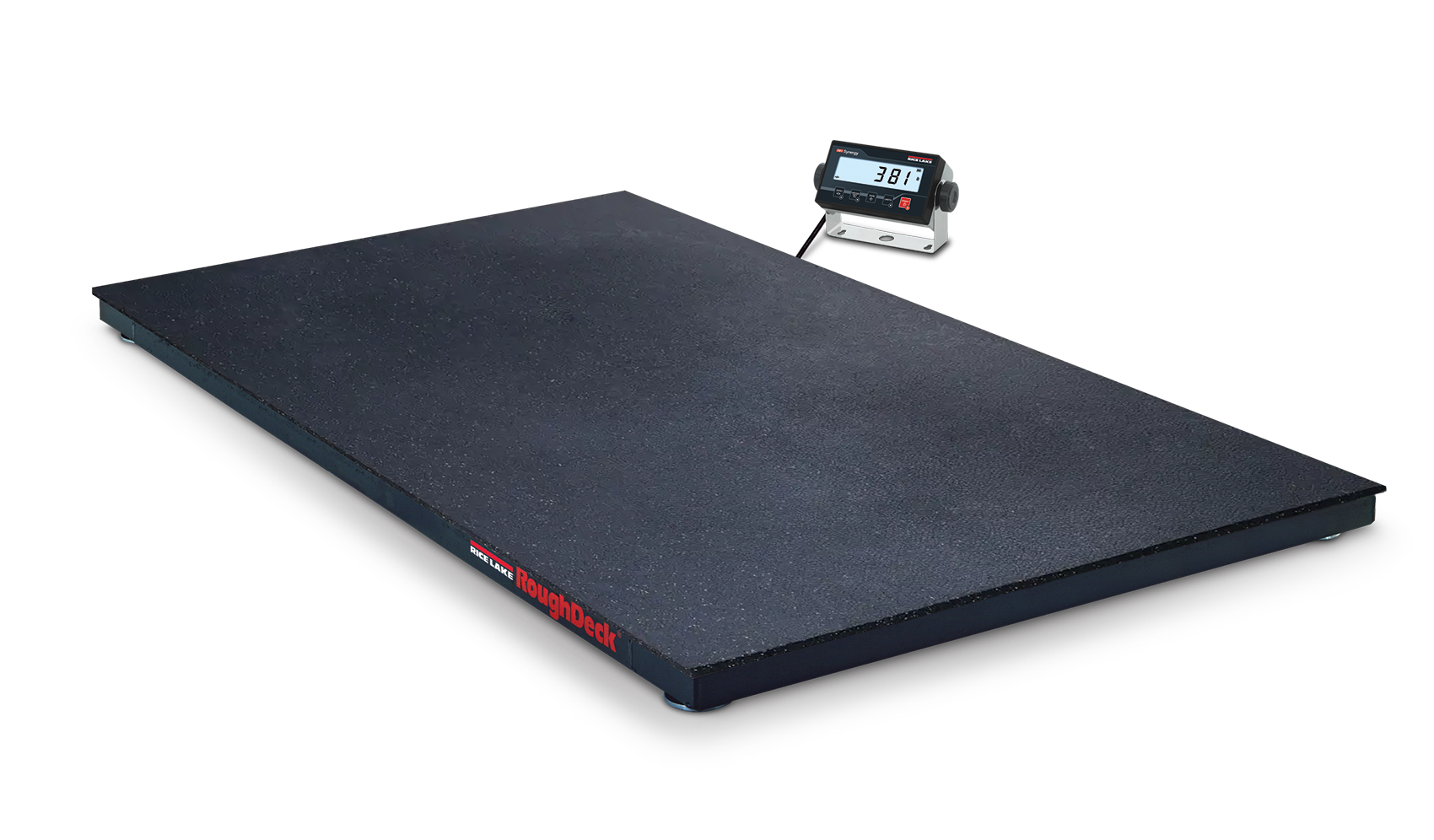

RoughDeck® EQ Equine Floor Scale and Indicator Package

  • Package includes 4 ft × 6 ft × 4.25 in floor scale with stall mat, 20 ft of SURVIVOR® EL147HE hostile environment load cell cable and indicator

  • Mat thickness: 0.75 in

Scale

  • Heavy-duty design with structural steel channel frame

  • Stall mat to reduce noise and instill equine comfort

  • Four adjustable stainless steel Surefoot™ support feet

  • Powder-coated black matte finish

Indicator

  • LCD display

  • Battery powered

  • Push-button and keyed tare

  • Two communication ports

  • Five tactile buttons

  • Configurable print formats

  • ABS enclosure

Request Quote
1 US Roughdeck EQ Juliet

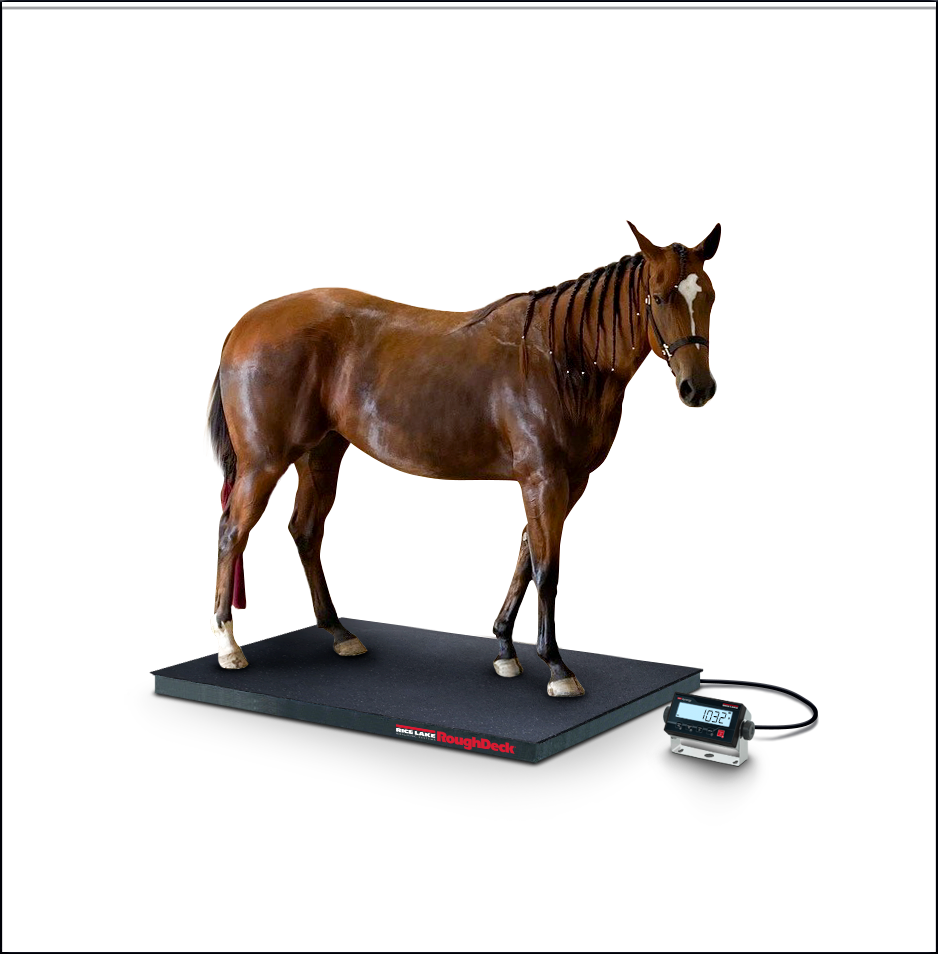

Maintain Equine Health with Reliable Weighing

The RoughDeck EQ equine scale is designed specifically for the safe and reliable weighing of horses or other large animals. The heavy-duty removable horse mat provides extra cushion comfort and is noise-reducing, creating a calm weighing environment.

End Load Capacity:
100% full scale at 2,500 lb

Load Cells:
Model RL32018 alloy steel, environmentally sealed IP66

Junction Box:
Side access, TuffSeal JB4SS stainless steel, NEMA Type 4X with a signal card

Feet:
Stainless steel Surefoot, adjustable (+0.25 in or -0.125 in) for leveling the scale

Finish:
Powder-coat painted, black matte

Cable Length:
20 ft (6.1 m) for connecting scale junction box to indicator

Threaded Eyebolt:
One lifting hole located in center of scale for easy install (requires 1/2-20 NF eye bolt, not included)

Warranty:
Two-year limited

Power:
Battery: AA or Nickel Metal Hydride (NiMH)
381-2D-AA Adapter: 115/230 VAC to 12 VDC
381-2D-NiMH Charger: 115/230 VAC

Battery Life:
AA: 40 hours with one 350-ohm load cell
NiMH: 80 hours with one 350-ohm load cell

Communication Ports:
Full-duplex RS-232
USB 2.0

Display:
Six 1 in (25 mm) tall, LCD digits

Annunciators:
g, lb, t, tn, kg, oz, Battery Level, PT, LT, Gross, Zero, Unstable, Net

Keys/Buttons:
Five tactile buttons

Rating/Material:
AA Battery: IP54, ABS
NiMH Battery: IP66, ABS

Approvals:
NTEP 21-051 Class III/IIIL, 10,000 d
Measurement Canada AM-6184



Dimensions 4 ft x 6 ft x 4.25 in with No Optional Guide Rail
A 48.00 in D 66.76 in
B 72.00 in  E 41.25 in
C 4.25 in

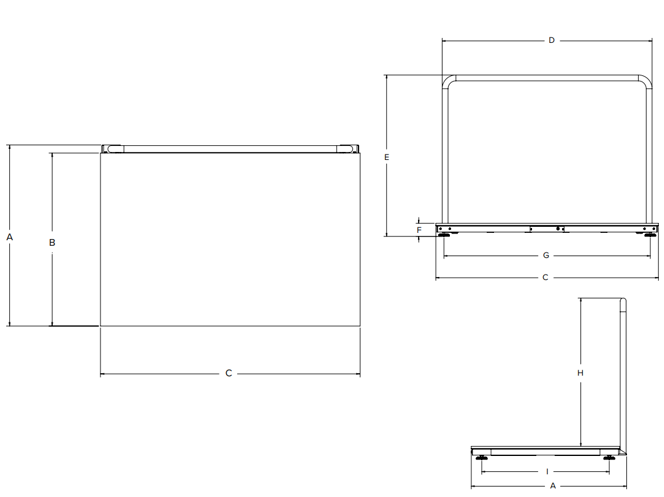

Dimensions 4 ft x 6 ft x 4.25 in with One Optional Guide Rail
A 50.25 in F 4.25 in
B 48.00 in G 66.76 in
C 72.00 in H 48.00 in
D 67.90 in I 41.25 in
E 52.26 in

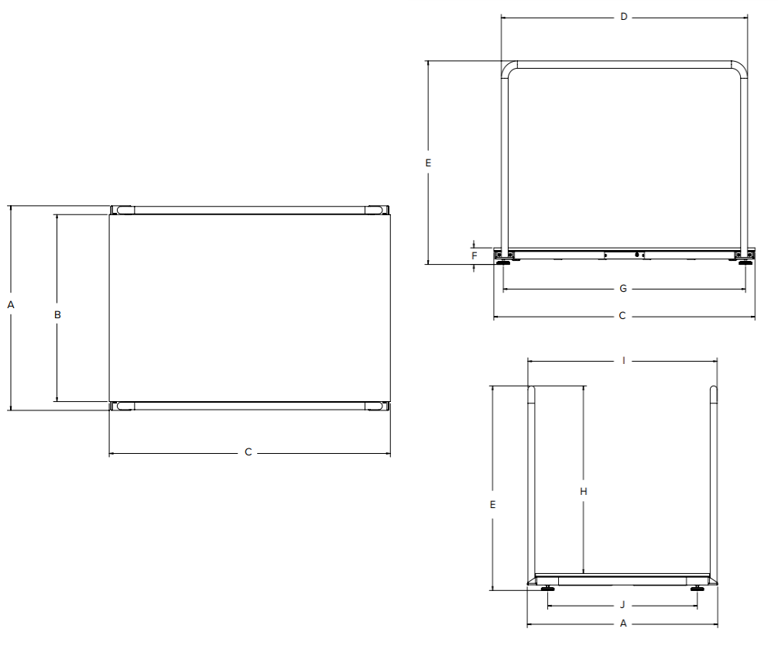

Dimensions 4 ft x 6 ft x 4.25 in with Two Optional Guide Rails
A 50.25 in F 4.25 in
B 48.00 in G 66.76 in
C 72.00 in H 48.00 in
D 67.90 in I 52.15 in
E 52.26 in J 41.25 in

Resources/Downloads

Title View Email Category Type
Weighing to the Rescue for Horse Rehabilitation View Email Animal|Equine Scales Application Story|Articles
Stable Weight View Email Equine Scales Application Story
Bonds of Trust View Email Equine Scales|Animal Application Story
Animal Weight and Medication Dosing View Email Equine Scales|Veterinary and Small Animal Articles

Title Download Email
RoughDeck EQ Catalog Page Download Email

Title Version Revision Download Email Category Archived
380/380X/381 Synergy Series Digital Weight Indicator Technical Manual K Download Email Weight Indicators|Indicators / Controllers|Livestock Instrumentation No

Title Collateral Wizard Request Download Email Category
RoughDeck EQ Floor Scale and Indicator Package Request Download Email Floor Scales

Title View Download Email Category
RoughDeck Floor Scales - Durability and Performance to Last a Lifetime View Download Email Floor Scales

Parts

Part # Description List Price Cart/Quote
231030 Scale PKG, Roughdeck EQ 48x72-2500lb Roughdeck EQ/381-2D-AA battery powered w/adapter Factory Calibrated 2500lb x 0.5lb

List Price: $3,370.00

Options

Part # Description List Price Cart/Quote
12839 Weight,GHDL 50lb ASTM Class 6 Cast Iron Painted, Density 7.2

List Price: $220.00

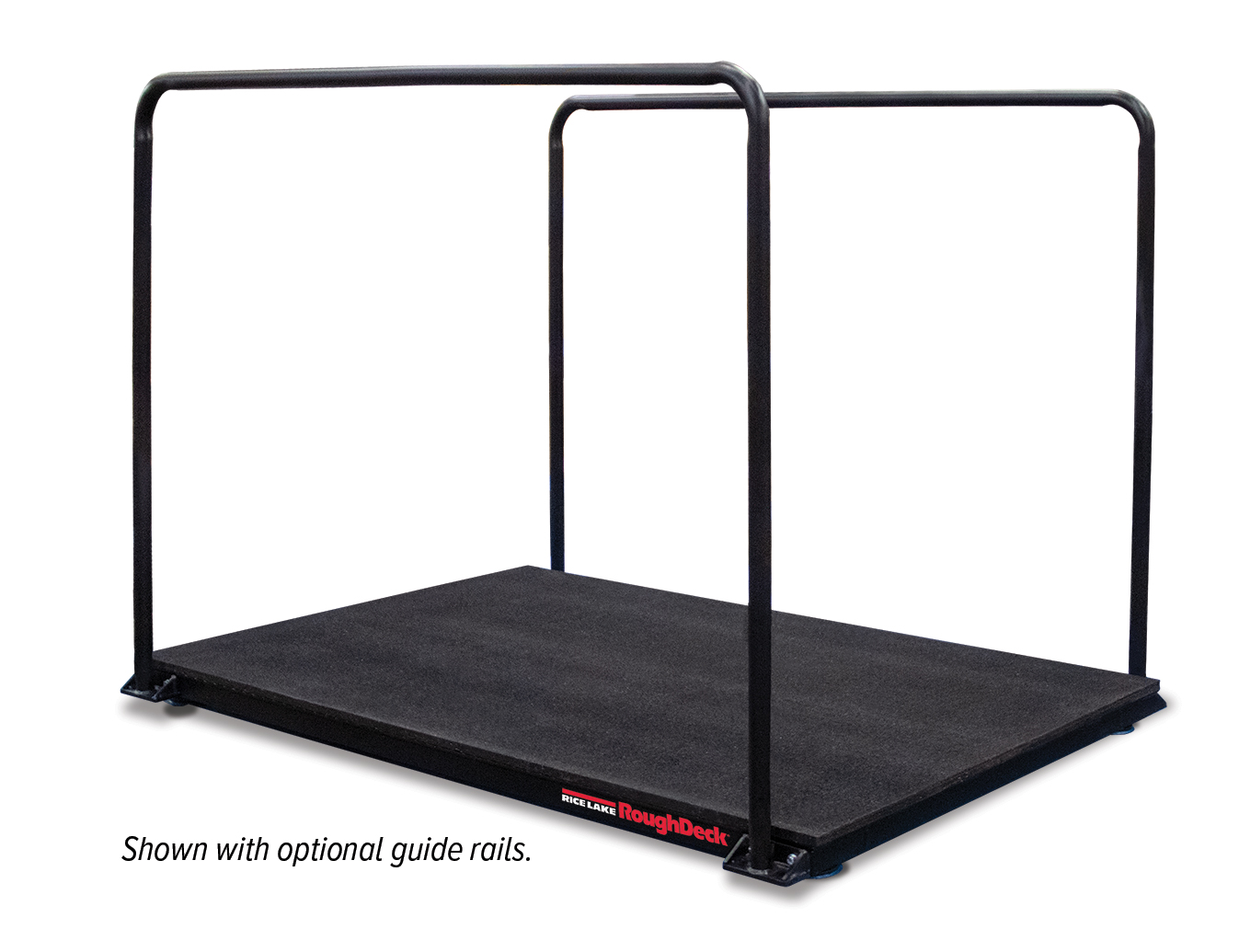

207812 Guiderail, Roughdeck EQ 5.66ft long x 4.36ft high, includes one rail, mounting hardware black matte finish

List Price: $295.00
18777 Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted

List Price: $40.00
Consult Access ramps

Consult
