Product PDF

RoughDeck® SLV Single Animal Livestock Scale

  • Mild steel construction

  • Diamond safety thread plate deck

  • Rigid-type structural steel channel frame

  • NEMA Type 4X stainless steel side-access junction box without quick connector

  • Signal trim summing board

  • Four adjustable stainless steel Surefoot™ support feet

  • SURVIVOR® EL147HE hostile environment load cell cable

  • Four alloy steel load cells

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo

WARNING: Cancer and Reproductive Harm California Proposition 65

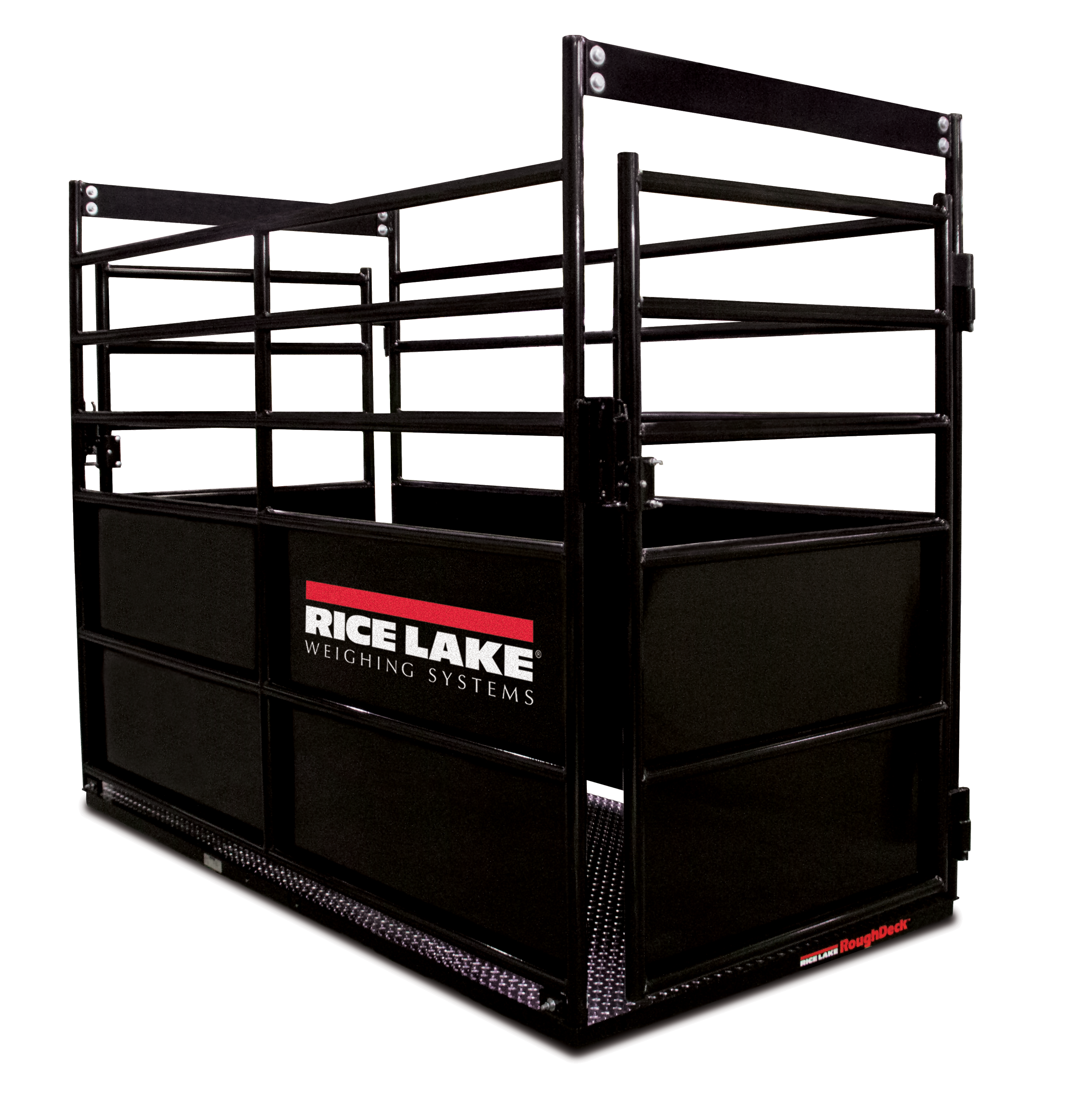

1 US Slvblack Swinggate CMYK

Customizable Single Animal Scale

The RoughDeck SLV single animal livestock scale is a durable solution for weighing sheep, goats, cattle, hogs, horses and more. Depending on rancher needs, the SLV scale can be customized for retrofit or unique applications.

Stable and Efficient Livestock Scale

The diamond treadplate and rigid structural steel channel frame provide durability for weighing. The NEMA Type 4x stainless steel side-access junction box is well-protected and does not need a quick connector.

Equipped with four adjustable stainless steel SUREFOOT™ support feet and a SURVIVOR® EL147HE hostile environment load cell cable, this livestock scale can fit into any environment needed to weigh a variety of livestock. With four alloy steel load cells, the digital livestock scale provides quick and reliable measurements.

Full Scale Capacity:
4,000 lb, 1 lb increments

End Load Capacity:
125% full scale

Cable Length:
20 ft (6 m)

Warranty:
Two-year limited (scale only)

Approvals:
NTEP 92-001 Class III 4,000 d

Capacity not to exceed 4,000 lb x 1 lb and platform size not to exceed 32 sq ft

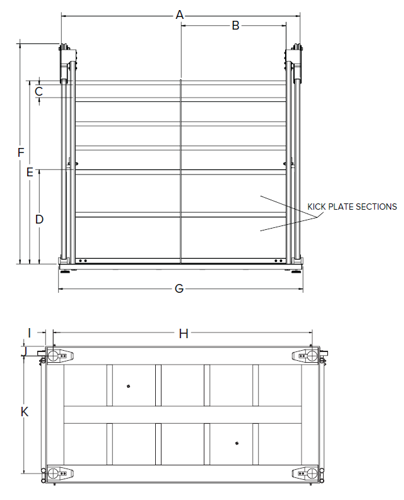

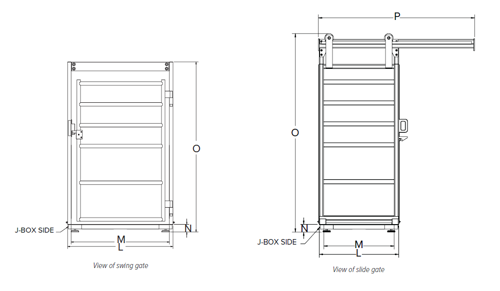

Dimensions
3 × 8 ft
A 93.75 in I 2.62 in
B 41.19 in J 3.38 in
C 5.01 in K 29.25 in
D 37.12 in L 36.00 in
E 72.06 in M 31.84 in
F 74.00 in (swing gate)
86.59 in (slide gate)		 N 3.50 in
G 96.00 in O 77.50 in (swing gate)
90.09 in (slide gate)
H 90.76 in P 70.75 in
4 × 8 ft
A 93.75 in I 2.63 in
B 41.19 in J 3.38 in
C 5.01 in K 41.25 in
D 37.12 in L 48.00 in
E 72.06 in M 43.85 in
F 74.00 in (swing gate)
86.59 in (slide gate)		 N 3.50 in
G 96.00 in O 77.50 in (swing gate)
90.09 in (slide gate)
H 90.76 in P 94.75 in

Resources/Downloads

Title View Email Category Type
Five Generations on Lone Pine Farm View Email Livestock Scales Articles|Application Story
Steering Profits View Email Livestock Scales|Agriculture Application Story

Title Version Revision Download Email Category Archived
RoughDeck SLV Single Animal Livestock Scale Floor Scale Installation Manual A Download Email Agriculture|Livestock Scales No

Title Collateral Wizard Request Download Email Category
RoughDeck SLV Livestock Scale Request Download Email Livestock Scales
Livestock Weighing Buyers Guide Request Download Email Livestock Scales

Title View Download Email Category
Things to Consider When Purchasing a Livestock Scale View Download Email Livestock Scales|Livestock Instrumentation|Agriculture
What is "Shrink" When Weighing Livestock? View Download Email Livestock Scales

Parts

Part # Description List Price Cart/Quote
103617 Scale, Animal Roughdeck 3x8 SLV-4K 3ftx8ftx3-1/2 4,000lb 20ft w/o quick Connect NTEP Modified to Fit Gate and Rack. (Scale Platform Only)

List Price: $3,700.00
78452 Scale, Animal Roughdeck 3x8SLV-4K 3ftx8ftx3-1/2 4,000lb 20ft w/o Quick Connect NTEP (Scale Platform Only)

List Price: $3,700.00
103619 Scale, Animal Roughdeck 4x8 SLV-4K 4ftx8ftx3-1/2 4,000lb 20ft w/o Quick Connect NTEP Modified to Fit Gate and Rack. (Scale Platform Only)

List Price: $3,800.00
78453 Scale, Animal Roughdeck 4X8SLV-4K 4ftx8ftx3-1/2 4,000lb 20ft w/o Quick Connect NTEP (Scale Platform Only)

List Price: $3,800.00

4,000 lb Bundle Package (Ships Assembled)

Options

Part # Description List Price Cart/Quote
226036 Indicator,380 Universal Segmented LCD Display, Battery Powered, Synergy Series With 4 Pin Quick Connect Ag Scale Cable .

List Price: $795.00
206433 Power Cord Assy, 12V 6W US Plug, 2.5mm ID, 5.5mm OD connector, Universal Input

List Price: $60.00
18777 Mounting Plate Set, Roughdeck 1,000-10,000 lb Steel Painted

List Price: $40.00
18778 Mounting Plate Set, Roughdeck 1,000-10,000 lb SST

List Price: $55.00
Consult Smooth deck instead of diamond safety tread plate

Consult
