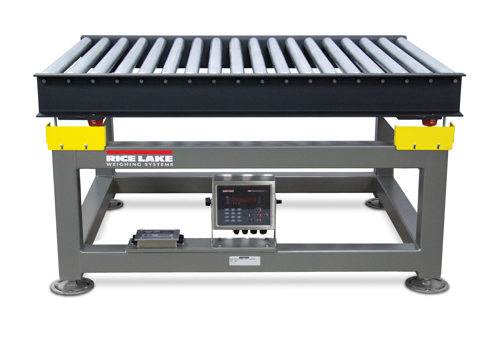

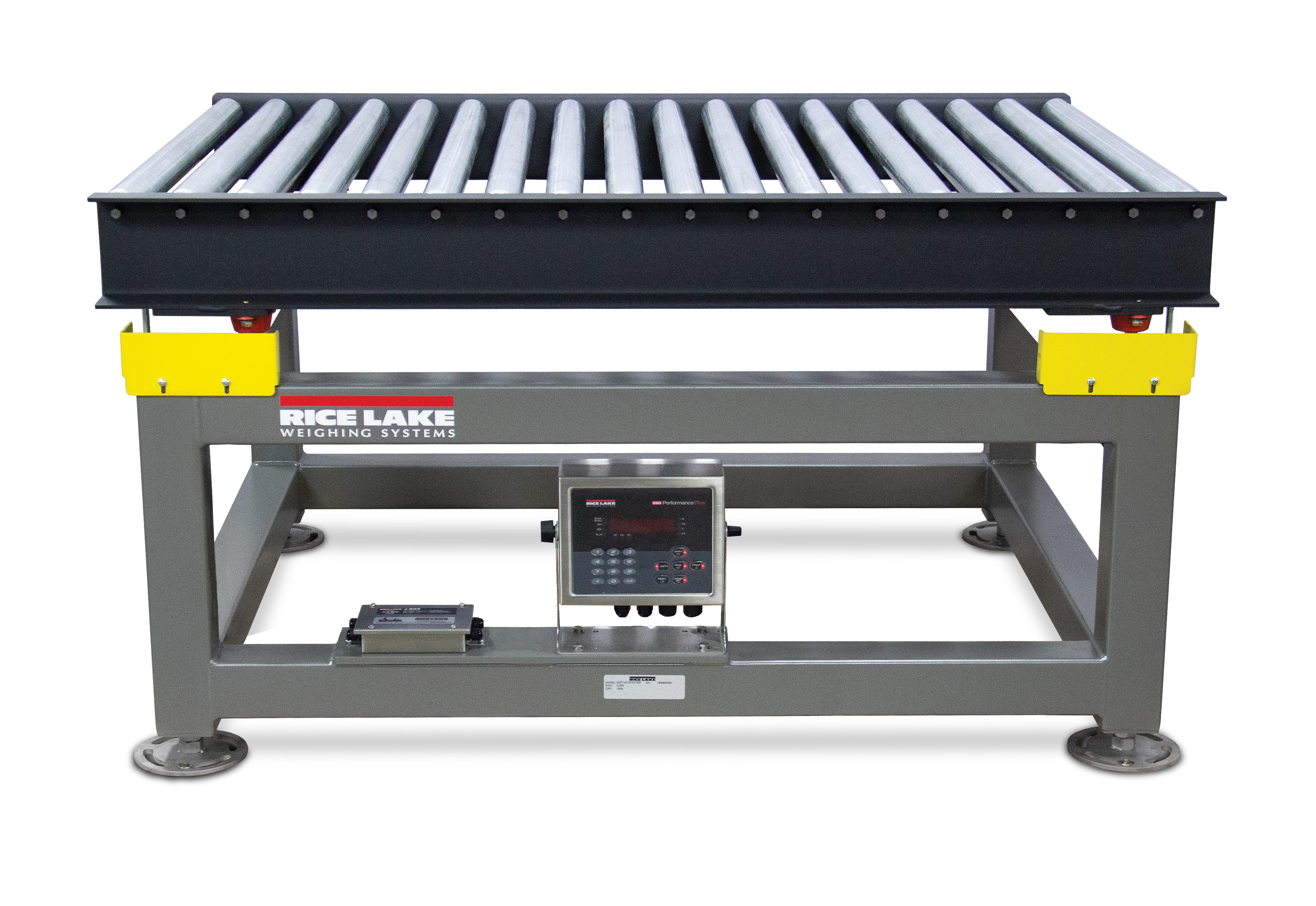

RT-M Roller Top Manual Checkweigher and Conveyor Scale

  • Integrated overload protection
  • Four load cell system
  • Mild steel powder-coated frame
  • Non powder-coated rollers
  • Consult for custom sizes/capacities
Request More Information
1 US RT M

Roller Top Checkweigher Scale

The RT-M roller top checkweigher scale is designed to easily integrate into existing production lines with custom sizes and capacities available.

Dimensions:
(L × W × H)
54 × 36 × 30 in with ± 2.5 in height adjustment		 Capacity:
100 × 0.05 lb		 Approvals:
Not available on RT-M

Power:
Line voltages: 100 to 240 VAC
Frequency: 50 to 60 Hz

Excitation Voltage:
10 VDC (± 5 VDC), eight 350-ohm or 16 700-ohm load cells

Digital I/O:
Four configurable,  5 V logic

Communication Ports:
Two RS-232 (three-wire)
RS-485/422 (five-wire)
Micro USB (device)
Ethernet TCP/IP (10/100)

Display:
Seven 0.8 in tall, seven-segment digits

Dimensions:
(L × W × H)
11.58 × 4.05 × 8.57 in
(294 × 103 × 218 mm)

Approvals:
NTEP 19-021, Class III/IIIL, 10,000d
Measurement Canada AM-6121C
OIML R76/2006-A-NL1-19.56

Resources/Downloads

Title Download Email
RT-M Roller Top Scale Catalog Page Download Email

Title Collateral Wizard Request Download Email Category
The Checkweigher Buyer's Guide Request Download Email In-Motion Checkweighers

Parts

Part # Description List Price Cart/Quote
201732
Scale Assembly,Integrated Roller Conveyor Scale Painted

List Price: $6,900.00
220912 Scale Assembly,Integrated Roller Conveyor Scale Painted 680 Version

List Price: $6,400.00
