SURVIVOR® Paramounts® HE Weigh Module Kits

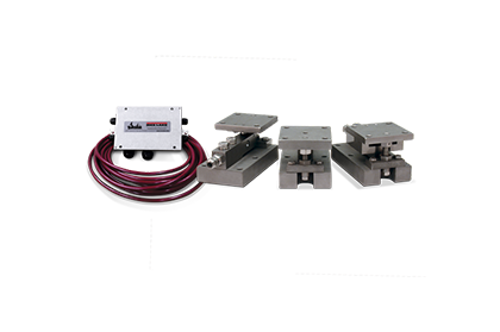

Complete Kit Includes
One fixed-pin module, one side-stop module and one or two free-sliding assemblies.
One Flintec SB4 stainless steel, hermetically sealed load cell in each module
One JB4SS NEMA Type 4X stainless steel signal trim junction box
25 ft of hostile environment EL147HE SURVIVOR load cell cable
Standard Features
Capacities (per module): 5 to 100 kN
All stainless steel construction
Bolt-in-place design; module bolts directly to tank leg without requiring additional load buttons or mounting plates
Load cell outputs are mV/V/ohm calibrated to minimize maintenance costs
Unique design allows for thermal expansion/contraction
Low-profile, self-checking design
Jacking screw allows empty vessel to be lifted clear of load cell for maintenance
Unique patented blind load hole technology minimizes unwanted side and eccentric loading
Vessel is free to slide laterally on PTFE-coated surfaces
Applications
Medium-capacity blenders and tanks
Batching/blending
Pharmaceutical processing
Food processing
Petroleum refining and batching
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65

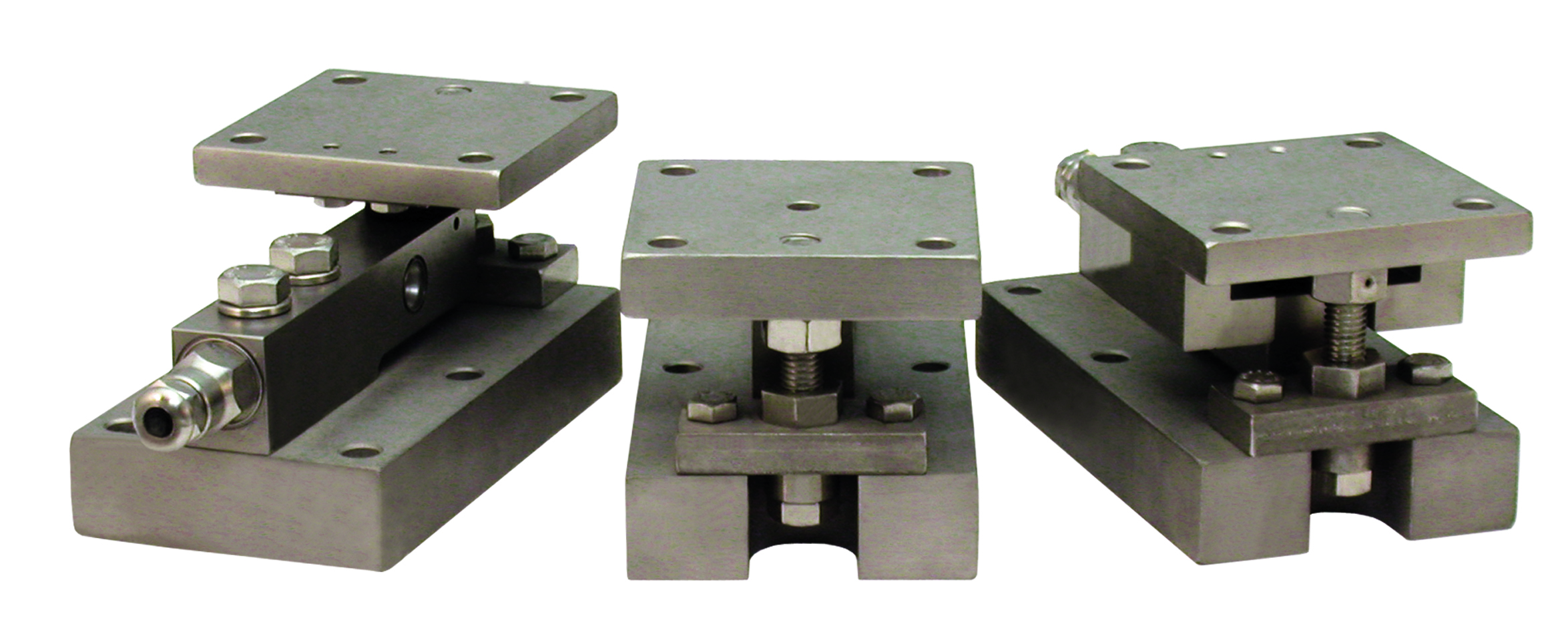

A Weigh Module for Any Circumstance
Consisting of three different weigh module designs, the Paramounts system offers superior accuracy, even in applications with extreme expansion, contraction and vibration. The fixed-pin module acts as the vessel’s primary reference point, enabling rotation. A single side-stop module is then paired with the fixed-pin module to permit mechanical expansion and contraction in one direction. The vessel then becomes a high-accuracy weighing system with the addition of one to six free-sliding modules. This system offers the free motion necessary to eliminate unwanted mechanical side loads, as well as the strength needed to keep the vessel in check. This gives the Paramounts system its industry-leading reputation for exceptional accuracy in unfriendly environments. Integral jacking/shipping bolts enhance safety by preventing accidental lift-off, facilitating quick field removal of load cells and eliminating load cell damage during transportation. Matched outputs and field-replaceable cable simplify installation and enhance serviceability. The Paramounts system represents the ultimate combination of convenience, accuracy and control.
SURVIVOR Paramounts HE Dimensions
| Rated Capacity | C | D | H | H1 | *H2 | **H2 | H3 | L | L1 | L2 | L3 | L4 | W | W1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| kN/in | ||||||||||||||
| 5 to 23 kN | 0.44 | 0.44 | 3.58 | 1.25 | 0.50 | 0.75 | 3.06 | 7.51 | 3.00 | 4.00 | 3.00 | 0.50 | 4.00 | 3.00 |
| 50 kN | 0.56 | 0.56 | 4.66 | 1.50 | 0.62 | 1.00 | 4.09 | 9.19 | 3.87 | 5.00 | 3.87 | 0.56 | 5.00 | 3.87 |
| 100 kN | 0.69 | 0.69 | 6.41 | 2.00 | 0.75 | 1.25 | 5.73 | 11.46 | 4.75 | 6.00 | 4.75 | 0.69 | 6.00 | 4.75 |
| * Side Stop and Free Sliding Units ** Fixed Pin Units | ||||||||||||||
Resources/Downloads
Parts
NTEP Certified/OIML C3 3-Module Kit
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 29883 | Mount Kit,Paramount 3EA 5kN 1,125 lb NTEP SST Compression INCL SB4-5kN-C3 (1,125 lb) And JB4SS |
List Price: $4,314.00 |
|
| 29884 | Mount Kit,Paramount 3EA 10kN 2,250 lb NTEP SST Compression INCL SB4-10kN-C3 (2,250 lb) And JB4SS |
List Price: $4,314.00 |
|
| 29885 | Mount Kit,Paramount 3EA 23kN 5,200 lb NTEP SST Compression INCL SB4-23kN-C3 (5,200 lb) And JB4SS |
List Price: $4,314.00 |
|
| 29886 | Mount Kit,Paramount 3EA 50kN 11,250 lb NTEP SST Compression INCL SB4-50kN-C3 (11,250 lb) And JB4SS |
List Price: $5,835.00 |
NTEP Certified/OIML C3 4-Module Kit
Non-NTEP Certified 3-Module Kit
Non-NTEP Certified 4-Module Kit
Options
Conduit Adapter
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 17703 | Adapter,Conduit 1/2-14NPT Male For SB4/UB1 SST |
List Price: $50.00 |
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
