SURVIVOR® RL2100 HE Heavy-capacity Weigh Module Kits

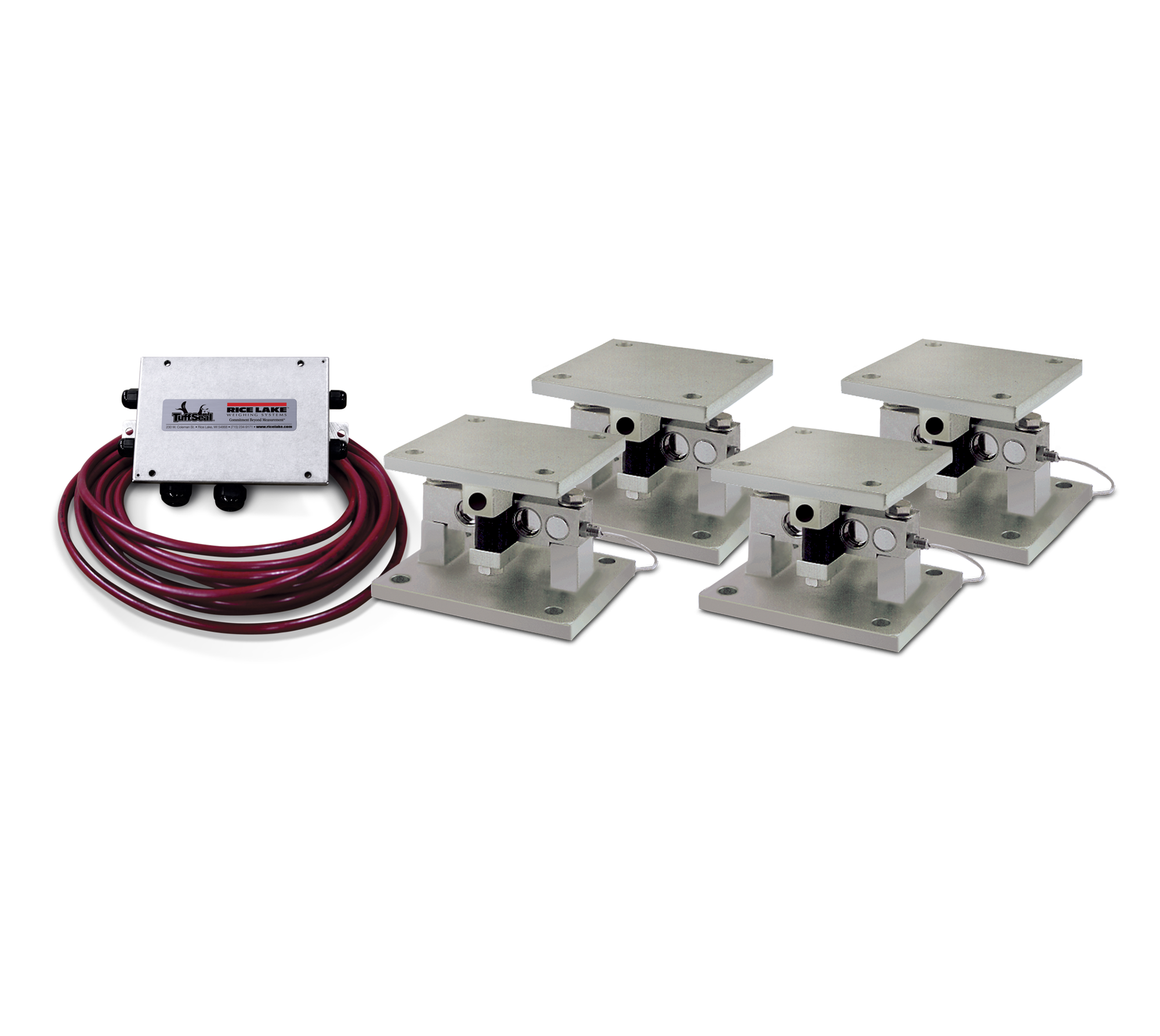

Complete Kit Includes
Three or four RL2100 HE stainless steel compression mounts
RL75058S-LP or RL75060S (35,000 lb) NTEP Certified, stainless steel, welded seal, double-ended beam load cells
One JB4SS NEMA Type 4X stainless steel signal-trim junction box
25 ft of our hostile environment EL147HE SURVIVOR load cell cable
Standard Features
Capacities (per module): 20,000 to 100,000 lb
All stainless steel construction
Bolt-in-place design; module bolts directly to tank leg without requiring additional load buttons or mounting plates
Self-checking design with lift-off/tip-over protection
Applications
Heavy-capacity tanks, blenders, reactors and bulk inventory management
Petroleum refining process control
Blending/batching
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
Dependable Weigh Modules
Incorporating an articulating load plate, hardened load pin and double-ended beam load cell into one simple design, the SURVIVOR RL2100 HE weigh module tolerates eccentric loads and side loads of up to 100 percent of capacity. The RL2100 HE weigh module comes standard with NTEP Certified, 1:5000 division Class IIIL load cells, yielding up to 0.02% total error. An integral conduit adapter offers added washdown protection. These standard features give the RL2100 HE weigh module accuracy and dependability in one heavyweight package. The simple load introduction and load cell design provides consistent accuracy in washdown applications, making the RL2100 HE weigh module ideal for high-capacity hostile environments.

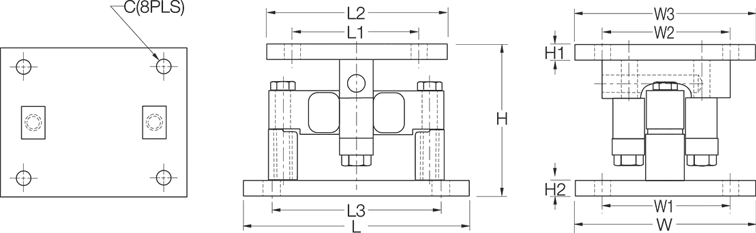

Survivor RL2100 HE Dimensions
Rated Capacity | C | H | H1 | H2 | L | L1 | L2 | L3 | W | W1 | W2 | W3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
lb/inches | ||||||||||||
20,000 to 25,000 | 0.78 | 6.85 | 0.75 | 0.75 | 10.00 | 6.00 | 8.00 | 7.50 | 8.00 | 6.00 | 6.00 | 8.00 |
35,000 to 100,000 | 1.13 | 9.62 | 1.00 | 1.00 | 14.00 | 6.50 | 9.00 | 11.50 | 10.00 | 7.50 | 6.50 | 9.00 |
Resources/Downloads
Parts
Single Module Kit (Includes Load Cell)
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
|
32951
|
Mount ASSY,2100HE 20,000lb SST HS Compression Incl RL75058S-LP 20k
|
List Price: $1,822.00 |
|
|
65541
|
Mount ASSY,2100HE 25,000 lb SST Incl RL75058S-LP 25k Load cell
|
List Price: $1,785.00 |
|
|
32952
|
Mount ASSY,2100HE 35,000lb SST HS Compression Incl RL75058S-LP-35k
|
List Price: $2,860.00 |
|
|
32953
|
Mount ASSY,2100HE 50,000lb SST HS Compression Incl RL75058S-LP 50k
|
List Price: $2,860.00 |
|
|
32954
|
Mount ASSY,2100HE 60,000lb SST HS Compression Incl RL75058S-LP 60k
|
List Price: $2,860.00 |
|
|
32955
|
Mount ASSY,2100HE 75,000lb SST HS Compression Incl RL75058S-LP 75k
|
List Price: $2,860.00 |
|
|
32956
|
Mount ASSY,2100HE 100,000lb SST HS Compression Incl RL75060S-N5-100k
|
List Price: $4,895.00 |
3-Module Kit
4-Module Kit
Replacement Parts
Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.
To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
Related Products

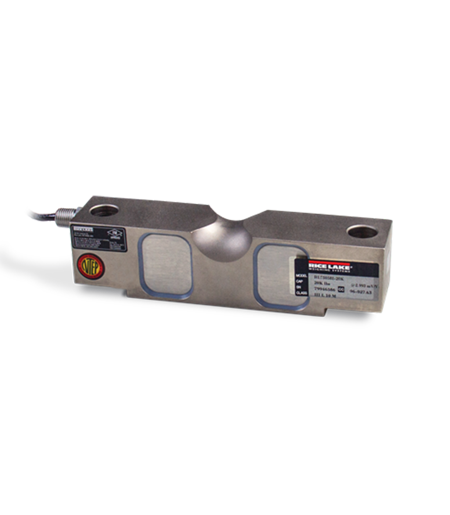

Rice Lake RL75058I Alloy Steel, Double-ended Beam Load Cell
The Rice Lake RL75058I double-ended beam, alloy steel load cell is nickel plated and environmentally sealed with stainless steel side plates.

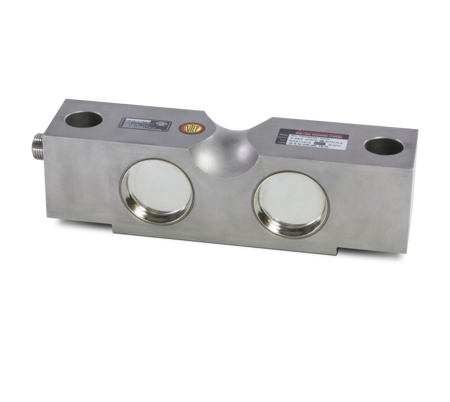

Rice Lake RL75060S Stainless Steel, Double-ended Beam Load Cell
With welded-seal and NTEP Certification to 10,000 divisions, the Rice Lake RL75060S load cell provides the ultimate in durability and accuracy in high-capacity process measurement and control.

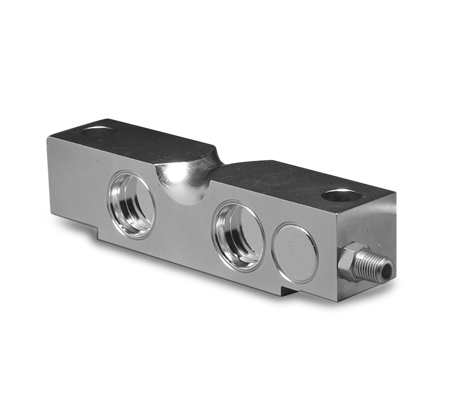

VPG® Sensortronics® 65058S Stainless Steel, Double-ended Beam Load Cell
