TP75 DC Transient Protection

  • Protects load cells and indicators from voltage transients

  • Avalanche diode design

  • Full six-wire with shield protection

  • NEMA Type 4X enclosure

  • Unlimited number of parallel load cells; up to eight in series

  • Terminal lugs provided

Applications

  • Truck, railroad, tank, bin and hopper scales

  • Suitable for outdoor use

Request More Information
1 US TP75 PN33185 CMYK

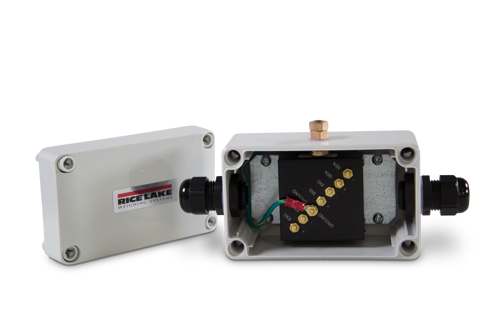

The TP75 DC load cell surge protector protects an unlimited number of parallel load cells and up to eight in a series. The NEMA Type 4X enclosure assures the sensitive board stays safe and dry during washdown.

Protection Type:
Six-wire type with separate shield

Maximum Excitation Voltage:
22.8 VDC

Response Time:
5 nanoseconds

Peak Surge Currents:
100 amps

Grounding:
10 AWG wire or larger (not provided)

Cable Fitting:
Two nylon strain reliefs for 0.187 to 0.312 in diameter cable

Enclosure:
Impact-resistant polycarbonate NEMA Type 4X, 40 psi maximum washdown

Temperature:
Operating: -4 to 149 °F (-20 to 65 °C)

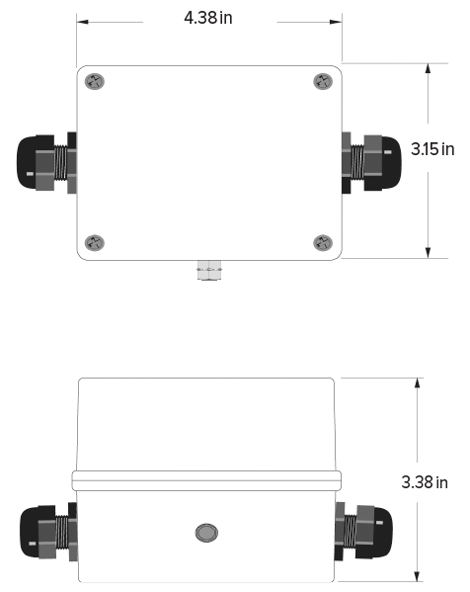

Dimensions:
(L × W × H)
3.16 × 2.20 × 1.18 in

Warranty:
One-year limited



Resources/Downloads

Title Download Email
TP75 DC Catalog Page Download Email

Parts

Part # Description List Price Cart/Quote
33185 Transient Protection Kit, Model TP-75 Load Cell Protector And Mounting Hardware

List Price: $340.00

Options

Part # Description List Price Cart/Quote
31164 Transient Protection TP-75RL Load Cell Protection Board

List Price: $265.00
