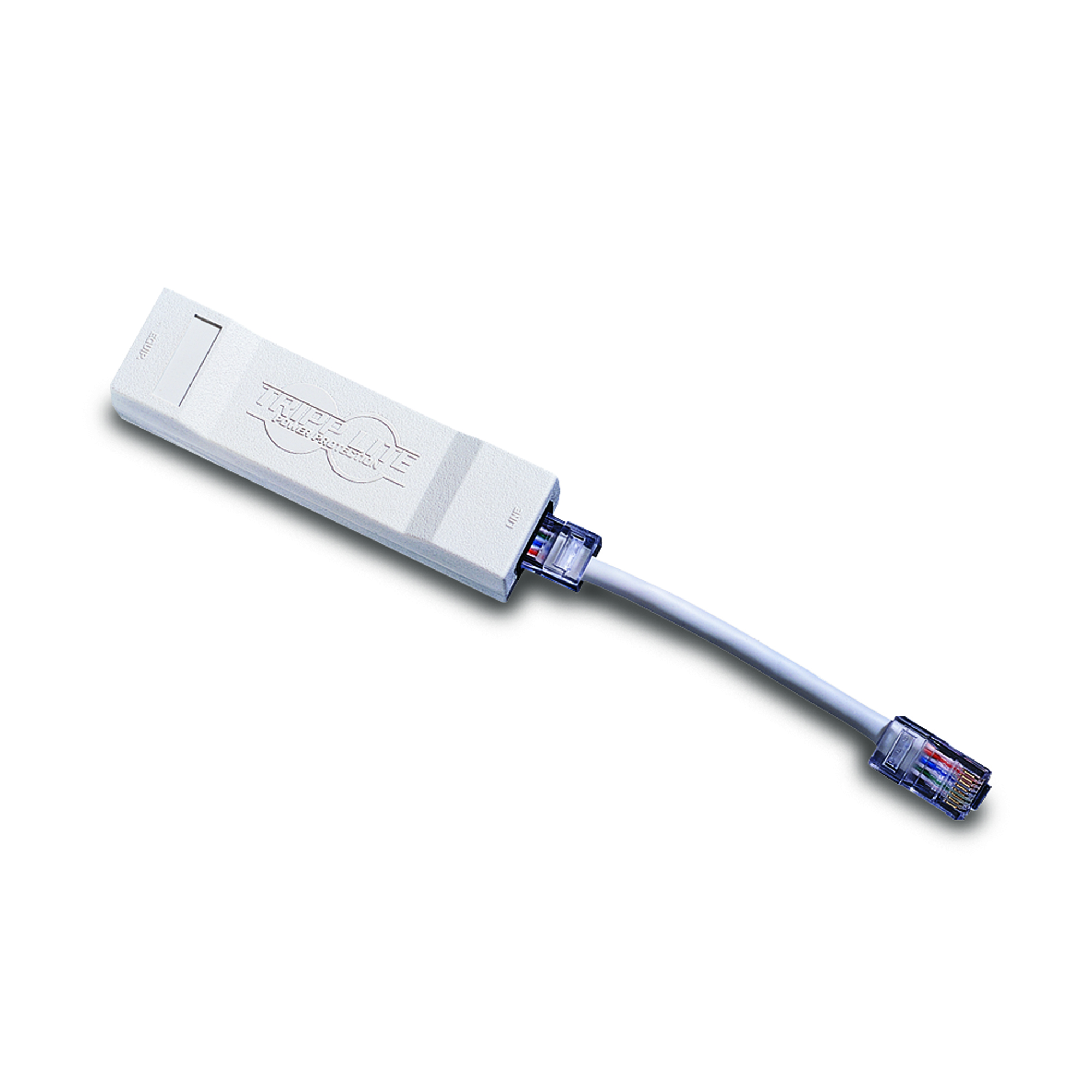

Tripp Lite® DNET1 Ethernet Surge Suppressor

  • RJ45 input and output connections

  • 5 in Ethernet patch cable enables ideal protection placed as close as possible to the point of use

  • 6 in heavy gauge lead connects to designated grounding lugs on protected equipment

  • Surge suppression utilizing high-speed avalanche diodes diverts excess energies on the network to ground

Request More Information
Portals 0 Products 32619Bcfeafe4d6bb2f97e9ca2a46840 Orig

The Tripp-Lite DNET1 Network Surge Suppressor diverts excess energies to a ground using high speed avalanche diodes. This is ideal for NICs, terminals, hubs, MAU and LAN equipment.

Interface Type:
RJ45

Application:
100 Base-T, 10 Base-T, Token Ring, AS400/Sys3x, RS-422. Ideal for NICs, terminals, hubs, MAUs, LAN equipment. RJ11/45-compatible. RJ45 cable included.

Lines Protected:
Up to eight

Peak Pulse Clamping Voltage:
7.5 V

NOTE: PoE not supported

Maximum Current:
750 A

Warranty:
One-year limited

Resources/Downloads

Title Download Email
Tripp-Lite DNET1 Catalog Page Download Email

Parts

Part # Description List Price Cart/Quote
72682 Network Protection, Surge Suppressor RJ45, 10/100 Baset-T, Token Ring, RS422

List Price: $80.00
