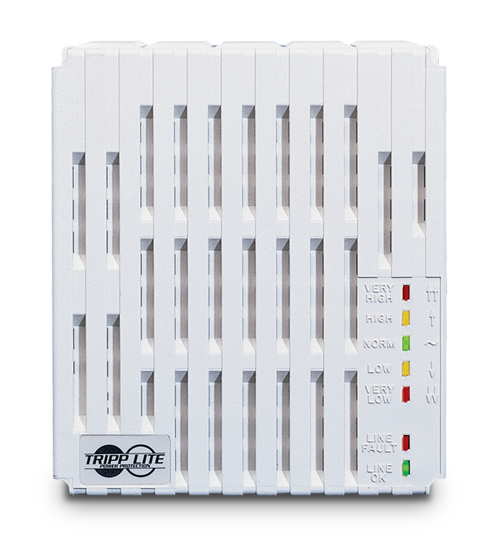

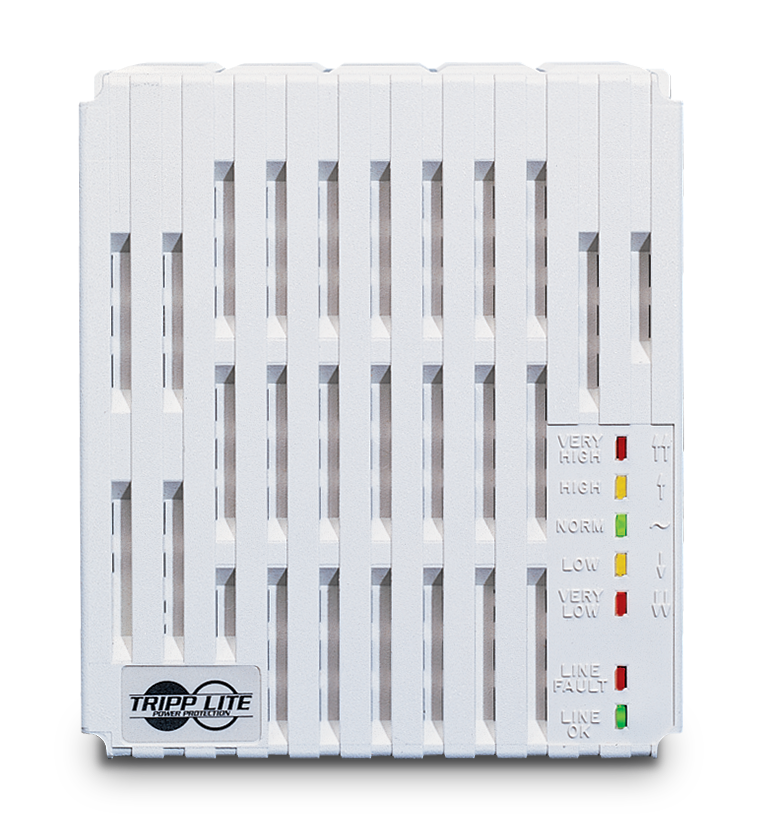

Tripp Lite® LC1200 Power Regulator

  • Maintains usable 120 V nominal output during brownouts as low as 87 V and overvoltages as high as 140 V

  • 1,200 W output power rating supports heavy 120 V loads up to 10 A

  • Network grade surge suppression rated at 1,200 J

  • Complete EMI/RFI noise filtering

  • Seven diagnostic LEDs indicate input voltage levels, surge suppression status and line fault conditions

  • Four protected NEMA Type 5-15R outlets

  • 6 ft AC power cord with standard NEMA 5-15P input plug

Request More Information
1 US LC 1200 CMYK

Max Output:
Continuous: 1,200 W

Voltage/Frequency:
120 V/60 Hz

Cordset:
6 ft

AC Receptacles:
Four NEMA 5-15R

LED Indicators:
Seven (very high voltage, high voltage, normal voltage, low voltage, very low voltage, line fault, line OK)

Surge Energy Rating:
1,200 J

High Frequency Noise Suppression at 1 MHz:
80 dB

Dimensions:
(L × W × H)
6.75 × 5.75 × 6.75 in

Warranty:
One-year limited

NOTE:
LC models have isolated filter banks. Each duplex outlet pair is filtered from the rest to prevent interference between connected equipment.

Resources/Downloads

Title Download Email
Tripp-Lite LC1200 Catalog Page Download Email

Parts

Part # Description List Price Cart/Quote
70726 AC Protection,LC1200 Line Conditioner And Voltage Regulator 4 Outlets, 1200W

List Price: $525.00
