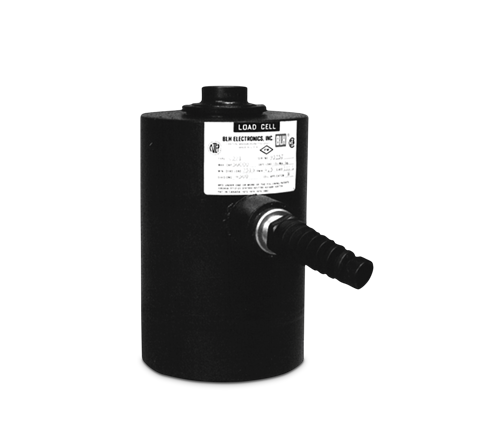

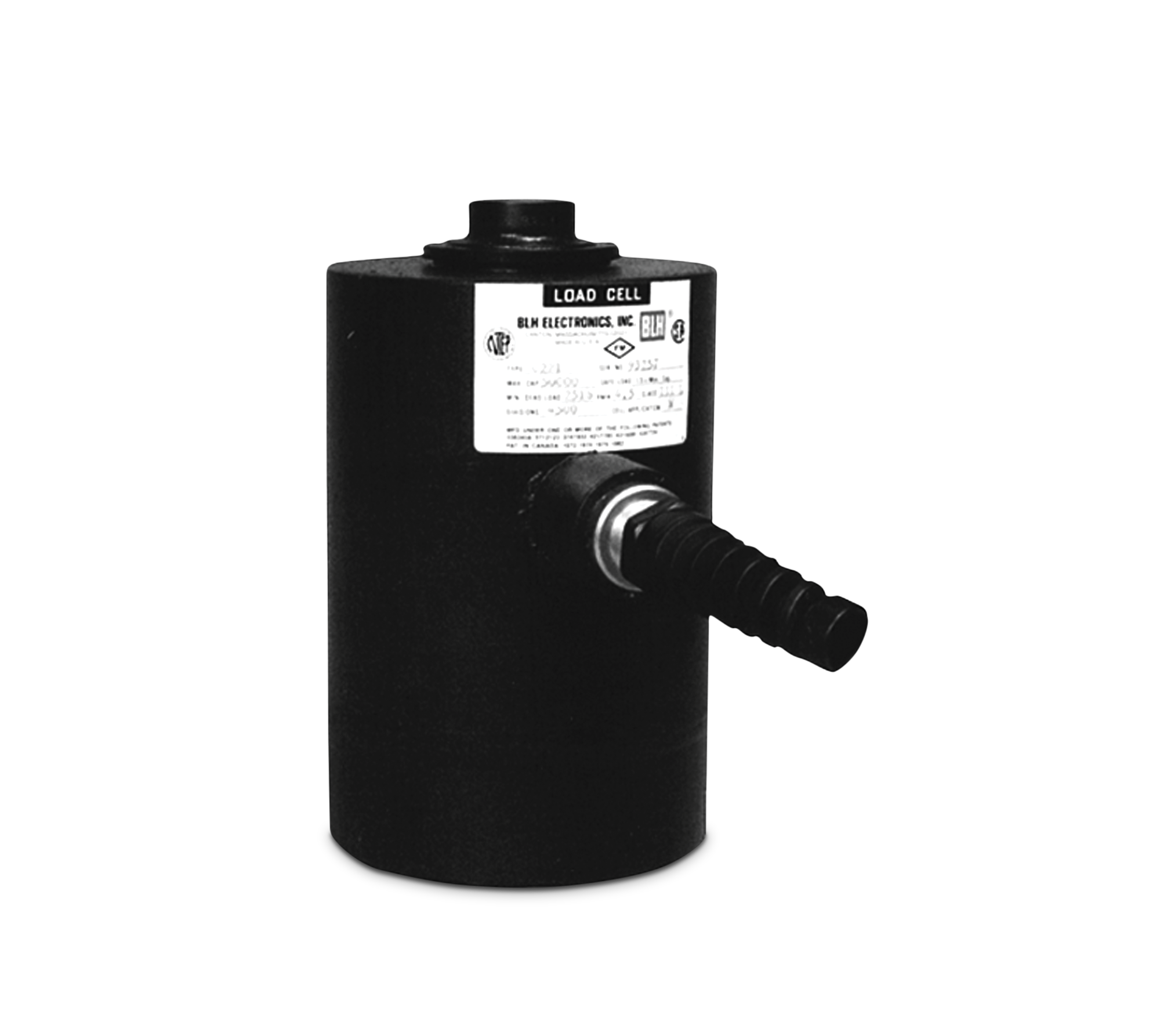

VPG® BLH® C2P1 Alloy Steel, Compression Canister Load Cell

The C2P1 load cell is constructed of high-alloy steel and epoxy-coated for use in harsh environments. It's compact and rugged with a single-column design, low deflection and trouble-free operation. It has NTEP Certified capacities of 20,000 to 200,000 pounds and a non-NTEP Certified capacity of 300,000 pounds. It's complete with 10 or 35 feet of load cell cable.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM Approved

WARNING: Cancer and Reproductive Harm California Proposition 65
rl-VPG-BLH-C2P1-compression-loadcell

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (±3.5) ohm

Input Resistance:
350 (±3.5) ohm

Material/Finish:
High-alloy steel, epoxy coated

Temperature:
Compensated: 14 to 104 °F (-10 to 40 °C)
Operating: 0 to 150 °F (-18 to 65 °C)

Seal Type:
NEMA Type 6, environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 20 VDC

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
20,000 lb: 0.0075 in
30,000 lb: 0.0075 in
50,000 lb: 0.0065 in
100,000 lb: 0.0075 in
200,000 lb: 0.0070 in
300,000 lb: 0.012 in

Cable Length:
10 ft
35 ft

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow shield

Warranty:
Three-year limited

Approvals:
NTEP
FM

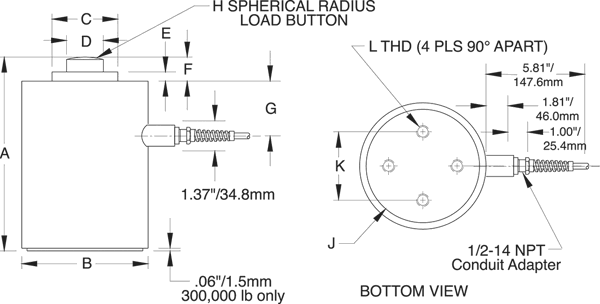

Rated Capacity A B C D E F G H J K L
lb/in
20,000 to 50,000 7.50 4.50 2.25 1.25 0.50 0.75 2.50 6.00 — 2.38 3/8-24 UNF-2 × 3/8 DP
100,000 9.13 6.00 3.13 1.75 0.63 1.06 2.50 12.00 — 4.00 1/2-20 UNF-2B × 3/4 DP
200,000 11.63 8.00 4.50 2.50 0.63 1.06 3.50 12.00 — 5.50 5/8-18 UNF-2B × 1 DP
300,000 14.00 10.00 5.00 3.00 0.75 1.31 4.31 15.00 8.00 5.50 3/4-16 UNF-2B × 1 1/4 DP





Resources/Downloads

Title Download Email
BLH C2P1 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook F Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

NTEP Certified, 10ft Cable

Part # Description List Price Cart/Quote
21625 Load Cell,CSR C2P1-20K 20,000lb 10ft 2mv/v 350 Ohm NTEP IIIL 4.5M FM EW IP67 Epoxy HS C BLH

List Price: $3,595.00
21626 Load Cell,CSR C2P1-50K 50,000lb 10ft 2mv/v 350 Ohm NTEP IIIL 4.5M FM EW IP67 Epoxy HS C BLH

List Price: $3,495.00
21627 Load Cell,CSR C2P1-100K 100,000lb 10ft 2mv/v 350 Ohm NTEP IIIL 4.5M FM EW IP67 Epoxy HS C BLH

List Price: $3,695.00
21628 Load Cell,CSR C2P1-200K 200,000lb 10ft 2mv/v 350 Ohm NTEP IIIL 4.5M FM EW IP67 Epoxy HS C BLH

List Price: $3,995.00

NTEP Certified, 35ft Cable

Non-NTEP Certified, 10ft Cable

Non-NTEP Certified, 35ft Cable
