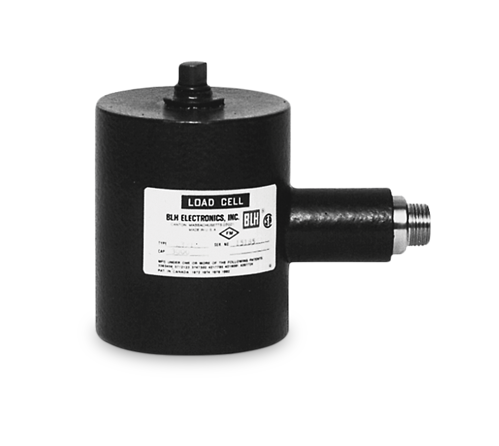

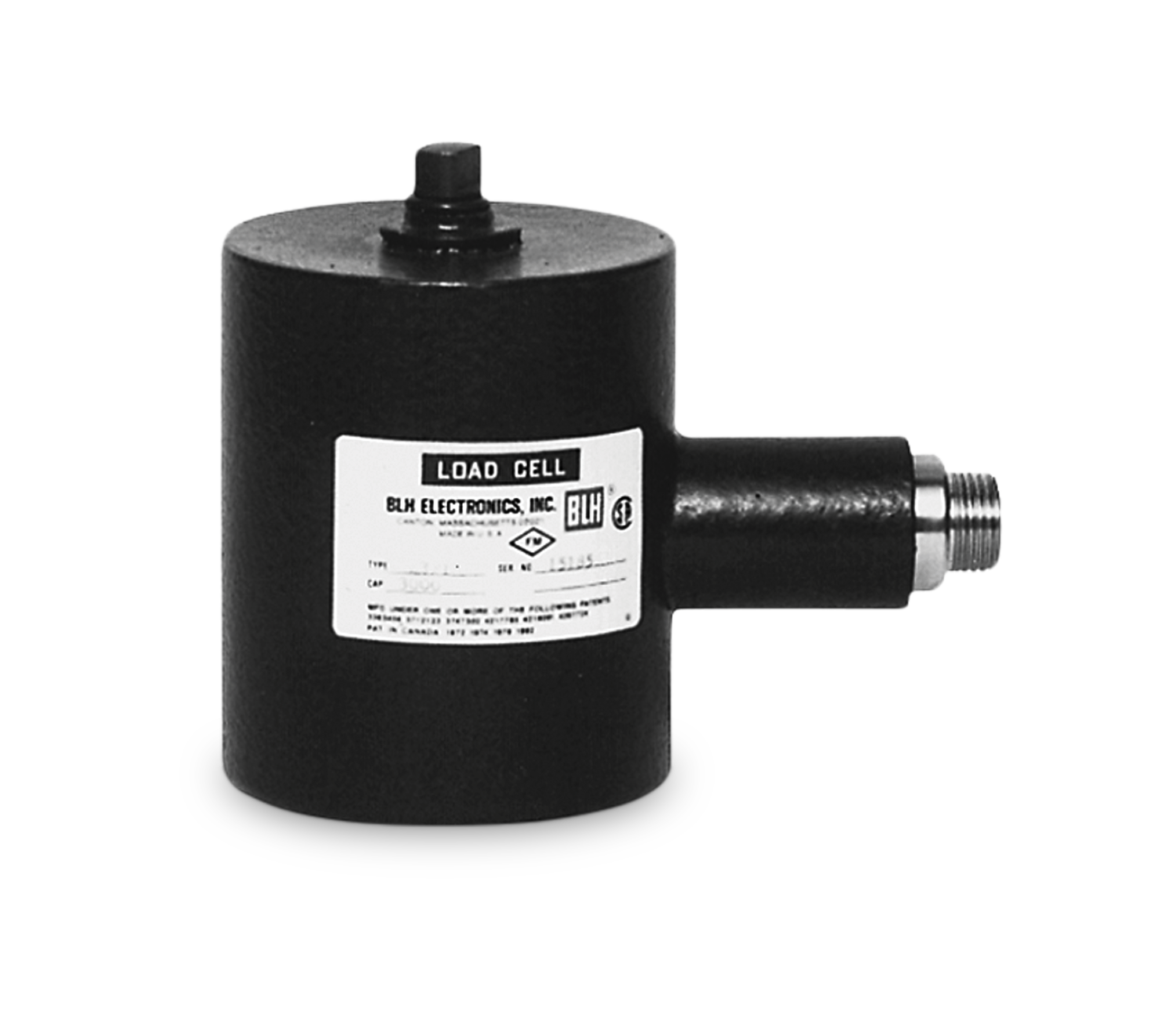

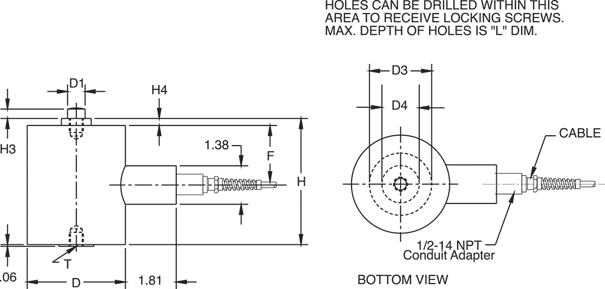

VPG® BLH® C3P1 Alloy Steel, Compression Canister Load Cell

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (±3.5) ohm

Input Resistance:
350 (±3.5) ohm

Material/Finish:
High-alloy steel, epoxy coated

Temperature:
Operating: 0 to 150 °F (-18 to 65 °C)

Seal Type:
NEMA Type 6, environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
5 to 20 VDC

Nonlinearity:
0.05% full scale

Hysteresis:
500 lb: 0.05% full scale
1,000 to 10,000 lb: 0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
500 lb: 0.007 in
1,000 lb: 0.006 in
2,000 lb: 0.005 in
3,000 lb: 0.005 in
5,000 lb: 0.007 in
10,000 lb: 0.005 in

Cable Length:
35 ft

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal
Yellow shield

Warranty:
Three-year limited

Approvals:
FM
