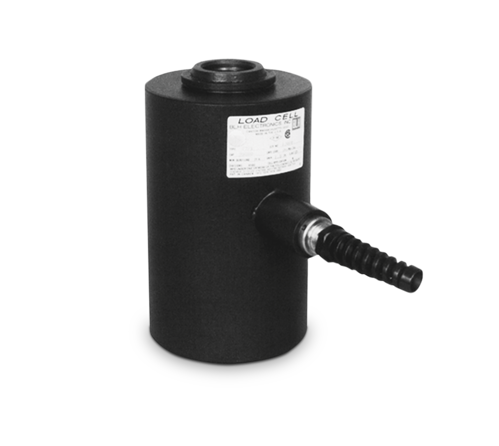

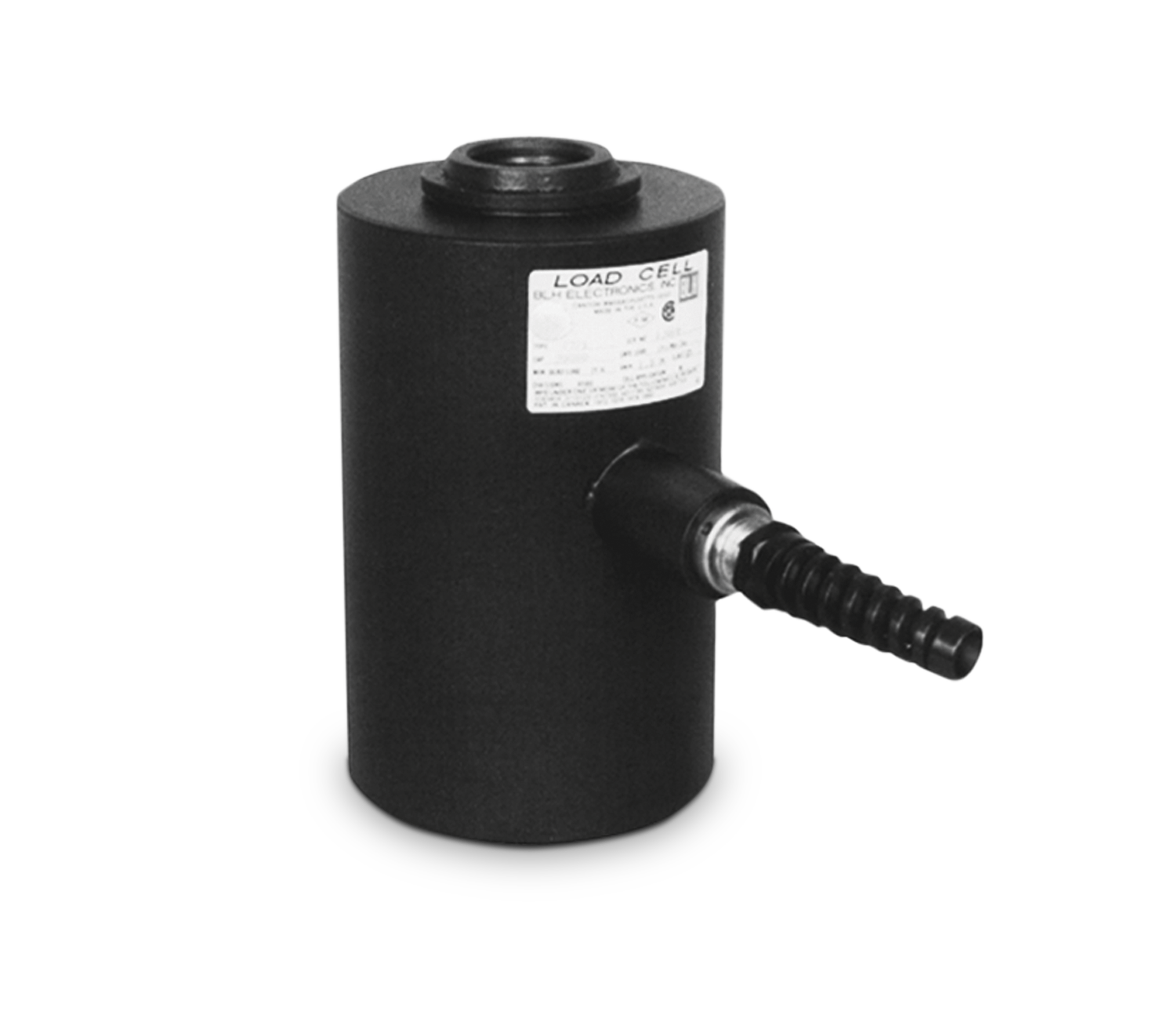

VPG® BLH® T2P1 Alloy Steel, Tension Canister Load Cell
The single-column, environmentally protected design of the T2P1 load cellprovides low deflection and trouble-free operation. The T2P1 high-alloy steel canister load cell is epoxy coated for reliable performance in harsh environments. It's designed for high-capacity tension applications and has capacities of 20,000 and 50,000 pounds. Each is equipped with 35 feet of load cell cable.
Approvals
Some approval documents are available to view by clicking the icons below.
WARNING: Cancer and Reproductive Harm California Proposition 65
T2P1 Load Cell Specifications
Full Scale Output: Output Resistance: Input Resistance: Material/Finish: Temperature: Seal Type: | Safe Overload: Rated Excitation: Combined Error: Repeatability: Insulation Resistance: Deflection at Capacity: | Cable Length: Cable Color Code: Warranty: Approvals: |

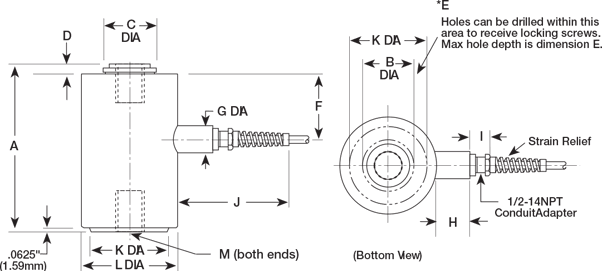

T2P1 Load Cell Dimensions
| Rated Capacity | A | B | C | D | E | F | G | H | I | J | K | L | M |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| lb/in | |||||||||||||
| 20,000 | 8.50 | 2.63 | 2.75 | 0.50 | 1.00 | 3.38 | 1.38 | 1.81 | 1.00 | 5.81 | 4.00 | 5.00 | 1 1/2-12 UNF × 2 DP |
| 50,000 | 11.44 | 3.75 | 4.00 | 0.63 | 1.00 | 5.00 | 1.38 | 1.81 | 1.00 | 5.81 | 5.75 | 6.50 | 2-12 UNF × 2.63 DP |
Resources/Downloads
Parts
| Part # | Description | List Price | Cart/Quote |
|---|---|---|---|
| 17660 | Load Cell,CSR T2P1-20K 20,000lb 35ft 2mv/v 350 Ohm FM EW Epoxy HS Tension BLH |
List Price: $3,695.00 |
|
| 17661 | Load Cell,CSR T2P1-50K 50,000lb 35ft 2mv/v 350 Ohm FM EW Epoxy HS Tension BLH |
List Price: $3,895.00 |
