VPG® Celtron® LCD Alloy Steel, Compression Disk Load Cell

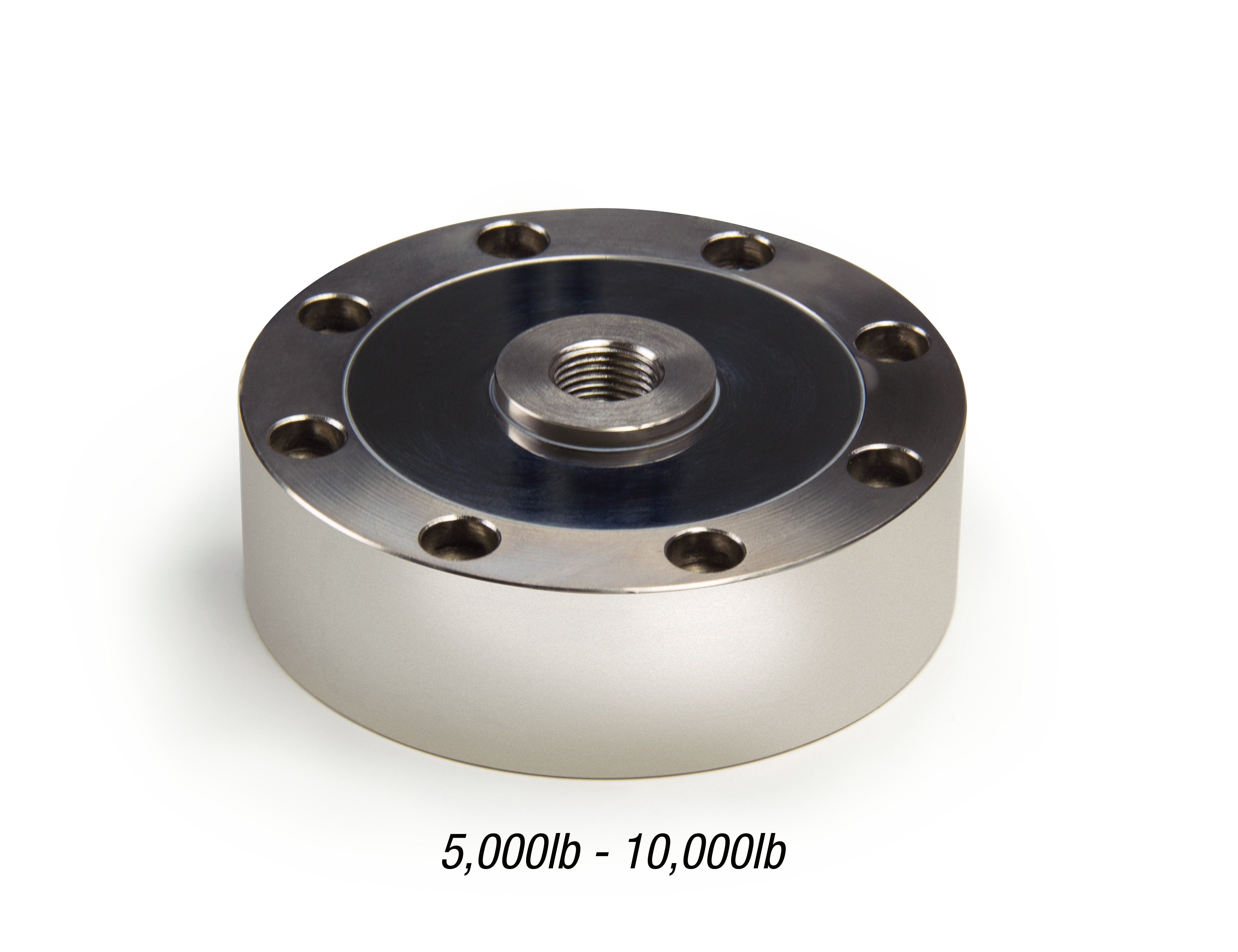

This is a low-profile compression disk that's environmentally protected. The shear web design provides reliable performance, and the low-profile makes it ideal for applications where space is critical. The 5,000- and 10,000-pound models can also be used for tension loading applications. The LCD compression disk comes in capacities ranging from 5,000 to 100,000 pounds and is complete with 50 feet of cable.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

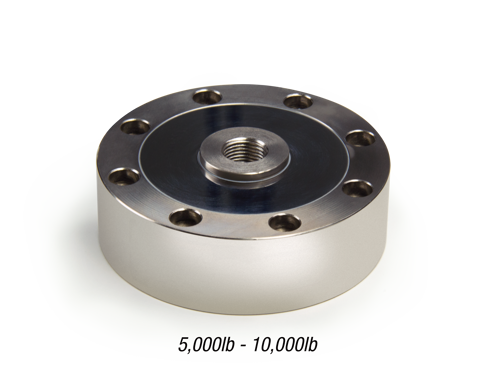

1 US Compression Celtronlcd Alloy8hole

Full Scale Output:
4.0 mV/V

Output Resistance:
5,000 to 50,000 lb: 350 (±3) ohm
100,000 lb: 700 (±5) ohm

Input Resistance:
5,000 to 50,000 lb: 385 (±5) ohm
100,000 lb: 770 (±70) ohm

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Operating: 0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Rated Excitation:
15 VDC

Nonlinearity:
0.05% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
2,000 megohm

Cable Length:
50 ft

Cable Diameter:
5,000 to 25,000 lb: 0.200 in
50,000 to 100,000 lb: 0.305 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
One-year limited

Approvals:
cFMus

Rated Capacity T R D D2 H H1 H2 T1 T2
lb/in
5,000* to 10,000* 5/8-18 UNF — 4.12 3.50 1.37 0.12 — 0.28 0.406 × 0.283 DP

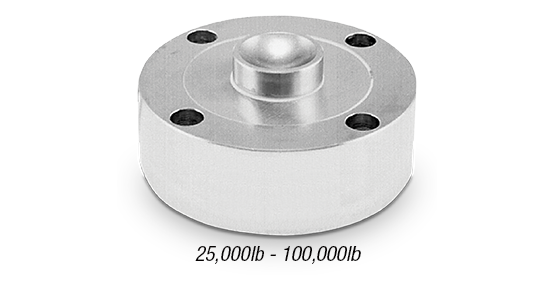

25,000 to 50,000 — 0.875 4.75 4.00 2.12 0.50 0.31 0.34 0.508 × 0.38 DP
100,000 — 0.875 5.43 4.60 2.25 0.25 0.31 0.41 0.626 × 0.4 DP
*5,000lb and 10,000lb models can be used in compression and tension load applications
Load Cup pn 33616 is required for compression applications on the 5,000lb and 10,000lb capacity load cells and is sold separately





Resources/Downloads

Title Download Email
Celtron LCD Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook F Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart/Quote
41966 Load Cell,CDK LCD-5k Celtron 50ft 4mV/V 350 Alloy Steel OHM WW C FM IP67

List Price: $775.00
41967 Load Cell,CDK LCD-10k Celtron 50ft 4mV/V 350 Alloy Steel OHM WW C FM IP67

List Price: $775.00
41968 Load Cell,CDK LCD-25k Celtron 50ft 4mV/V 350 Alloy Steel OHM WW C FM IP67

List Price: $975.00
41969 Load Cell,CDK LCD-50k Celtron 50ft 4mV/V 350 OHM Alloy Steel WW C FM IP67

List Price: $975.00
41970 Load Cell,CDK LCD-100k Celtron 50ft 4mV/V 350 Alloy Steel OHM WW C FM IP67

List Price: $1,125.00

Options

Part # Description List Price Cart/Quote
65841 Ball,Chrome Plated Steel Hardened Grade 24 1.25 Inch Diameter

List Price: $37.00
33616 Cup,Ball 1-5/16DIAx1-1/8

List Price: $37.00

Related Products

rl-RL90000-compression-disk-load-cell

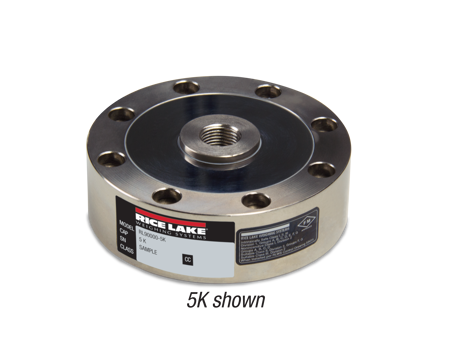

Rice Lake RL90000 Alloy Steel, Compression Disk Load Cell
