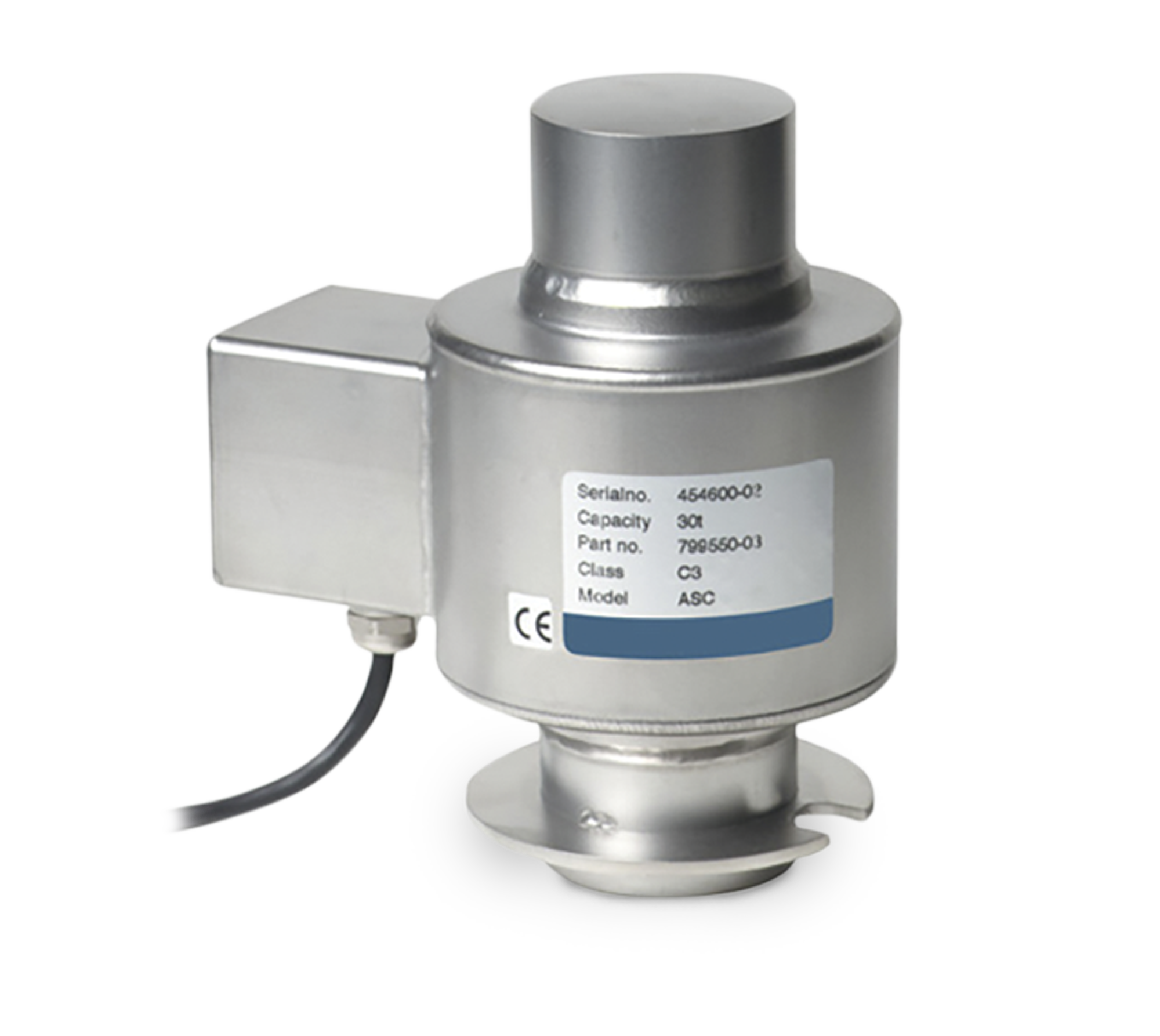

VPG® Revere ASC Stainless Steel, Compression Canister Load Cell

This is a stainless steel, hermetically sealed, single-column compression load cell. It has an IP68 rating with built-in surge protection to prevent damage. It's available in capacities ranging from 30 to 50 tons, is OIML approved and comes with 15 meters of cable.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

OIML Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65

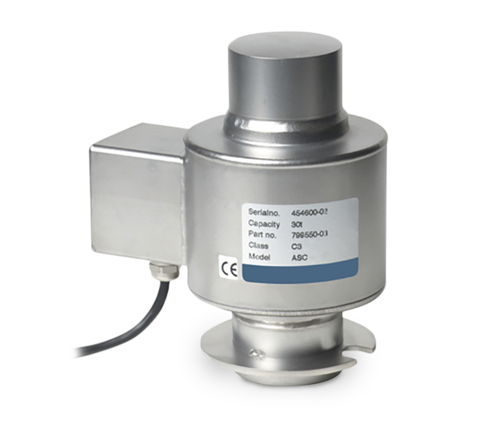

rl-VPG-Revere-ASC-compression-canister-load-cell

Full Scale Output:
2.00 (±0.02) mV/V

Output Resistance:
700 (±7) ohm

Input Resistance:
700 (±35) ohm

Material/Finish:
Stainless steel

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Hermetically sealed, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 20 VDC

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
15 m

Cable Diameter:
0.295 in
Polyurethane jacket

Cable Color Code:
Green +Excitation
Black -Excitation
White +Signal
Red -Signal

Warranty:
One-year limited

Approvals:
OIML
cFMus
Ex (Available upon request)

Rated Capacity A B C D E F
T/mm
30 to 50  150 70 40 87 69 R200





Resources/Downloads

Title Download Email
Revere ASC Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook F Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart/Quote
151312 Load Cell, CSR ASC-30t 30t 15ft RTI 2mv/v 700 Ohm EW SST WS IP66/68 OIML C3

List Price: $736.00
151313 Load Cell, CSR ASC-40t 40t 15ft RTI 2mv/v 700 Ohm EW SST WS IP66/68 OIML C3

List Price: $736.00
151314 Load Cell, CSR ASC-50t 50t 15ft RTI 2mv/v 700 Ohm EW SST WS IP66/68 OIML C3

List Price: $736.00

Options

Load Cup Set (Upper and Lower)

Part # Description List Price Cart/Quote
160452 Cups,Load Self-Aligning SST Upper and Lower Cup Set for VPG Revere ASC 30-60T Load Cell

List Price: $100.00
