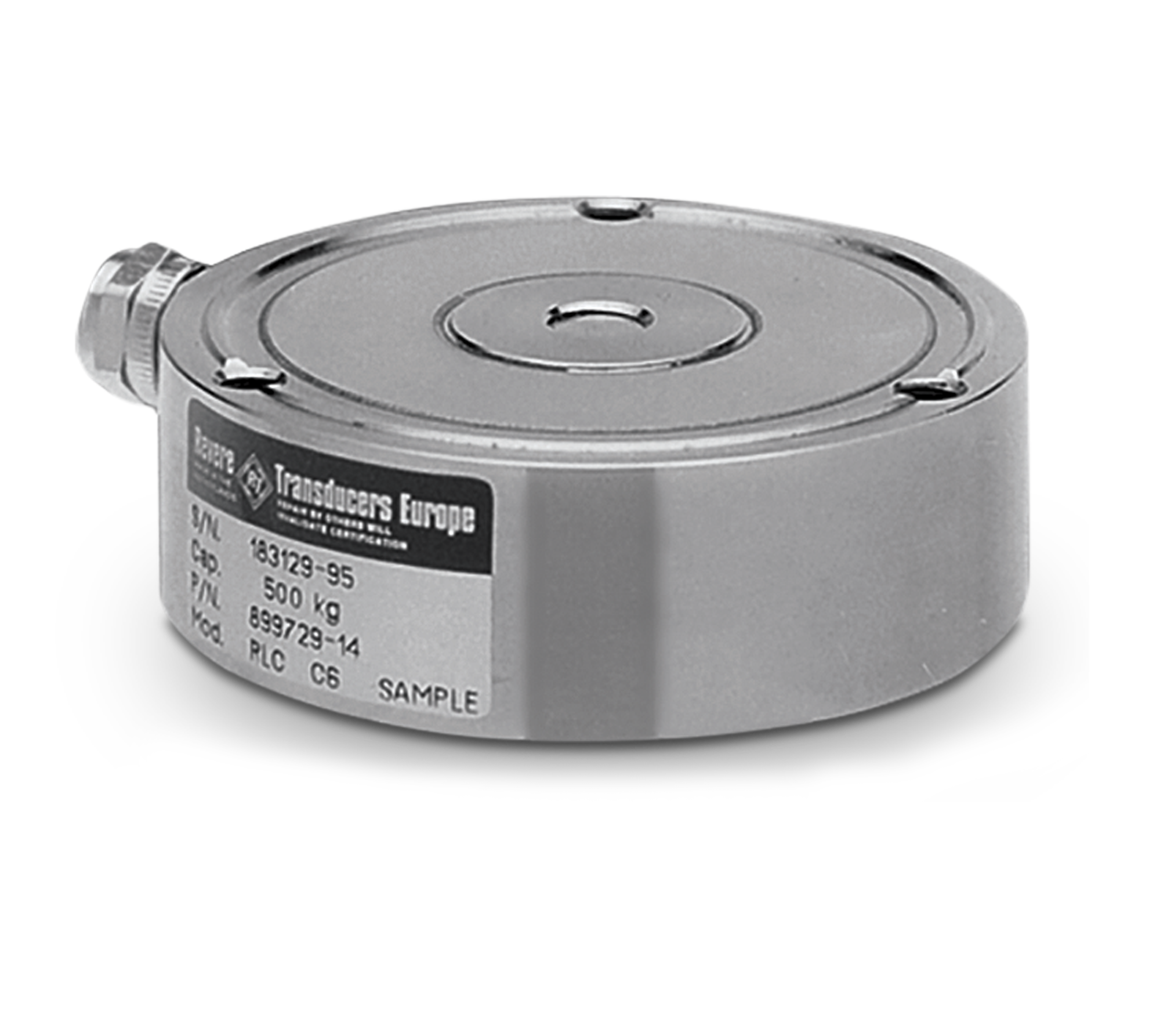

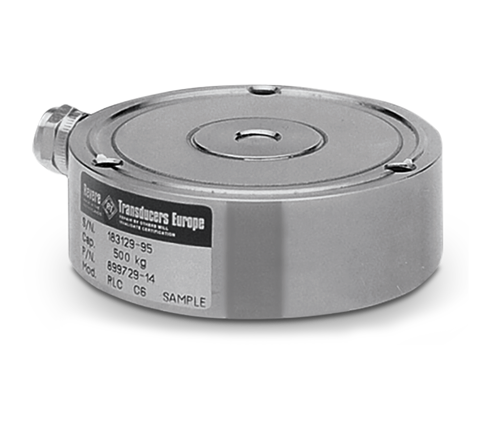

VPG® Revere RLC Stainless Steel, Compression Disk Load Cell

This is a low-profile, high-performance ring torsion-type load cell in stainless steel. This product is suitable for small and medium platform scales, as well as process weighing. It has a capacity range from 0.25 to 10 tons. Each unit comes with 5 meters of load cell cable.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo OIML LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65
rl-VPG-revere-RLC-compression-disk-load-cell

Full Scale Output:
2.0 mV/V

Output Resistance:
1,025 (± 25) ohm

Input Resistance:
1,110 (± 50) ohm

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Hermetically sealed, IP66/68

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Cable Length:
5 m

Cable Color Code:
Pink +Excitation
Gray -Excitation
Brown +Signal
White -Signal

Warranty:
One-year limited

Approvals:
NTEP
OIML
FM

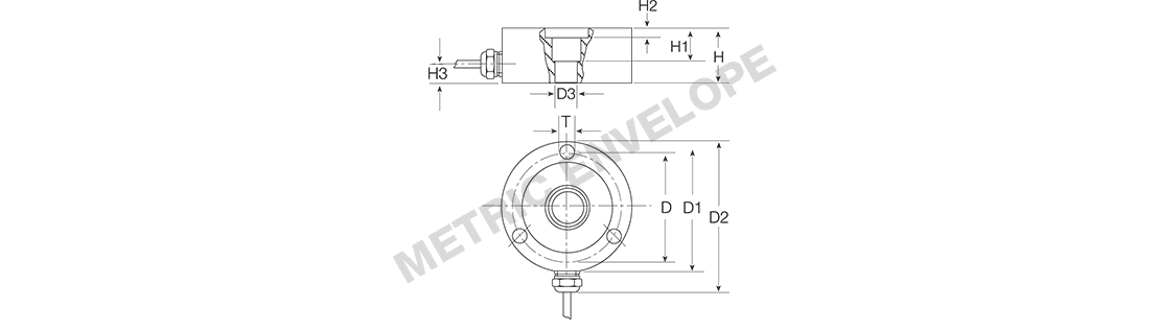

Rated Capacity D D1 D2 D3 H H1 H2 H3 T
T/in
0.25 to 1 2.76 3.15 3.84 0.40 0.99 0.60 0.04 0.37 M6 (3 x 120°)
3.5 to 5 2.76 3.15 3.84 0.60 1.18 0.79 0.24 0.33 M6 (3 x 120°)





Resources/Downloads

Title Download Email
Revere RLC Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook F Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

NTEP Certified

Part # Description List Price Cart/Quote
36194 Load Cell,CDK RLC-B10- 5.0t-5MP1 5000kg 5M RTI 2mV/V 1100 OHM SST HS IP66/68 NTEP IIIL 10 M

List Price: $742.00

OIML

Replacement Parts

Replacement parts can only be purchased through trained and authorized dealers. You must be logged in as a dealer to view any available replacement parts.

To locate a dealer in your area, please call us at 1-800-472-6703 or fill out a request online.
