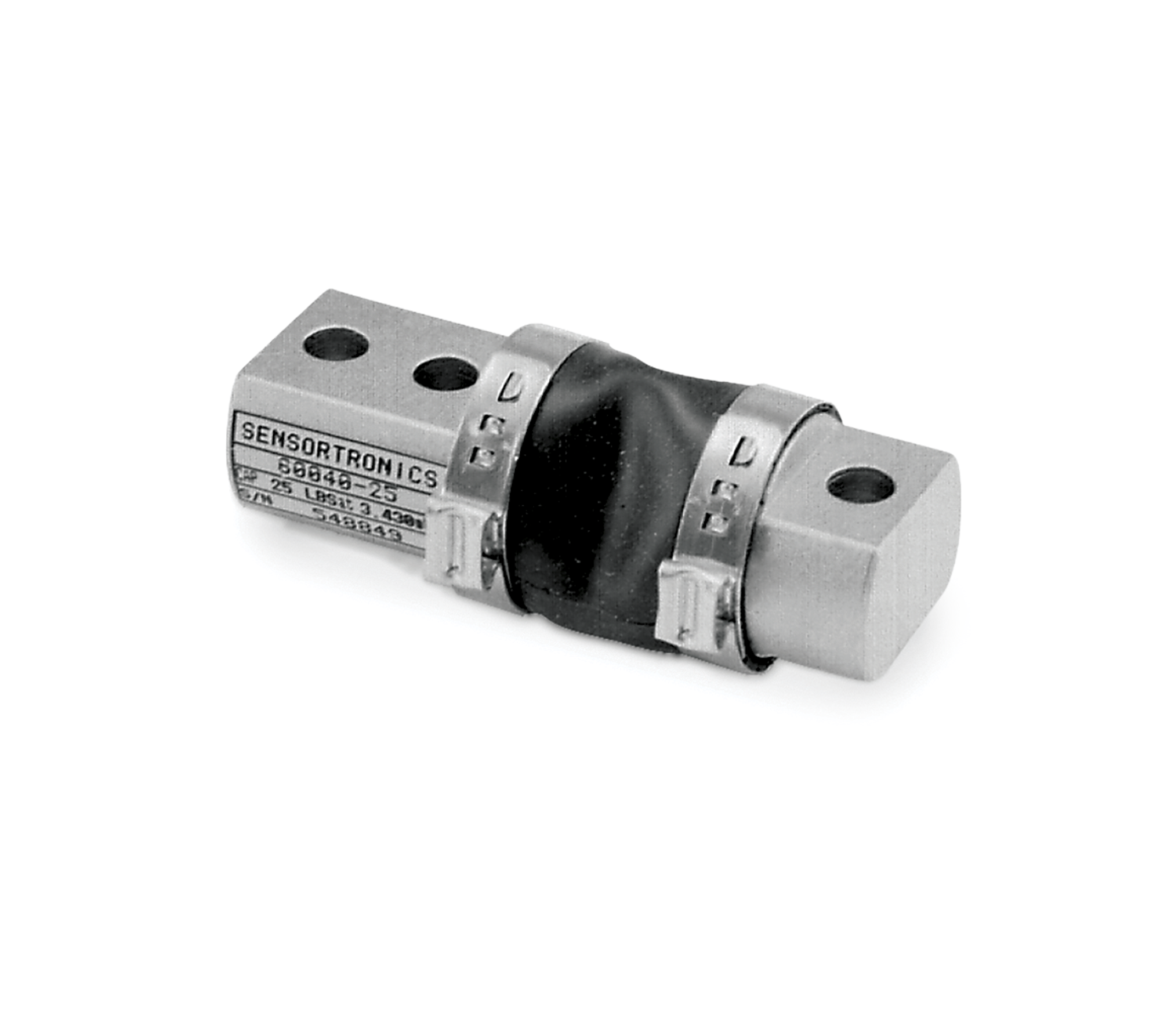

VPG® Sensortronics® 60040 Alloy Steel, Single-ended Beam Load Cell

Full Scale Output:
3.0 mV/V

Output Resistance:
349 to 355 ohms

Input Resistance:
380 to 450 ohms

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:

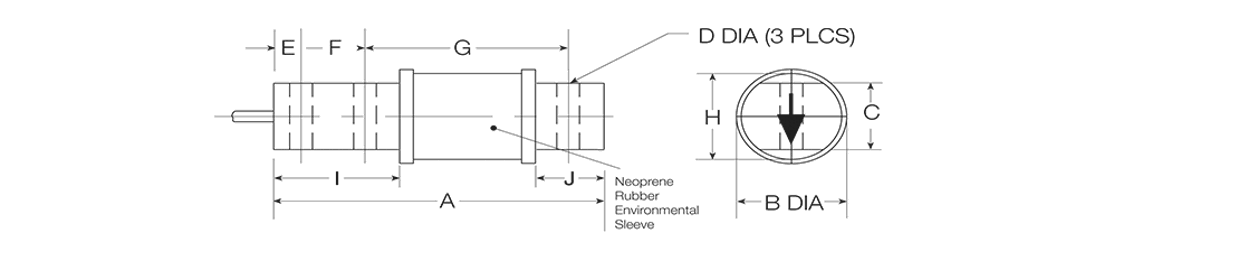

Environmentally sealed with a neoprene sleeve, IP65

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 V DC (15 V maximum)

Nonlinearity:
0.03% full scale

Hysteresis:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
25 to 50 lb: 0.008 in
75 to 100 lb: 0.010 in
150 lb: 0.012 in
250 lb: 0.016 in
500 lb: 0.025 in

Cable Length:
20 ft

Cable Diameter:
0.200 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
One-year limited

Approvals:
cFMus
