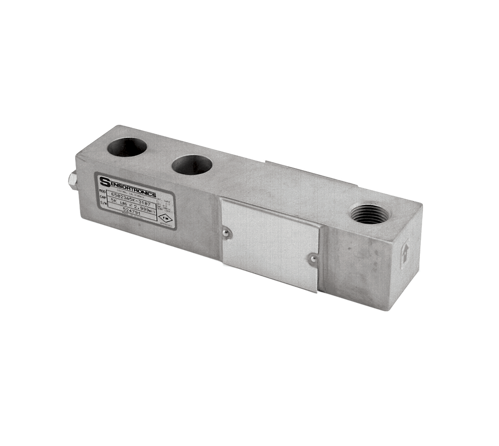

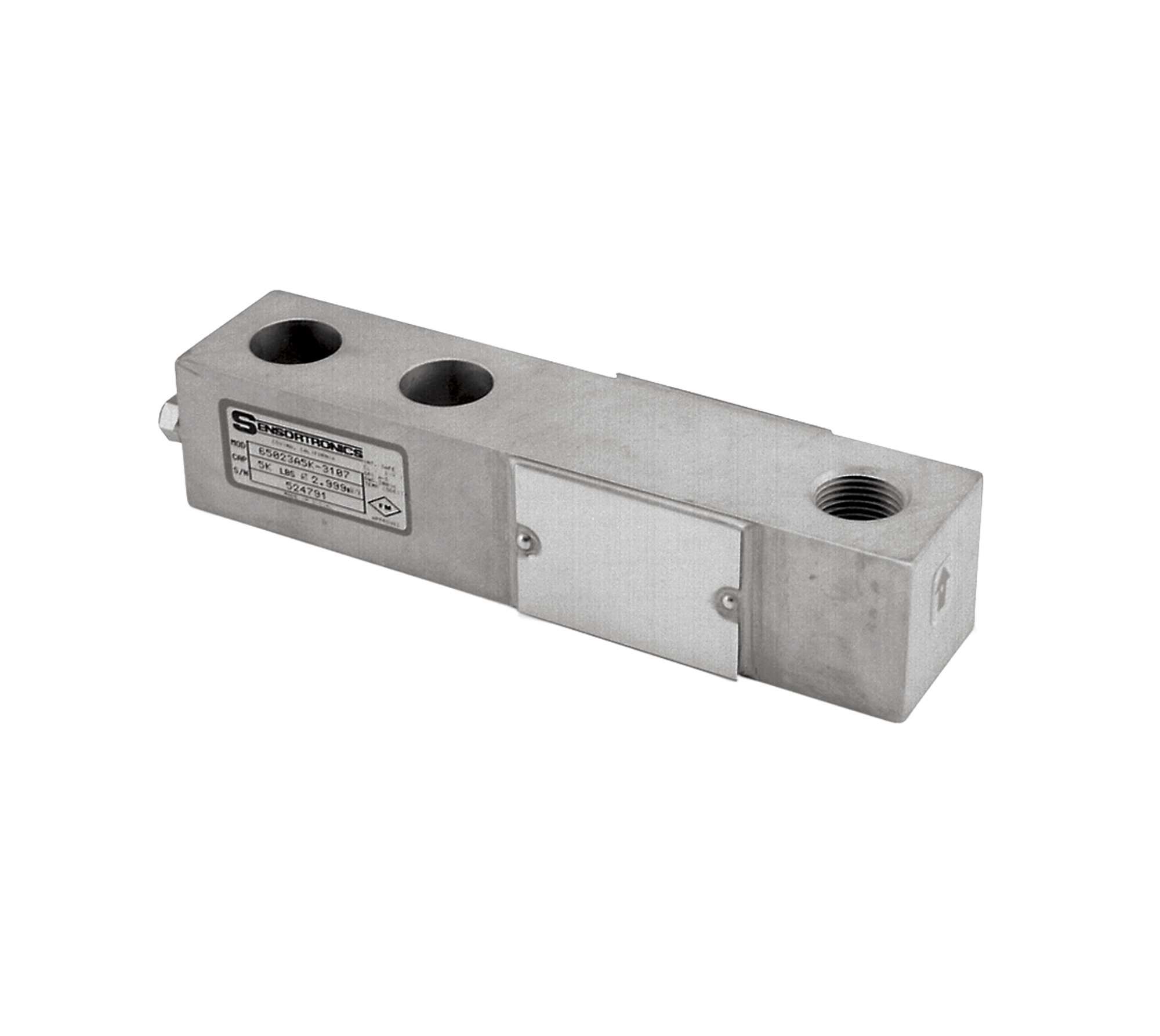

VPG® Sensortronics® 65023A-5107-10 Alloy Steel, Single-ended Beam Load Cell

Full Scale Output:
3.0 mV/V
mV/V/ohm calibrated

Output Resistance:
349 to 355 ohms

Input Resistance:
343 to 357 ohms

Material/Finish:
High-alloy steel, nickel plated

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP67

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 V

Combined Error:
0.02% full scale

Insulation Resistance:
5,000 megohm

Deflection at Capacity:
1,000 lb: 0.013 in
2,500 lb: 0.015 in

Cable Length:
10 ft

Cable Diameter:
0.200 in
Polyurethane jacket

Cable Color Code:
Red +Excitation
Black -Excitation
Green +Signal
White -Signal

Warranty:
One-year limited

Approvals:
NTEP
cFMus
