VPG® Tedea-Huntleigh® 120 Stainless Steel, Compression Canister Load Cell

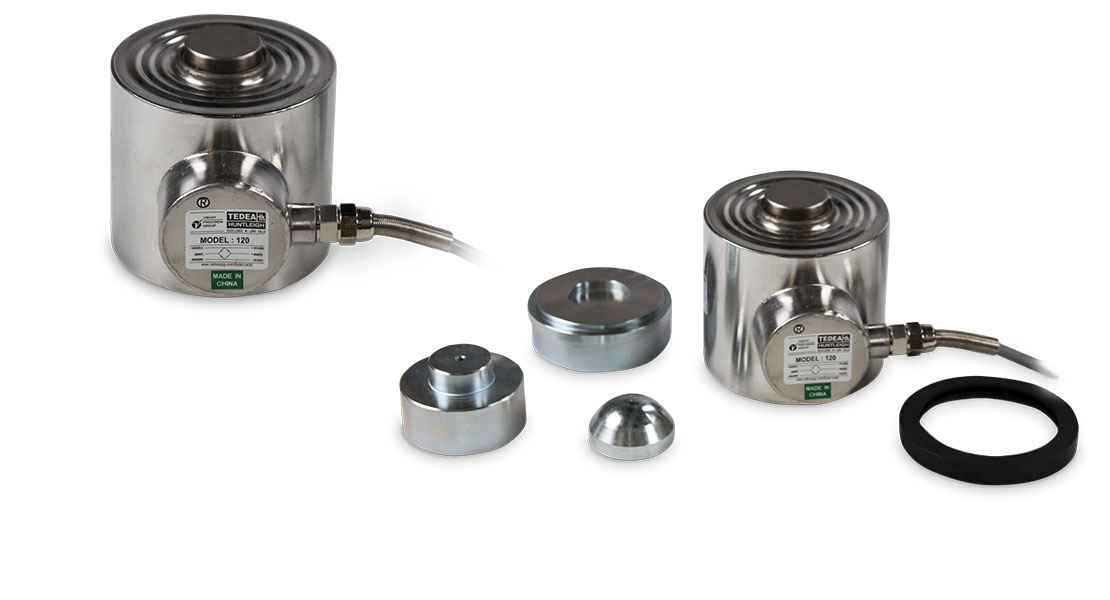

This is a stainless steel, welded seal compression canister that includes the load cup and load pin. It's offered in capacities of 20,000 to 50,000 kilograms and is equipped with 15 meters of cable.

Request More Information
Portals 0 Products Ffc2918059624b68a003f919d65385c3 Orig

Full Scale Output:
1.5 mV/V

Output Resistance:
605 (±5) ohms

Input Resistance:
670 (±15) ohms

Material/Finish:
Stainless steel

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP68

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC

Combined Error:
0.02% of applied load

Insulation Resistance:
2,000 megohm

Cable Length:
15 m

Cable Color Code:
Green +Excitation
Black -Excitation
Red +Signal
White -Signal
Blue +Sense
Brown -Sense

Warranty:
 One-year limited

Rated Capacity A B C D E F O R1 R2
kg/mm
20,000 138.3 112.3 72.3 50.0 32.3 69.0 88.0 15.0 150.0
30,000 138.3 112.3 72.3 50.0 32.3 69.0 88.0 15.0 150.0
50,000 155.5 115.8 74.0 50.0 32.3 69.0 88.0 35.0 300.0





Resources/Downloads

Title Download Email
Tedea 120 Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook F Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart/Quote
169233 Load Cell, CSR Tedea 120 20t 15m 1.5 mv/v 605 Ohm stainless steel IP68

List Price: $995.00
169234 Load Cell, CSR Tedea 120 30t 15m 1.5 mv/v 605 Ohm stainless steel IP68

List Price: $995.00
169235 Load Cell, CSR Tedea 120 50t 15m 1.5 mv/v 605 Ohm stainless steel IP68

List Price: $995.00
