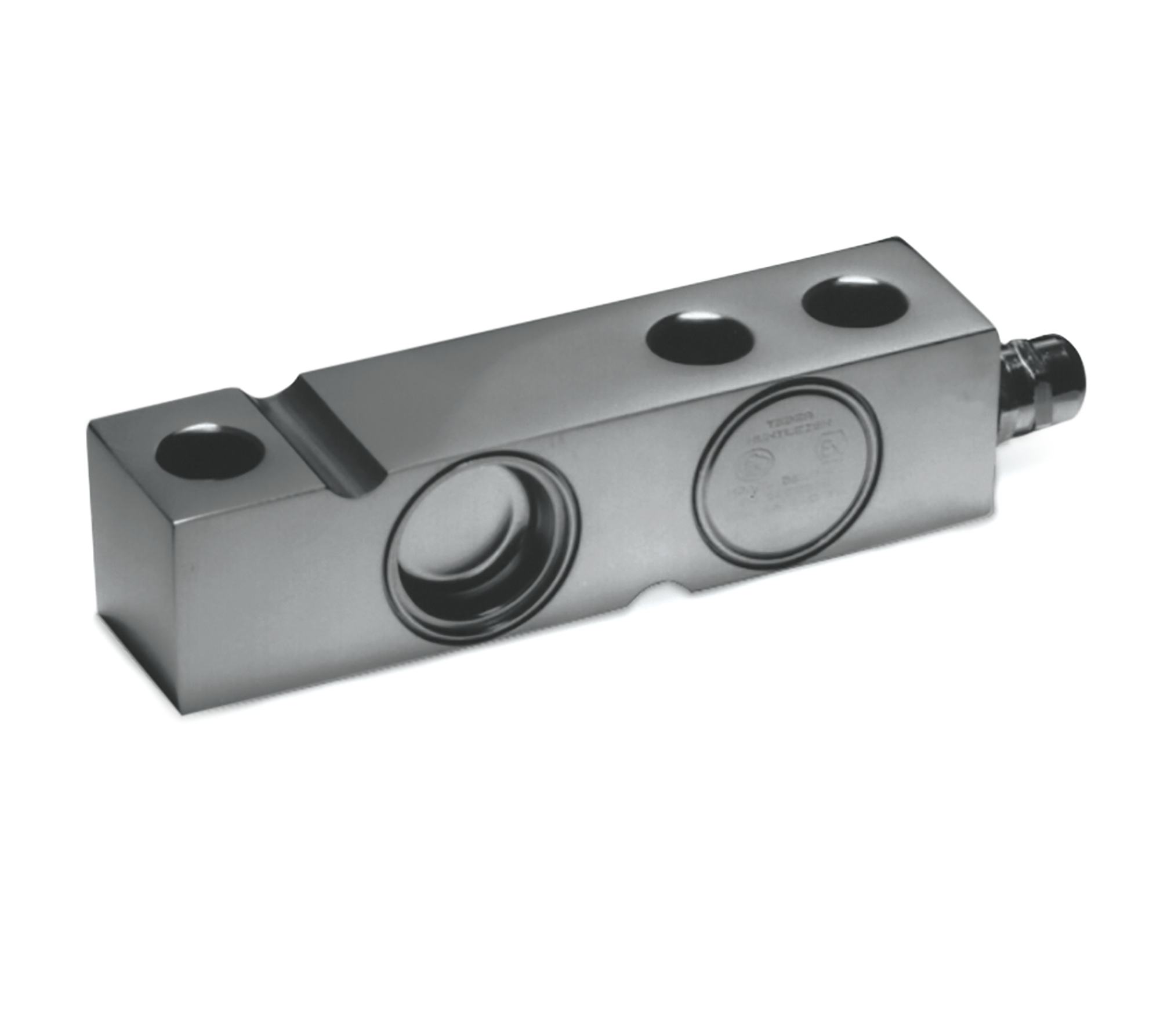

VPG® Tedea-Huntleigh® 3510-NTEP Stainless Steel, Single-ended Beam Load Cell

This welded-seal, highly accurate load cell is an ideal solution for low-profile platforms, weigh modules, tanks and silos. The hermetic sealing and polyurethane-shielded cable enables this load cell to function in harsh environments without risking reliability. It's available in capacities ranging from 1,000 to 4,000 pounds and is equipped with 16 feet of cable.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

NTEP Logo LOGO FM CUS

WARNING: Cancer and Reproductive Harm California Proposition 65
rl-VPG-Tedea-Huntleigh-3510-NTEP-load-cell

Full Scale Output:
3.0 mV/V

Output Resistance:
350 (± 3) ohms

Input Resistance:
415 (± 15) ohms

Material/Finish:
Stainless steel

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Welded seal, IP68

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
1,000 megohm

Deflection at Capacity:
0.015 in

Cable Length:
16 ft

Cable Diameter:
0.220 in
Polyurethane jacket

Cable Color Code:
Blue +Excitation
Black -Excitation
White +Signal
Red -Signal
Green +Sense
Gray -Sense

Warranty:
One-year limited

Approvals:
NTEP
cFMus

Rated Capacity C H H1 L L1 L2 L3 L4 L5 T W
lb/in
1,000 to 4,000 0.53 1.26 0.63 5.12 0.62 1.00 3.00 1.97 0.91 1/2-20 UNF 1.26





Resources/Downloads

Title Download Email
Tedea 3510-NTEP Load Cell Catalog Page Download Email

Title Version Revision Download Email Category Archived
Load Cell and Weigh Module Handbook F Download Email Load Cells|Weigh Modules No

Title Collateral Wizard Request Download Email Category
Load Cell and Weigh Module Selection Guide Request Download Email Load Cells|Weigh Modules

Title Download Email Category
Choosing Load Cells for Tough Applications Download Email Load Cells

Parts

Part # Description List Price Cart/Quote
36458 Load Cell,SEB 3510-1000lb 1000lb 16.4ft TH 3.0 mV/V 350 OHMS FM NTEP SST WS IP68

List Price: $675.00
36459 Load Cell,SEB 3510-1.5K 1,500 lb 16.4 ft TH 3.0 mV/V 350 OHMS FM NTEP SST WS

List Price: $675.00
36460 Load Cell,SEB 3510-250010 1 2,500 lb 16.4 ft TH 3.0 mV/V 350 OHMS FM NTEP SST WS IP68

List Price: $675.00
36461 Load Cell,SEB 3510-400010 1 4,000 lb 16.4 ft TH 3.0 mV/V 350 OHMS FM NTEP SST WS IP68

List Price: $675.00
