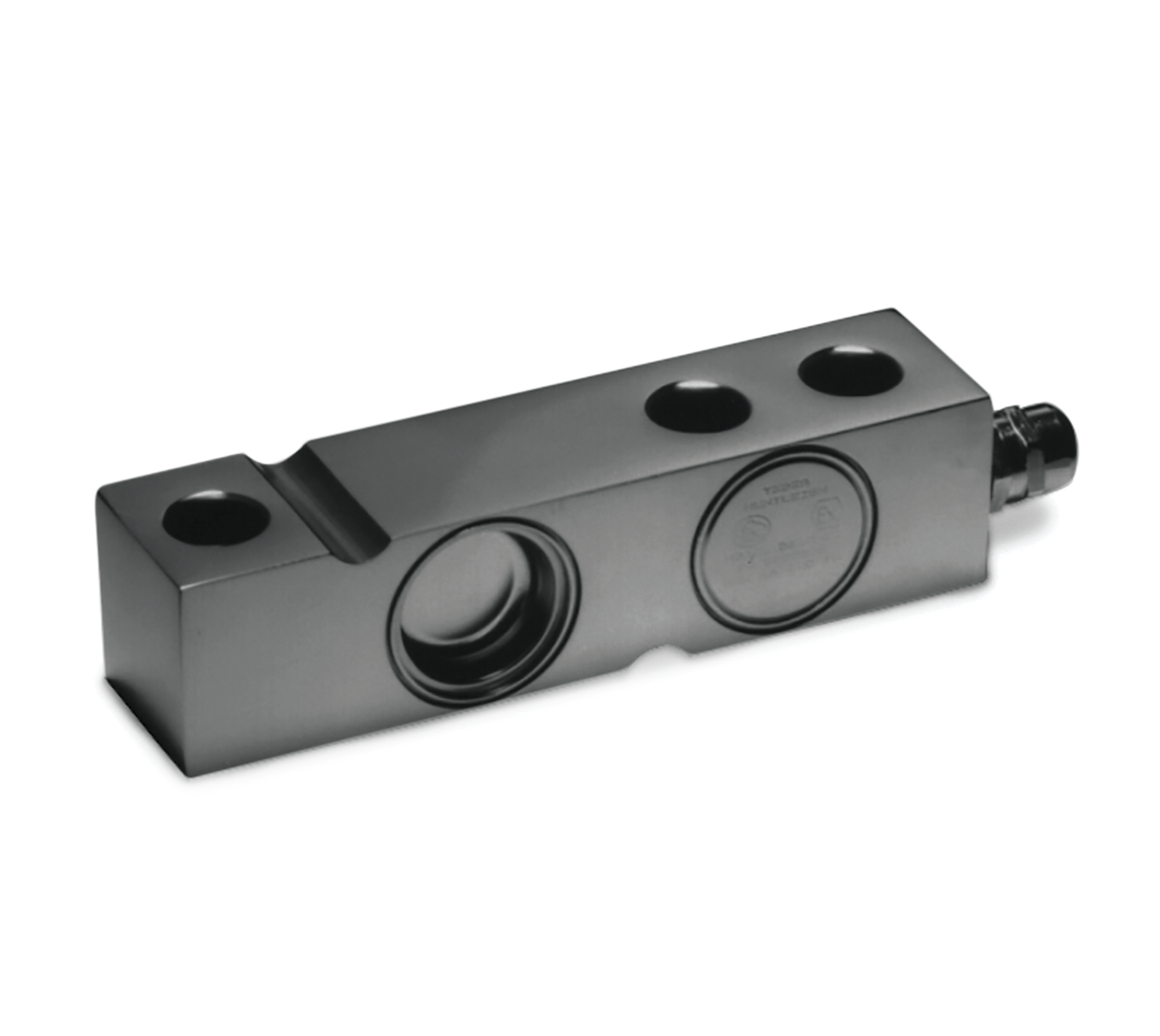

VPG® Tedea-Huntleigh® 3510-OIML Stainless Steel, Single-ended Beam Load Cell

This is an OIML approved single-ended beam with 6,000 divisions. It features a low profile, welded sealing and high accuracy to be ideally suited for low-profile platforms, weigh modules, tanks and silos. The polyurethane-shielded cable enables function in harsh environments while maintaining its operating specifications. Units are complete with 5 meters of load cell cable and available in 500 to 5,000-kilogram capacities.

Request More Information

Approvals

Some approval documents are available to view by clicking the icons below.

WARNING: Cancer and Reproductive Harm California Proposition 65

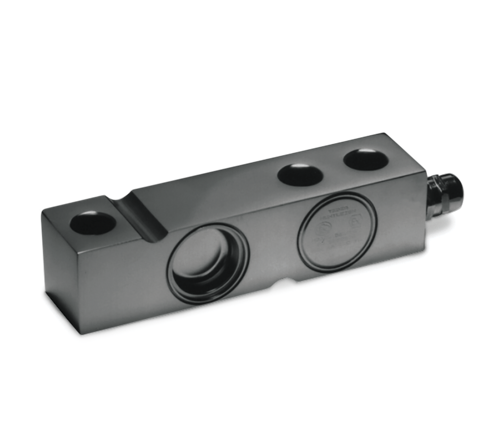

rl-VPG-Tedea-Huntleigh-3510-OIML-load-cell

HD View

3510-OIML Load Cell Specifications

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohms

Input Resistance:
380 (± 10) ohms

Material/Finish:
Stainless steel

Temperature:
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Welded seal, IP68

Safe Overload:
150% full scale

Safe Sideload:
100% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
2,000 megohm

Deflection at Capacity:
0.015 in

Cable Length:
5 m

Cable Diameter:
5.5 mm
Polyurethane jacket

Cable Color Code:
Blue +Excitation
Black -Excitation
White +Signal
Red -Signal
Green +Sense
Gray -Sense

Warranty:
One-year limited

Approvals:
OIML
cFMus
Ex (Available upon request)

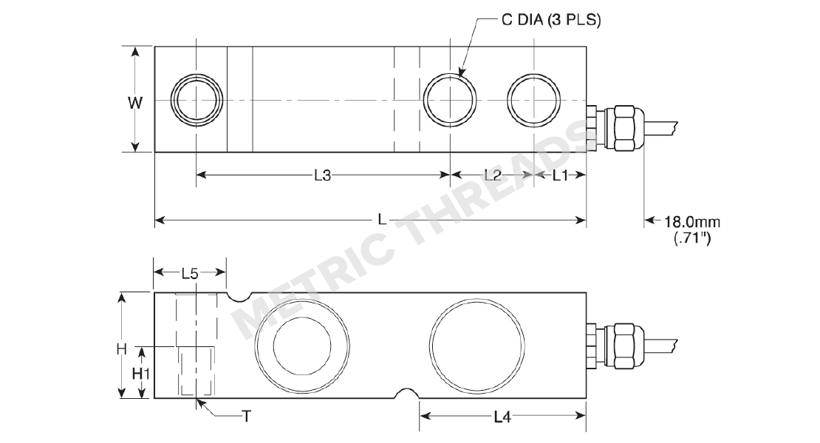

3510-OIML Load Cell Dimensions

Rated Capacity	C	H	H1	L	L1	L2	L3	L4	L5	T	W
kg/mm
500 to 2,000	13.5	32.0	16.0	130.0	15.8	25.4	76.2	50.5	23.5	M12 x 1.75 Thrd.	32.0
5,000	20.5	48.0	—	171.5	19.0	38.1	95.3	70.0	37.0	—	36.5

Resources/Downloads

Catalogs

Title	Download	Email
Tedea 3510-OIML Load Cell Catalog Page	Download	Email

Manuals

Title	Version	Revision	Download	Email	Category	Archived
Load Cell and Weigh Module Handbook		F	Download	Email	Load Cells\|Weigh Modules	No

Sales Literature

Title	Collateral Wizard	Request	Download	Email	Category
Load Cell and Weigh Module Selection Guide		Request	Download	Email	Load Cells\|Weigh Modules

White Papers

Title	Download	Email	Category
Choosing Load Cells for Tough Applications	Download	Email	Load Cells

Parts

Part #	Description	List Price	Cart/Quote
30161	Load Cell,SEB 3510-500KG 500KG 5m TH 2mV/V 350 OHM OIML C3 SST WS IP68 FM	List Price: $675.00	View
30162	Load Cell,SEB 3510-1000KG 1000KG 5m TH 2mV/V 350 OHM OIML C3 SST WS IP68 FM	List Price: $675.00	View
30163	Load Cell,SEB 3510-2000KG 2000KG 5m TH 2mV/V 350 OHM OIML C3 SST WS IP68 FM	List Price: $675.00	View
30164	Load Cell,SEB 3510-5000KG 5000KG 5m TH 2mV/V 50 OHM OIML C3 SST WS IP68 FM	List Price: $675.00	View
