Clevis Mount Assemblies

  • Mild steel or stainless steel

  • Used in the ITCM hardware assembly

  • Adapts rod to rod end ball joint

  • Provides electrical isolation for load cell protection

  • Eliminates unwanted side loads

Request More Information

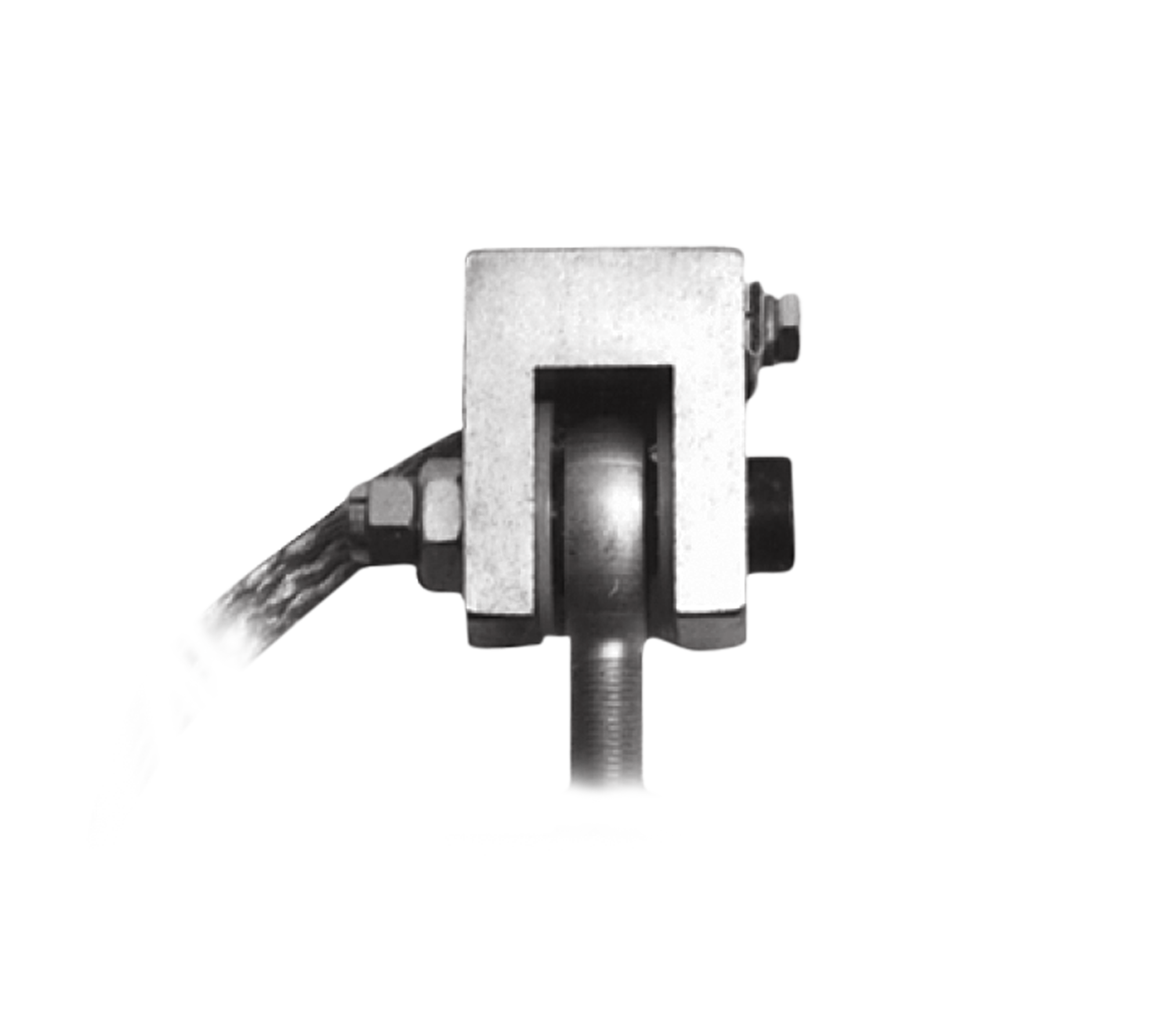

Portals 0 Products Be14838b3c88468291bdc41f28d54940 Orig

Part # A B C D Thread Size Safe Load*
Mild Steel with Bolt
17792 0.52 in 2.38 in 1.94 in 0.38 in 3/8-16 UNC 300 lb
17793 0.52 in 2.38 in 1.94 in 0.38 in 1/2-13 UNC 300 lb
17783 0.39 in 1.81 in 1.69 in 0.25 in 1/2-13 UNC 500 lb
17784 0.65 in 2.68 in 2.31 in 0.50 in 3/4-10 UNC 4,000 lb
17785 0.78 in 3.37 in 3.00 in 0.62 in 1-8 UNC 10,000 lb
17786 0.39 in 1.81 in 1.69 in 0.25 in 3/8-16 UNC 500 lb
17787 0.65 in 2.68 in 2.31 in 0.50 in 1/2-13 UNC 2,000 lb
17788 0.65 in 2.68 in 2.31 in 0.50 in 5/8-11 UNC 2,500 lb
17789 0.78 in 3.37 in 3.00 in 0.62 in 3/4-10 UNC 5,000 lb

Mild Steel with Pin
17790 1.39 in 4.12 in 4.50 in 1.00 in 1 1/4-7 UNC 15,000 lb
17791 1.22 in 4.12 in 5.00 in 1.25 in 1 1/2-6 UNC 20,000 lb

Stainless Steel with Pin
33644 0.52 in 2.38 in 1.94 in 0.38 in 1/2-13 UNC 300 lb
33643 0.39 in 1.81 in 1.69 in 0.25 in 1/2-13 UNC 500 lb
33641 0.39 in 1.81 in 1.69 in 0.25 in 3/8-16 UNC 500 lb
33658 0.52 in 2.38 in 1.94 in 0.38 in 3/8-16 UNC 500 lb
33642 0.65 in 2.68 in 2.31 in 0.50 in 3/4-10 UNC 4,000 lb
33640 0.65 in 2.68 in 2.31 in 0.50 in 1/2-13 UNC 2,000 lb
33639 0.65 in 2.68 in 2.31 in 0.50 in 5/8-11 UNC 2,500 lb
33638 0.78 in 3.37 in 3.00 in 0.62 in 3/4-10 UNC 5,000 lb
*Do not exceed the safe load
