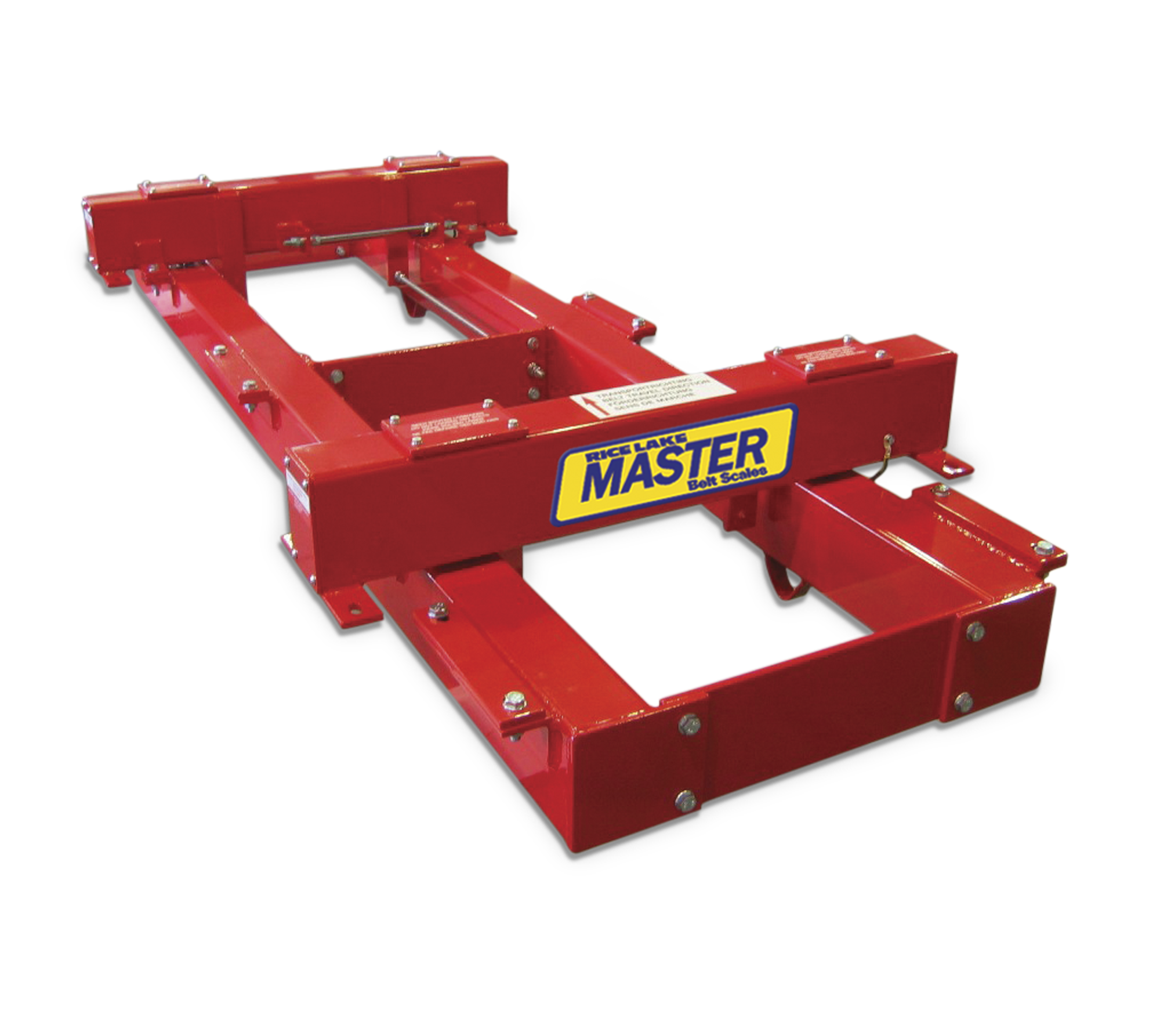

Master™ 14X Belt Scale Weigh Frame

  • Custom built for each application
  • Fits standard conveyors
  • Multiple idler design
  • Inner frame has free-floating platform

Options

  • 304 stainless steel
  • Two, three or four weigh idlers
  • Customer lifting weights available upon request

Applications

  • Medium to heavy capacity, mining and aggregate



Request More Information
1 EU Master BS14X Application CMYK

14X Master Belt Scale Weigh Frame

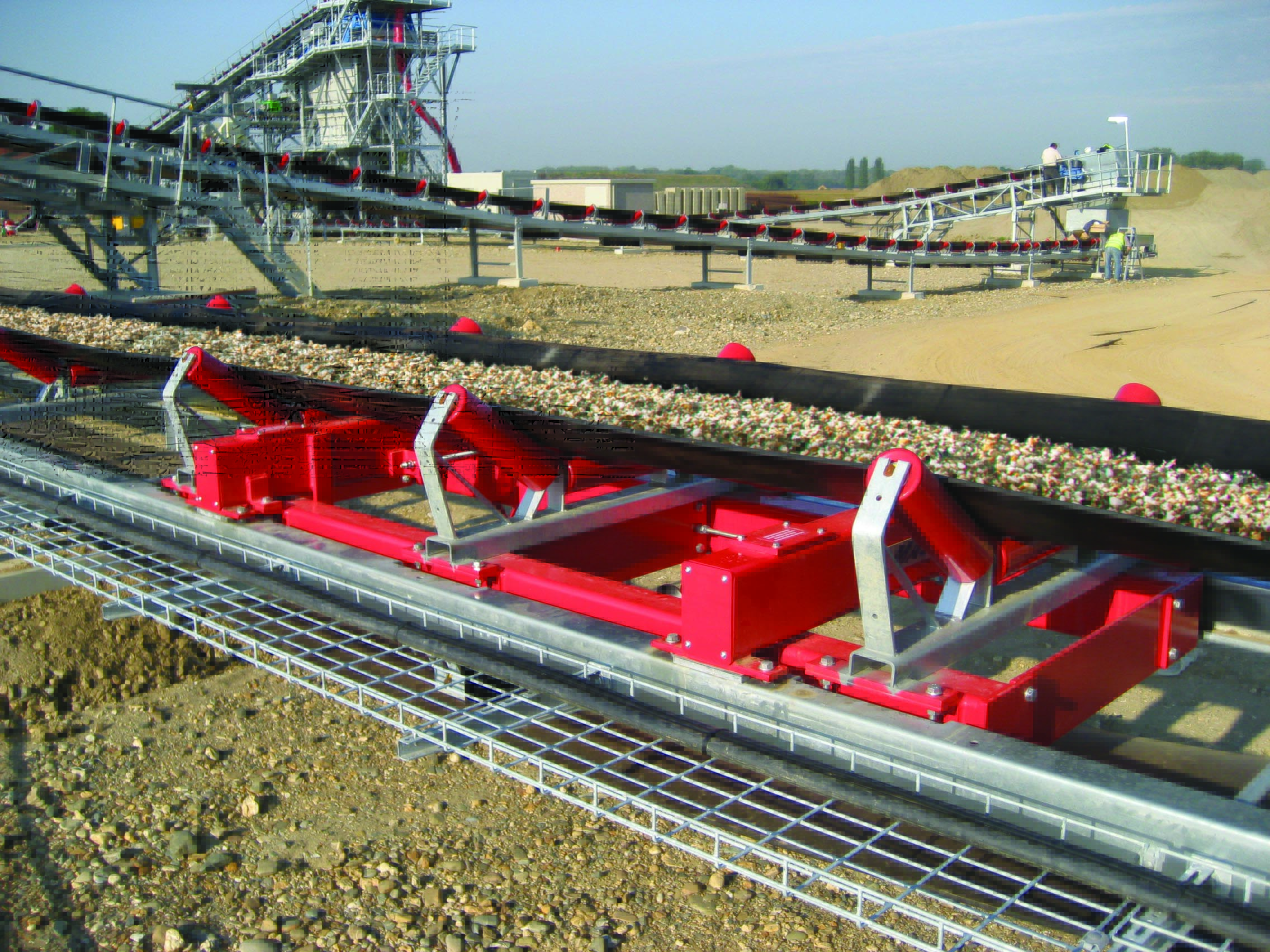

Weigh three idlers on an inner frame, supported by four load cells with the 14X Master belt scale weigh frame. This creates an incredibly accurate belt scale qualified for high capacities and belt speeds. The 14X is often used in mining and aggregate applications. The frame is custom-made using the specifications of the conveyor belt, making it suitable for different belt conveyor models.

Conveyor Width:
20 to 120 in (500 to 3,000 mm)

Capacity:
20,000 t per hour

Belt Speed:
1,400 ft per minute (7 m per second)

Inclination:
25°

Material:
Powder coated mild steel

Accuracy Guidelines:
0.25%

Load Cell:
RL20001 alloy steel S-beam
(capacity selected from application)

Warranty:
One-year limited
