Master™ 221DB Belt Scale Weigh Frame

  • Weigh frame is mounted on the outside of conveyor
  • Minimal modifications to conveyor are required
  • Service friendly
  • Friction-free pivot supports
  • Two support beams
  • Fits standard conveyors
  • Mounts with four bolts

Options

  • Galvanized or stainless construction

Applications

  • Medium to heavy capacity
Request More Information
BS221DB

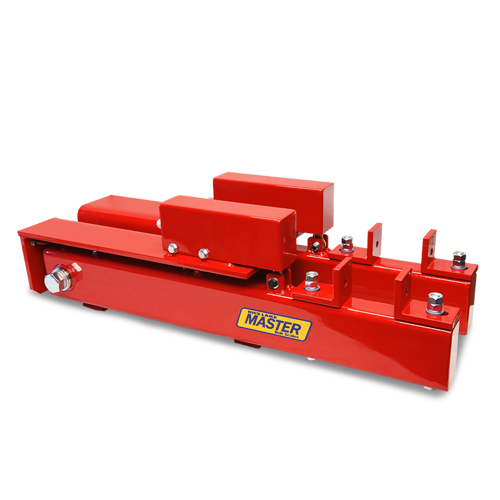

221DB Master Belt Scale Weigh Frame

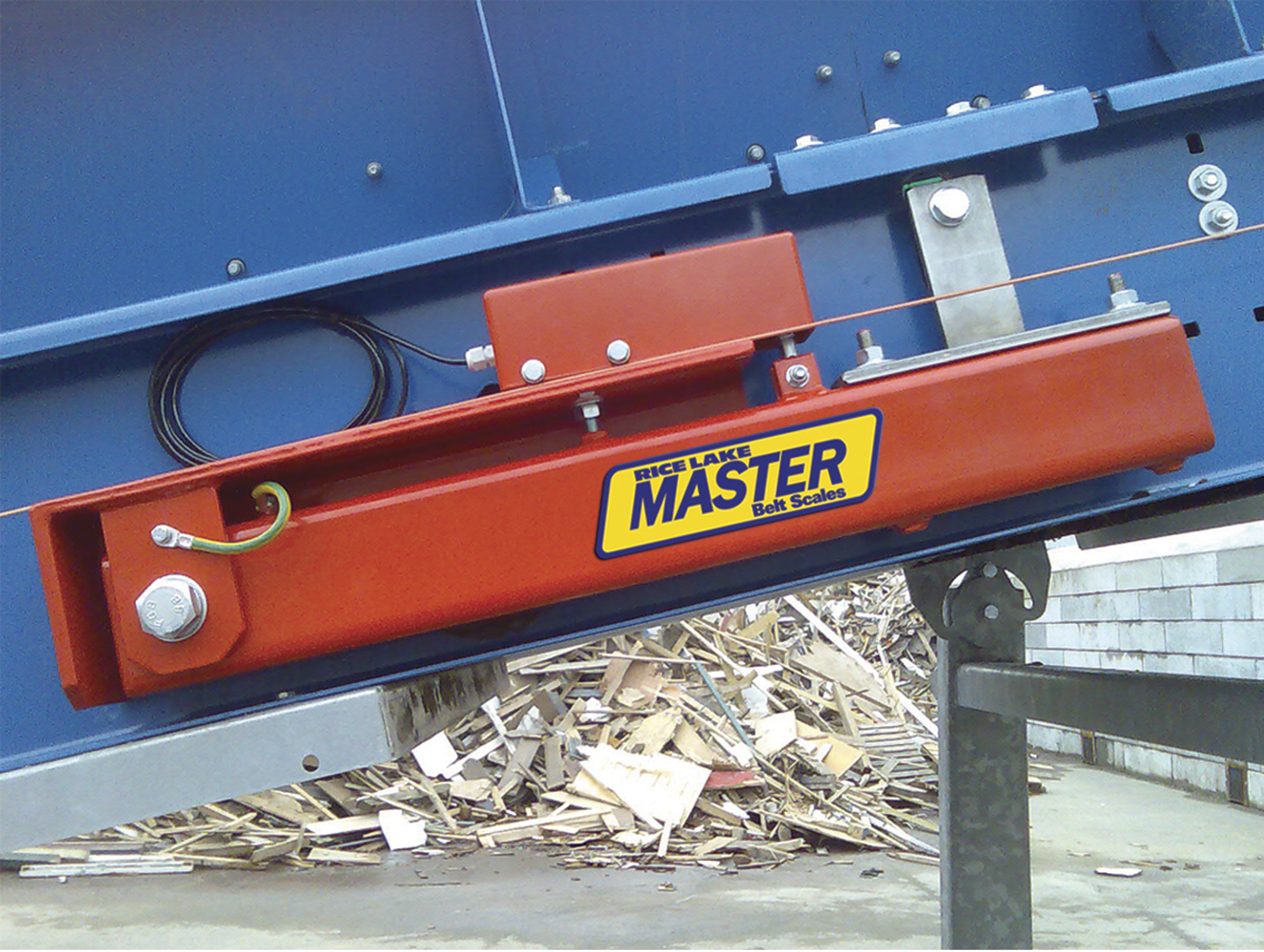

The 221DB Master™ belt scale weigh frame consists of two arms equipped with a pivot and a load cell mounted to the side supports of the conveyor belt. The idler, or weighing roller, is mounted on top of the frame arms. The 221DB provides simple assembly and accessibility for service. Suitable for most belt widths and capacities, the 221DB is a versatile solution for many applications.

Conveyor Width:
18 to 72 in
(457 to 1,829 mm)

Capacity:
3,300 t per hour

Maximum Belt Speed:
600 ft per minute (3 m per second)

Inclination:
Maximum 25°

Material:
Powder coated mild steel

Accuracy System:
0.5 to 1%

Load Cell:
RL9018SS-50, 100  or 200 kg

Junction Box:
JB4SS

Warranty:
One-year limited

Resources/Downloads

Title Download Email
Master 221DB Belt Scales Catalog Page Download Email

Title Version Revision Download Email Category Archived
Belt Scale Reference Guide Download Email Belt Scale Components|Belt Scale Weigh Frames No
Master 221DB Belt Scale Weigh Frame Installation Manual G Download Email Belt Scale Components|Belt Scale Weigh Frames|Conveyor Belt Scales No

Title Download Email
Belt Scale Application Questionnaire Download Email

Title Collateral Wizard Request Download Email Category
Belt Scales In-motion Scale Solutions Request Download Email Belt Scale Weigh Frames|Bulk Indicators/Controllers
Master 221DB Belt Scale Download Email Belt Scale Weigh Frames|Conveyor Belt Scales
Belt Scale Buyer's Guide Request Download Email Belt Scale Weigh Frames|Conveyor Belt Scales|Belt Scale Components
Optimize Aggregate Processing Request Download Email Truck Scales|Belt Scale Weigh Frames|Axle Scales

Parts

Part # Description List Price Cart/Quote
202593 221DB SST Belt Scale with 200Kg Load Cells

List Price: $4,595.00
202592 221DB SST Belt Scale with 100Kg Load Cells

List Price: $4,595.00
202591 221DB SST Belt Scale with 50Kg Load Cells

List Price: $4,595.00
163294 221DB Belt Scale with 200Kg Load Cells

List Price: $2,995.00
163293 221DB Belt Scale with 100Kg Load Cells

List Price: $2,995.00
163292 221DB Belt Scale with 50Kg Load Cells

List Price: $2,995.00
