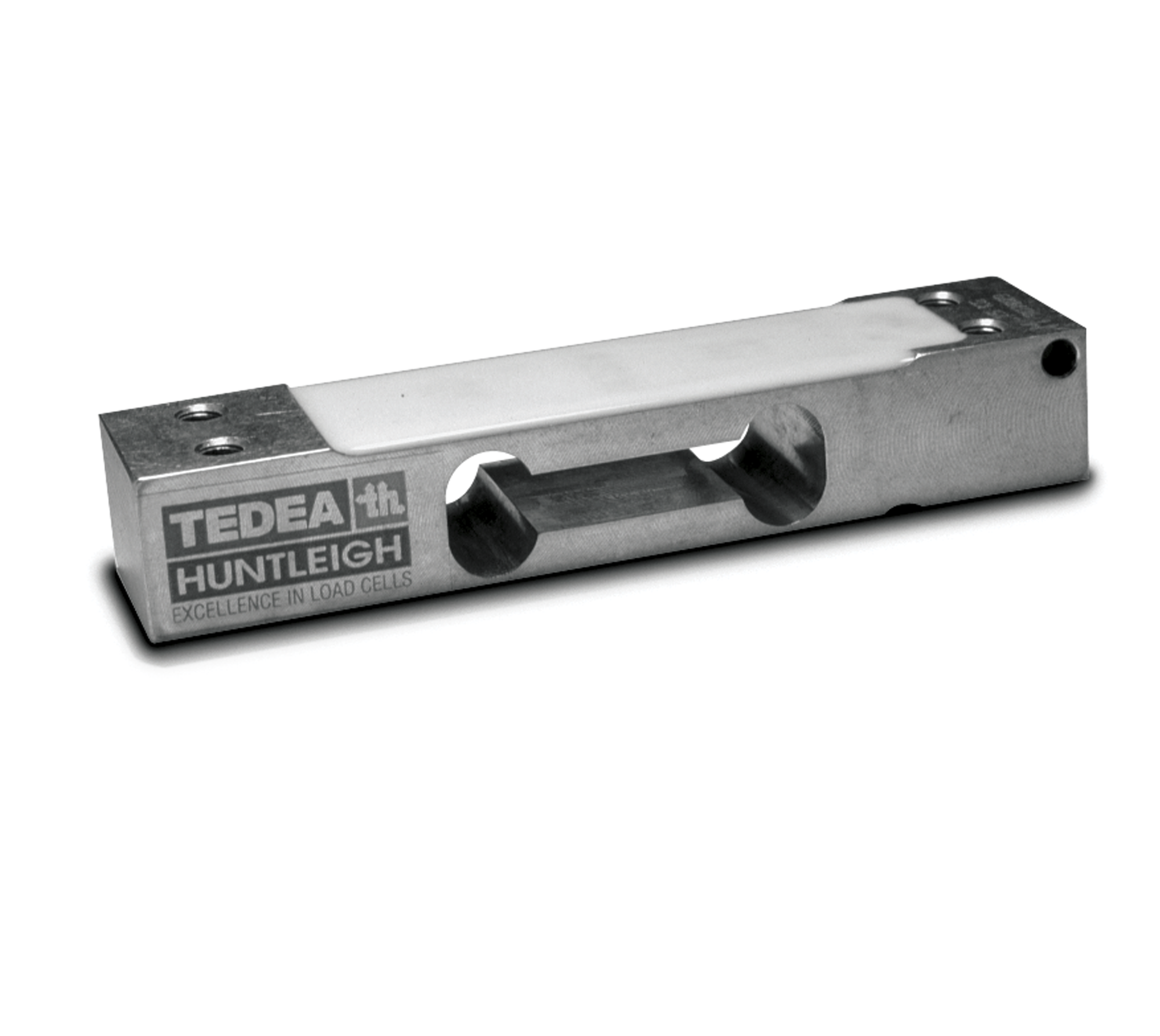

VPG® Tedea-Huntleigh® 1022 Aluminum, Single Point Load Cell

Full Scale Output:
2.0 mV/V

Output Resistance:
350 (± 3) ohms

Input Resistance:
415 (± 15) ohms

Material/Finish:
Anodized aluminum

Temperature:
Compensated:
14 to 104 °F (-10 to 40 °C)
Operating:
0 to 150 °F (-18 to 65 °C)

Seal Type:
Environmentally sealed, IP66

Safe Overload:
150% full scale

Rated Excitation:
5 to 10 VDC (15 V maximum)

Combined Error:
0.02% full scale

Insulation Resistance:
2,000 megohm

Deflection at Capacity:
0.3 to 0.5 mm

Cable Length:
3 m
0.5 m

Cable Diameter:
3.5 mm
PVC jacket

Cable Color Code:
Green +Excitation
Black -Excitation
Red +Signal
White -Signal

Max Platform Size:
0.35 × 0.35 mm

Warranty:
One-year limited

Approvals:
NTEP
OIML
cFMus
Ex (Available upon request)
